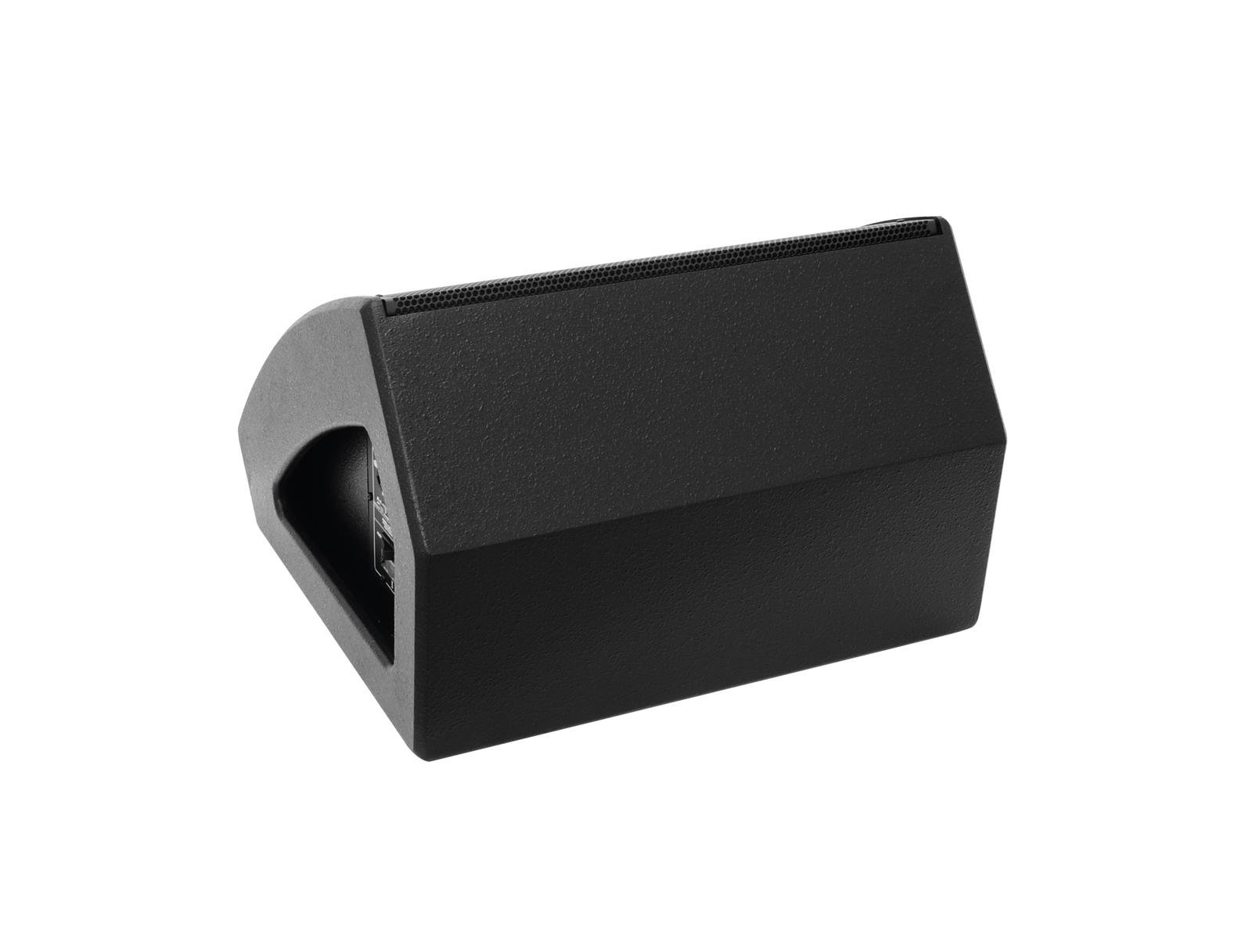

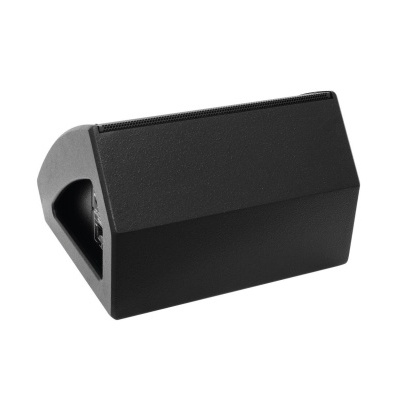

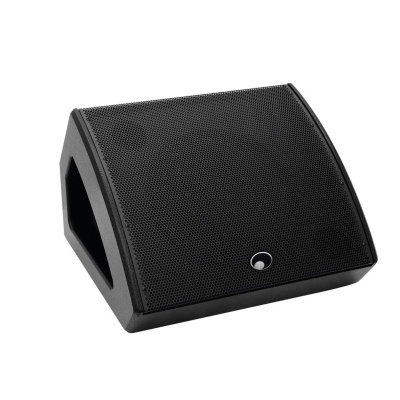

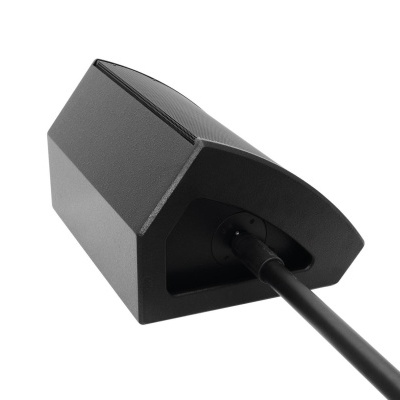

OMNITRONIC KM-112A Active Stage Monitor, coaxial
SKU: 11038036
Monitor, 12" woofer, 1.35" driver, LF: 250 W RMS, HF: 50 W RMS
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 30 cm bass speaker (12") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL
- Line input (XLR/6.3 mm jack)
- Low cut, volume control
- Black metal grille

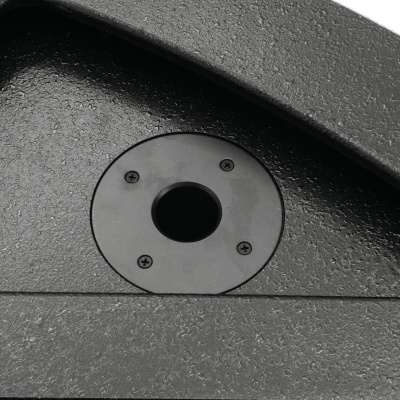

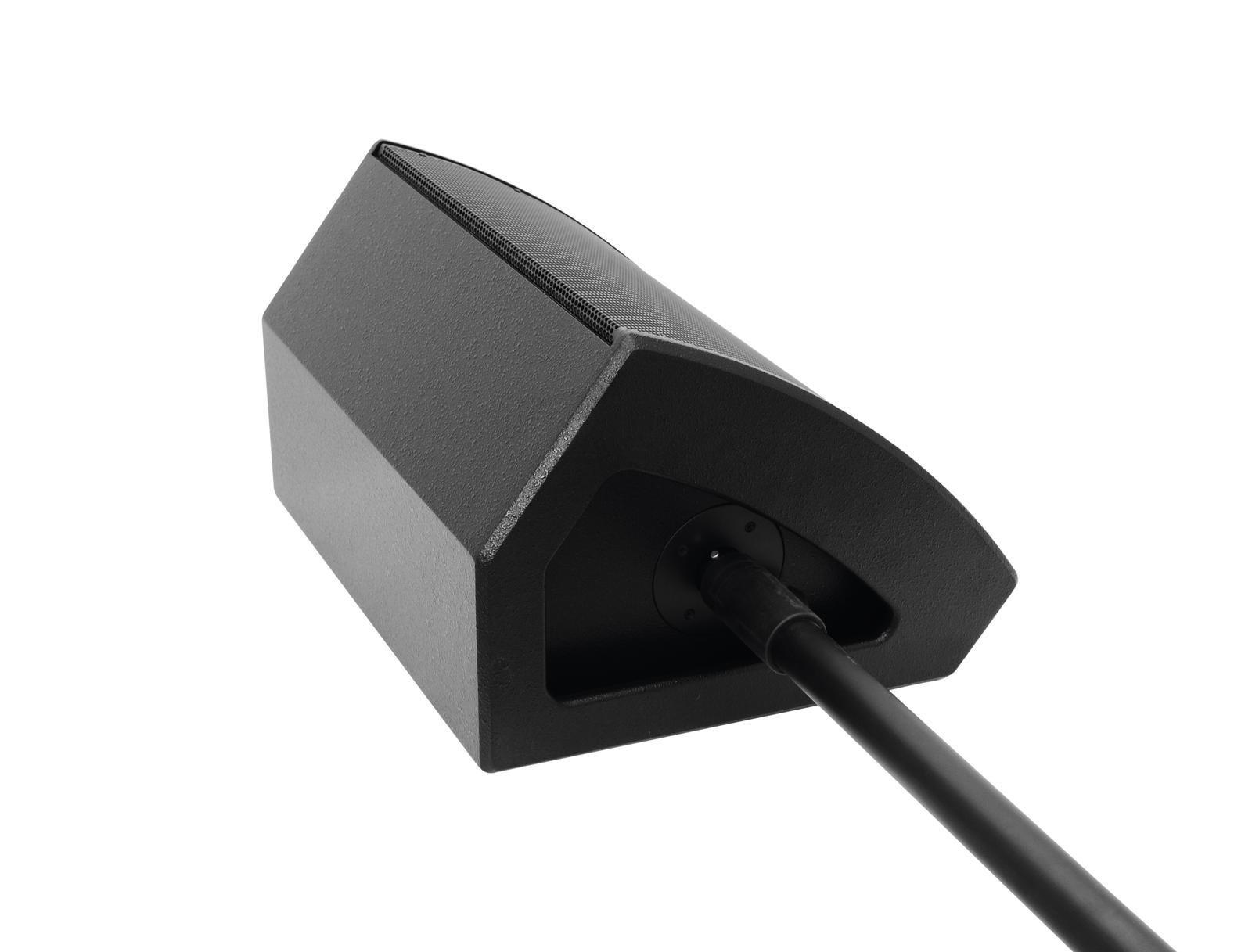

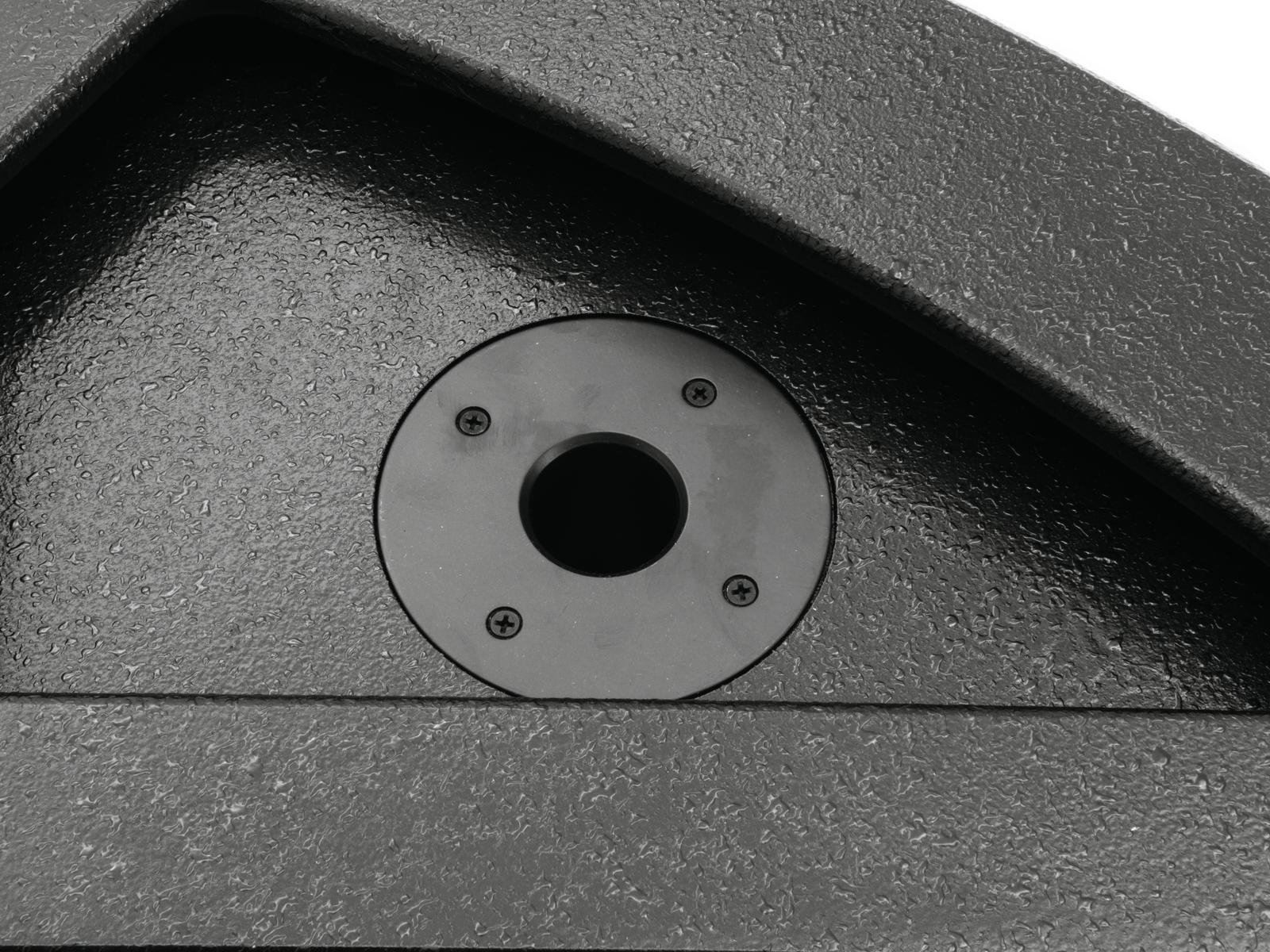

- Application possibility: Standing; monitoring; on tripod
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x power cord
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 180 W 1/8 power |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: | Program: 500W Rated: 50W RMS HF Rated: 250W RMS LF |
| Frequency range: | 50 - 20000 Hz |
| Max. SPL: | 123 dB |
| Dispersion angle: | 80° x 80° |
| Controls: | Limiter; overload |

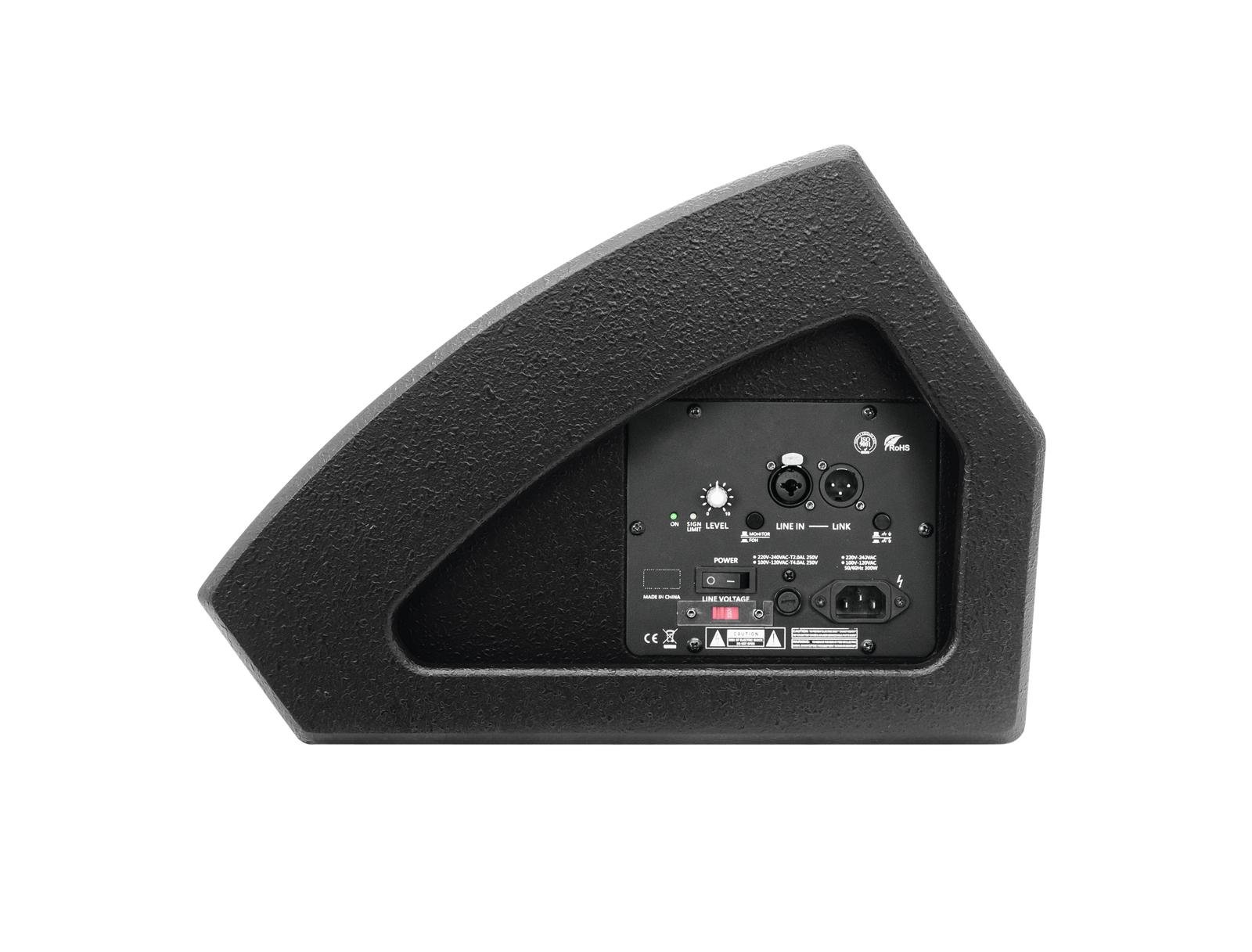

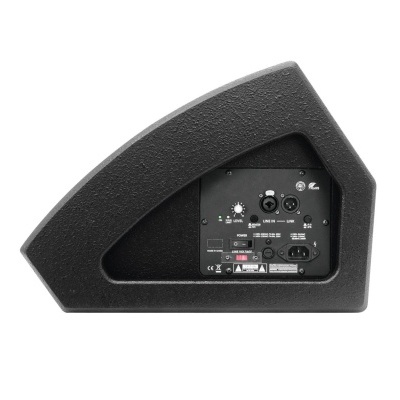

| Connections: | Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono via XLR or jack, channel control via Rotary dial |
| Speaker: | 1 x woofer (12") approx. 30 cm with ferrit magnet 1 x Voice coil compression tweeter highs (1.35") approx. 3.5 cm |
| Type of speaker: | Compact cabinet speaker; Coaxial speaker; stage monitor |
| Type of construction: | Vented |
| Material: | MDF (Medium-density fiberboard) |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 50 cm Depth: 34 cm Height: 46 cm |
| Weight: | 16,70 kg |
