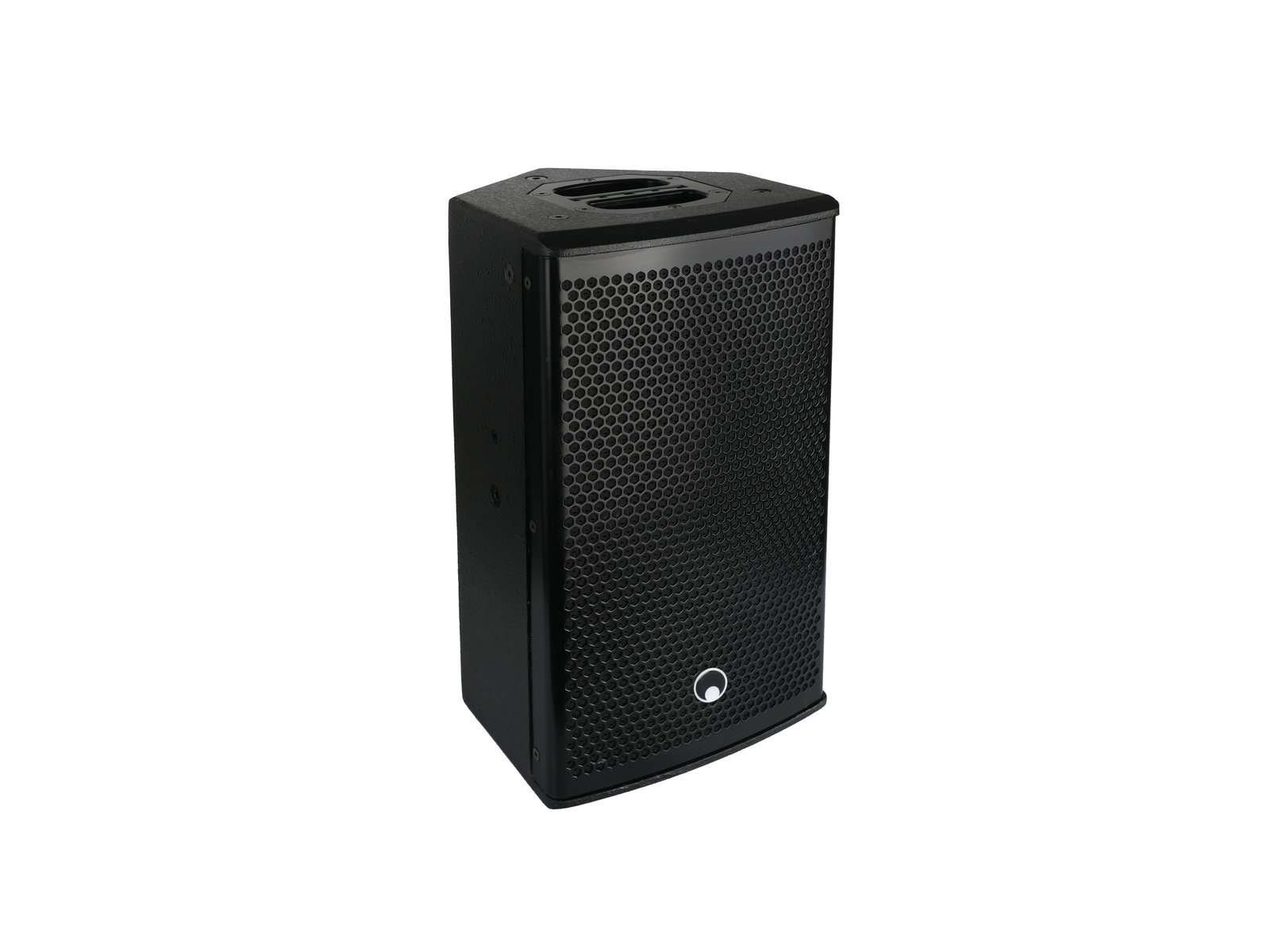

OMNITRONIC PAS-208A MK3 2-Way Top, active, DSP
SKU: 11039471
Active 8" PA speaker with DSP presets, limiter, 210 W RMS
- Active PA speaker system for touring applications and permanent installations
- 2-way bass-reflex system with 20 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 210 watts power
- Switchable low cut (120 Hz, 90 Hz)
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- Optimized for combination with PAS subwoofers
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Digital signal processor
- Rugged carrying handle
- Black metal grille with acoustic foam
- With rigging points
- Application possibility: Standing; suspended; monitoring; on tripod
- DSP presets: FLAT; DJ; MONITOR
- Dual flange
Package contents
- 1 x user manual, 1 x power cord, 1 x compact cabinet speaker
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 300 W |
| Output power: | 210 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 75 - 20000 Hz |
| Max. SPL: | 118 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; MONITOR |
| Dispersion angle: | 90° x 60° |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 5 x M8 thread; 4 x M10 thread |
| Circuitry: | Class D |
| Control elements: | Master control |
| Controls: | Power on/off transient; limiter |
| Status LED: | Signal, power, limit, DSP presets |
| Connections: | Input: 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Link: 2 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via XLR, channel control via Rotary dial |
| Speaker: | 1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet Basket material: aluminum Voice coil compression tweeter highs (1.5") approx. 4 cm Horn vent (1") approx. 2.5 cm 1 x woofer (8") approx. 20 cm Voice coil lows (2") approx. 5 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 27 cm Depth: 46 cm Height: 26,8 cm |
| Weight: | 11,70 kg |
