OMNITRONIC PAS-215A MK3 2-Way Top, active, DSP
SKU: 11039483
Active 15" PA speaker with DSP presets, 2 input channels, 550 W RMS
- Active PA speaker system for touring applications and permanent installations

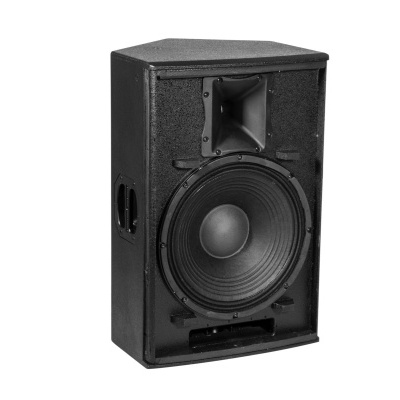

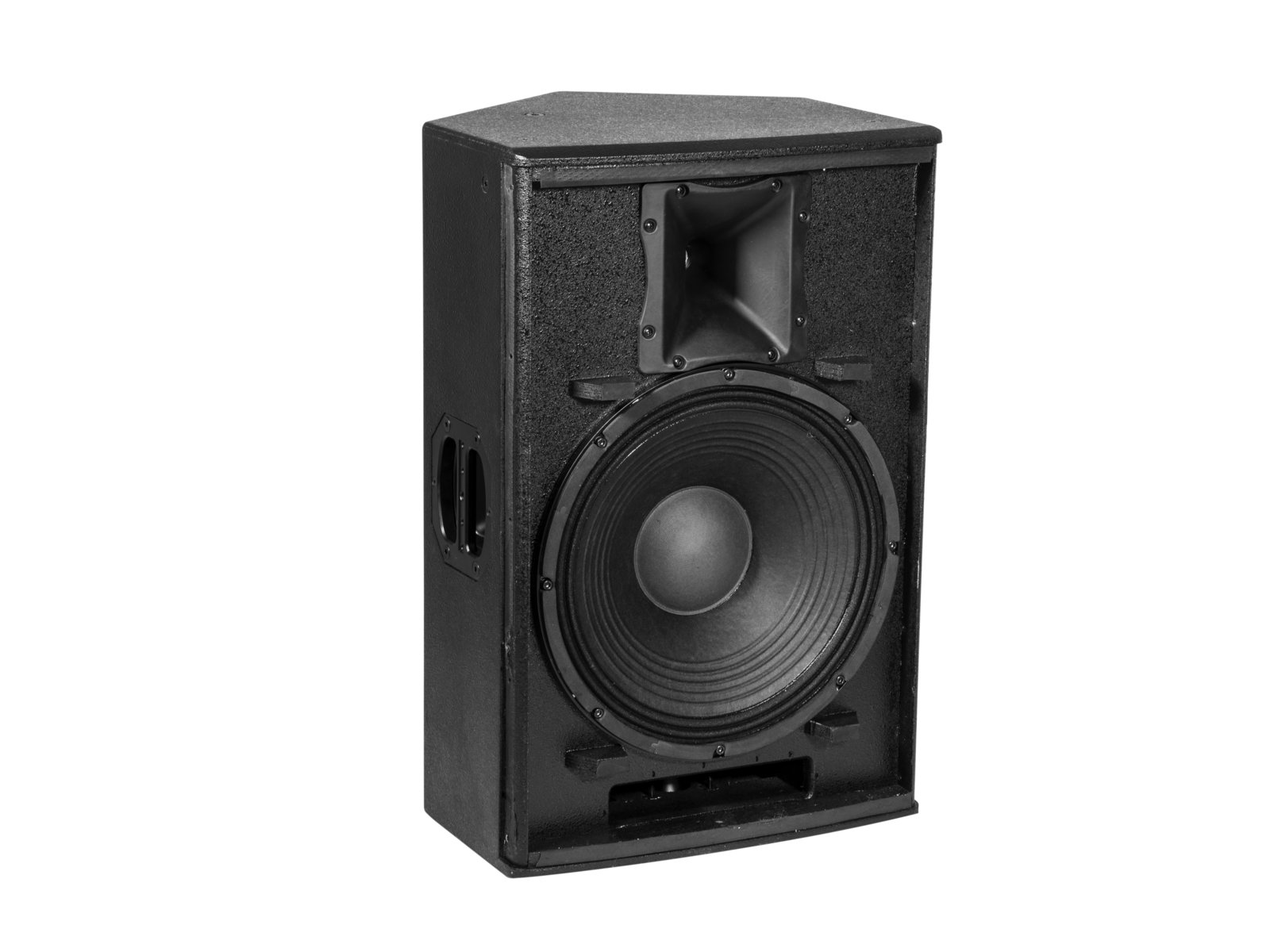

- 2-way bass-reflex enclosure with 38 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 550 watts power
- Switchable low cut (120 Hz, 90 Hz)
- 1 adjustable line input via XLR/6.3mm combo jack and RCA
- 1 adjustable mic/line input via XLR/6.3mm combo jack
- XLR output for linking further active speaker systems, switchable CH 1/CH 2
- Optimized for combination with PAS subwoofers
- Digital signal processor
- 2 Rugged carrying handles
- With rigging points

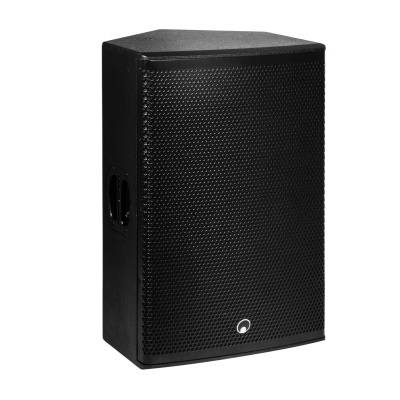

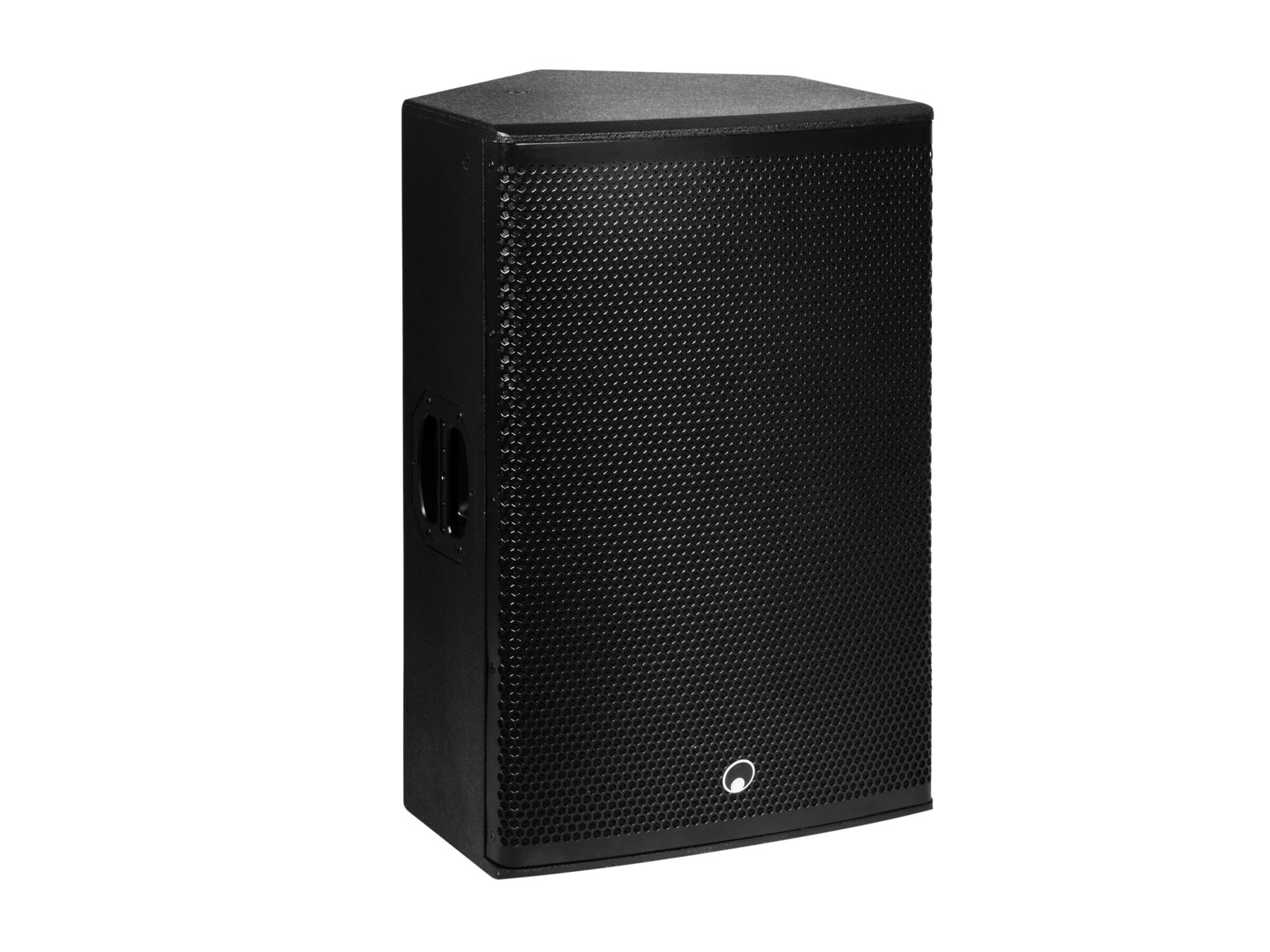

- Black metal grille with acoustic foam

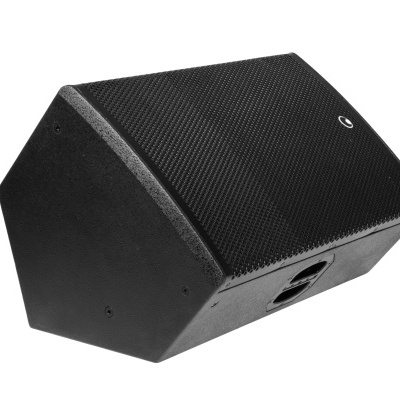

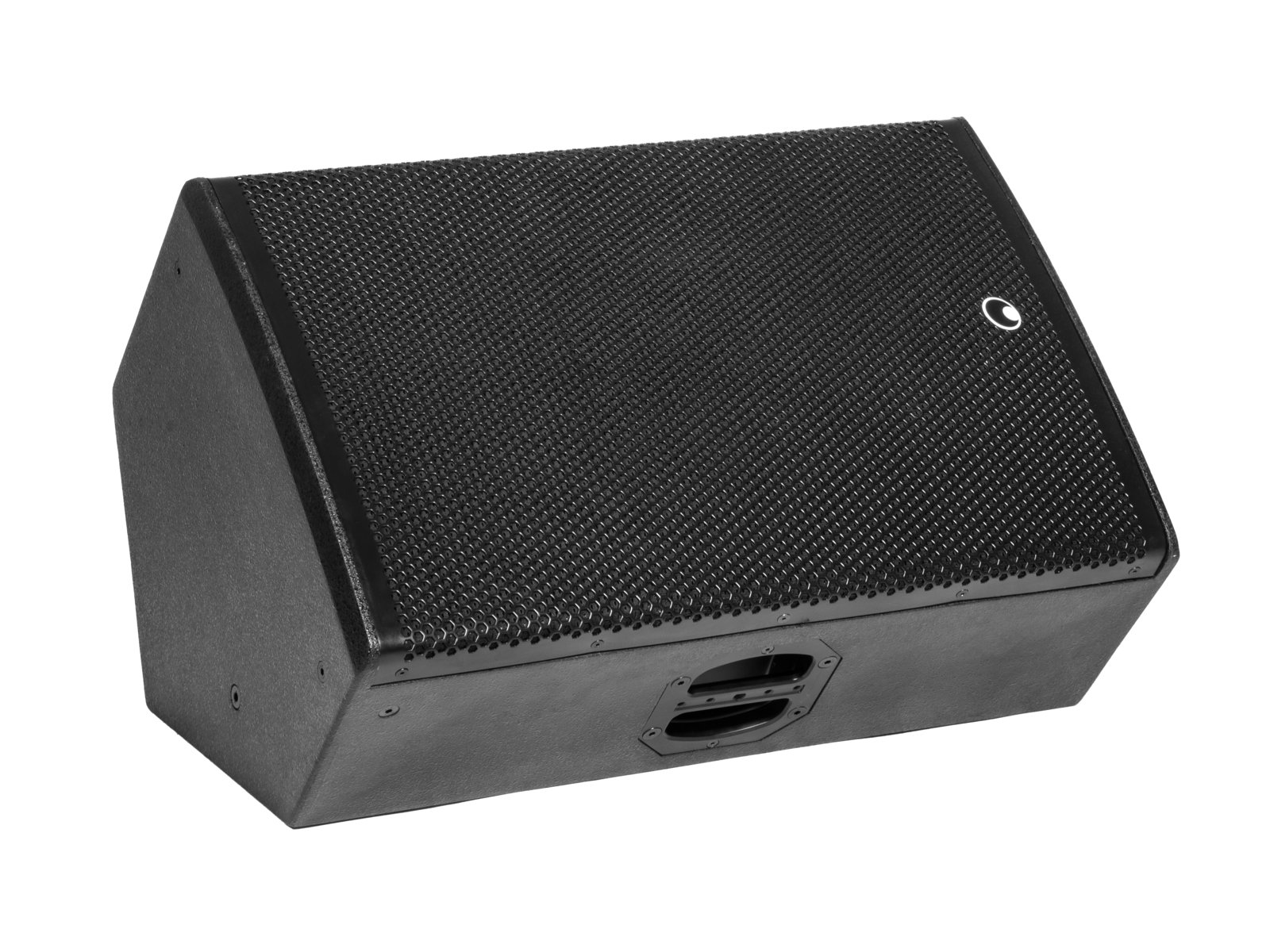

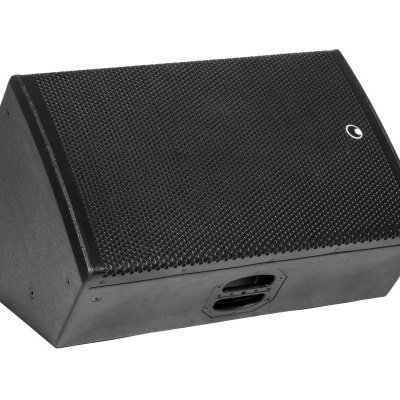

- Application possibility: Standing; suspended; monitoring; on tripod
- DSP presets: FLAT; DJ; MONITOR
- Dual flange
Package contents
- 1 x user manual, 1 x power cord, 1 x compact cabinet speaker
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Output power: | 550 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 50 - 20000 Hz |
| Max. SPL: | 127 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; MONITOR |
| Dispersion angle: | 90° x 60° |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 4 x M10 thread; 6 x M8 thread |
| Circuitry: | Class D |
| Controls: | Power on/off transient; limiter |
| Status LED: | DSP presets |

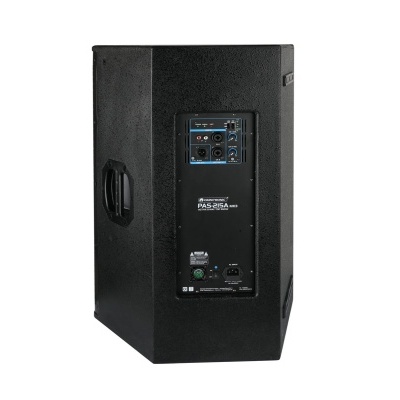

| Connections: | Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 1 x stereo RCA Link: 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via XLR or RCA, channel control via Rotary dial 1 x mono with Mic-line switch via XLR, channel control via Rotary dial |
| Speaker: | 1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet Basket material: aluminum Voice coil compression tweeter highs (1.5") approx. 4 cm Horn vent (1") approx. 2.5 cm 1 x woofer (15") approx. 38 cm Voice coil lows (3") approx. 8 cm |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 2 pc/pcs |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 45 cm Depth: 69,5 cm Height: 43,5 cm |
| Weight: | 26,30 kg |
