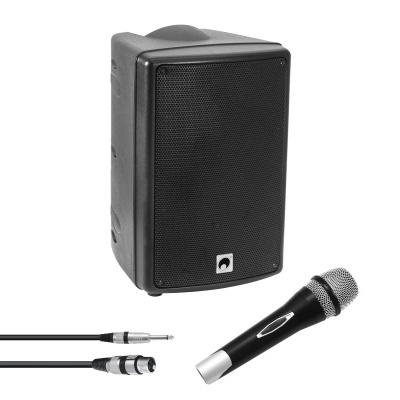

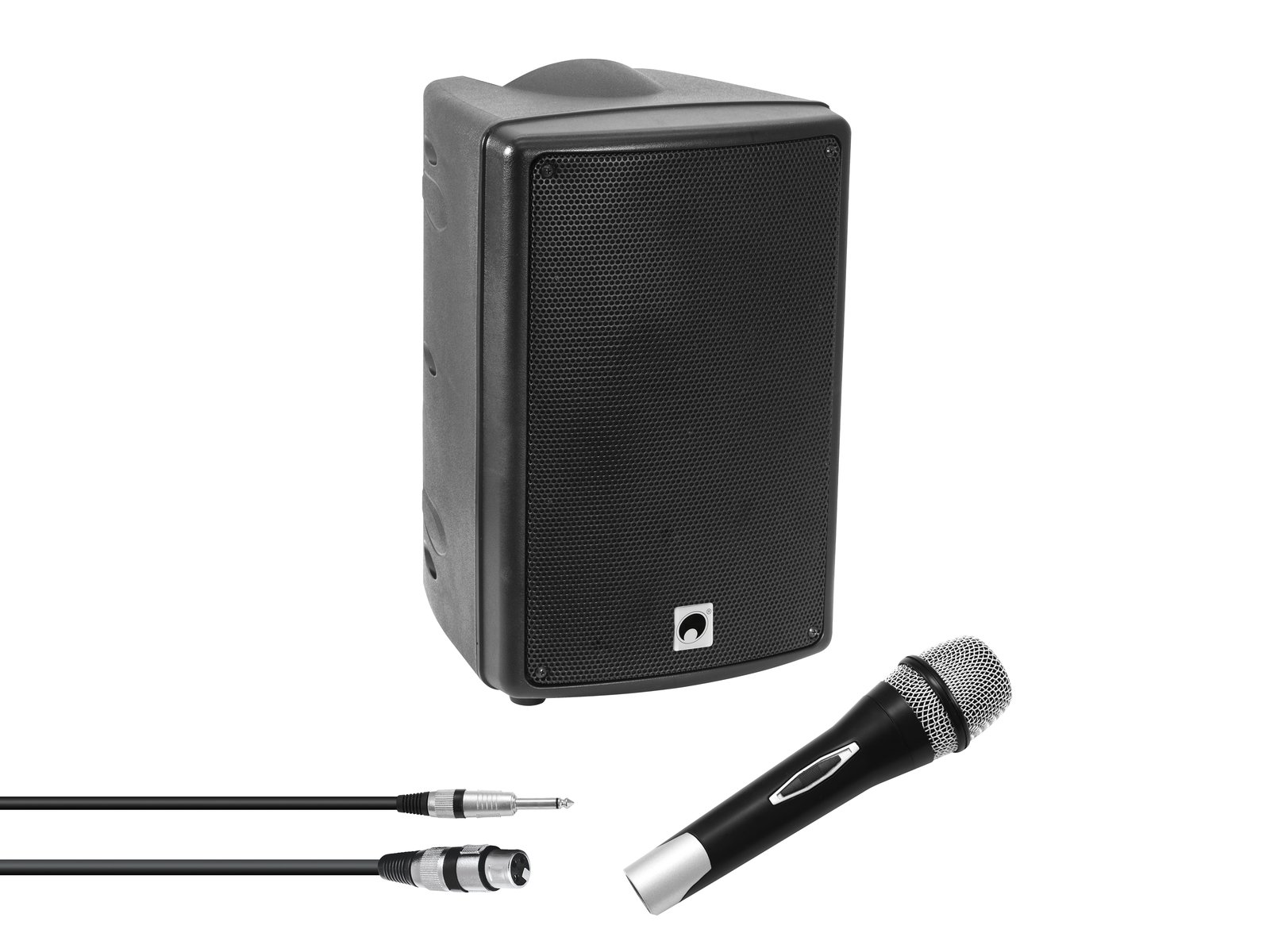

OMNITRONIC Set WMAS-08BT MK2 wireless PA system + Partymic-1
SKU: 20000645
Mobile 8" PA system with battery operation including dynamic partymic
OMNITRONIC WAMS-08BT MK2 Wireless PA System
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
- Portable all-in-one PA system with 40 watts output power
- 3-channel power mixer
- 2-way bass-reflex system
- UWM-2HH USB dongle with 2 wireless microphones available as accessory
- USB port can also be used for charging mobile devices
- 1 additional battery can be retrofitted for up to 8 hours operating time
- 2 mono input channels mic/hi-Z instrument with adjustable echo effect
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Common 2-band EQ for highs and lows
- For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Mould carrying handle
- Application possibility: Standing; on tripod
- Battery pack tool-free replacement
- Integrated automatic charging of the battery and status indicator
- The device is cooled by passive convection cooling
Battery pack
- Battery operation up to 4h depending on program used
- Cordless, flexible and versatile
Audio player
- Control via IR remote control; Bluetooth
- 2.4 GHz license-free worldwide
- Bluetooth: Operating range up to 10m
Remote control
- Operating range up to 10m
Package contents
- 1 x compact cabinet speaker, 1 x power cord, 1 x battery pack, 1 x remote control, 1 x battery, 1 x user manual, 1 x declaration of conformity
OMNITRONIC Partymic-1 Dynamic Microphone
Simple dynamic microphone including XLR/jack cable
- Polar pattern: Cardioid
Package contents
- 1 x microphone, 1 x jack cable
| Weight: | 8,07 kg |
| OMNITRONIC WAMS-08BT MK2 Wireless PA System | |
| Power supply: | 100-240 V AC, 50/60 Hz Or 12 V DC |
| Power consumption: | 65 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Output power: | 40 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack |
| Frequency range: | 50 - 18000 Hz |
| THD: | <0,1 % at 1 kHz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 106 dB |
| Cooling: | Passive convection cooling |
| Housing color: | Black |
| Attachment system: | Flange: Ø 35mm |
| Control elements: | Echo effect control, Audio player |
| Status LED: | Power, peak, Microphone, charge status indicator, pairing |
| Connections: | Input: Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Input: stereo via 1 x 3.5 mm jack (stereo) mounting version Input: 1 x USB A (F) mounting version |
| Channels: | Microphon chanal: 2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial Input chanel: 1 x stereo via RCA or jack plug or player, channel control via Rotary dial Input chanel: 2 x mono via Radio, channel control via Rotary dial Master output: mono, channel control via Rotary dial, 2-band tone control EQ |
| Speaker: | 1 x woofer (8") approx. 20 cm Basket material: Steel Conematerial: Cardboard/paper 1 x Tweeter |
| USB port: | Typ A |
| Type of speaker: | Compact cabinet speaker; Wireless PA system |
| Mould carrying handle: | 1 pc/pcs |
| Material: | ABS Acrylonitrile butadiene styrene |
| Color: | Black |
| Dimensions: | Width: 27 cm Depth: 29 cm Height: 42 cm |
| Weight: | 7,75 kg |
| Battery pack | |
| Battery pack type: | 1 x lithium ion 11,1 V, 4000 mAh, 44,4 Wh |
| Battery pack: | Battery operation up to 4h depending on program used Recharging time 4h |
| Audio player | |
| Control: | IR remote control; Bluetooth |
| Bluetooth device name: | WAMS-08BT MK2 |
| Audio player: | USB + SD + Bluetooth, |
| Music format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Range: | Bluetooth: range up to 10m |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | Range up to 10m |
| OMNITRONIC Partymic-1 Dynamic Microphone | |
| Type: | Vocal microphone; Microphone for instruments |
| Cable length: | 3,3 m |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Frequency range: | 50 - 13000 Hz |
| Impedance: | 600 Ohm |
| Connections: | 3-pin XLR 6.3 mm plug (unbal.) |
| Input sensitivity: | -55 dB |
| Transducer type: | Dynamic |
| Switch: | On/off switch |
| Dimensions: | Length: 18 cm Diameter: Ø 5 cm |
| Weight: | 320 g |
