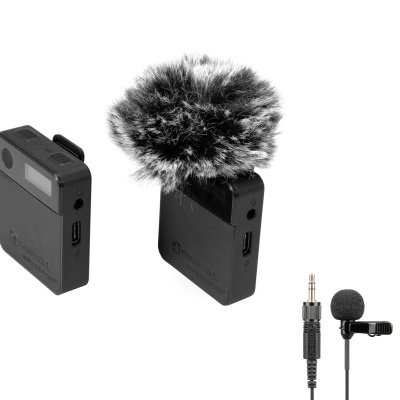

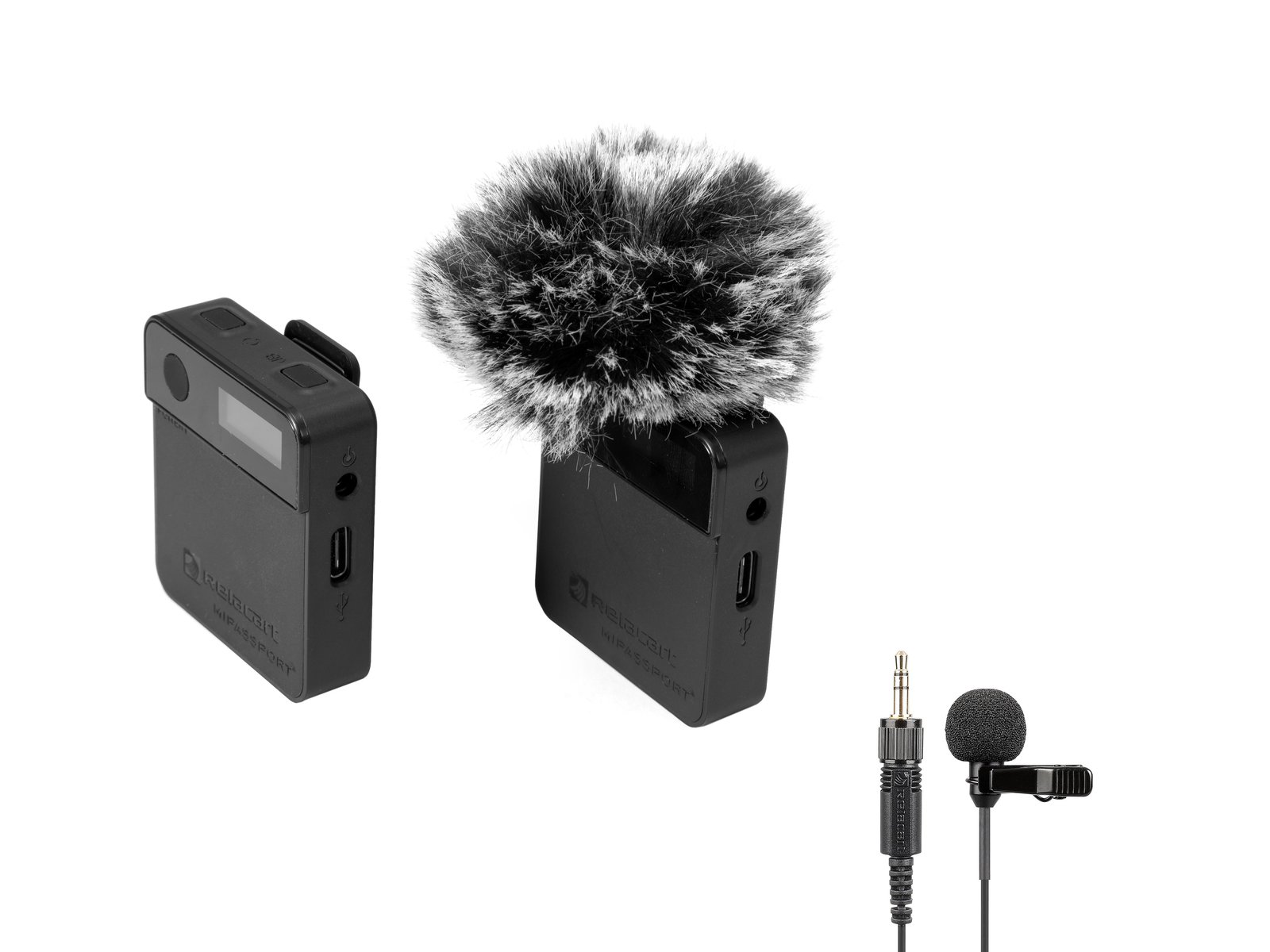

RELACART Set MIPASSPORT Wireless Cameramount Microphone System + LM-P01 Lavalier
SKU: 20000865
RELACART MIPASSPORT Wireless Cameramount Microphone System
Wireless audio transmission system for cameras
- Portable transmitter and receiver with attachment clip
- Perfect video sound for cameras, smartphones, camcorders, etc.
- Easy attachment to clothing, the camera's hot shoe, etc.
- Ultra-compact and lightweight design
- Rechargeable lithium batteries
- Charging via USB-C socket
- Transmitter with integrated omnidirectional condenser microphone
- 3.5 mm TRS jack for an external lavalier microphone (optional)
- Receiver with 3.5 mm TRS jack for your recording device and 4-stage gain control (0 dB, -3 dB, -6 dB, -9 dB)
- Automatic pairing in 2 seconds
- Up to 6 systems can be operated simultaneously (max. range 20 m)
- Works with iOS and Android devices
- OLED display
- 2.4 GHz license-free worldwide
- Operating range up to 40m with line-of-sight
- For application areas such as: Trade fair and shop fitting; mobile use; mobile djs/entertainer; homerecording and studios; video and photography
transmitter
- Polar pattern: Omnidirectional
- Cordless, flexible and versatile
- Battery operation up to 7h
Receiver
- Cordless, flexible and versatile
- Battery operation up to 7h
Package contents
- 1 x transmitter, 1 x receiver, 2 x jack cable, 1 x uSB cable, 1 x windshield, 1 x user manual, 1 x declaration of conformity
RELACART LM-P01 Lavalier for MIPASSPORT System
Inconspicuous electret lavalier microphone
- Provides high-quality voice pickup
- For attaching to the user's tie, shirt or collar
- Polar pattern: Omnidirectional
Package contents
- 1 x microphone, 2 x windshield, 1 x bag, 1 x user manual
| Weight: | 130 g |
| RELACART MIPASSPORT Wireless Cameramount Microphone System | |
| Type: | Wireless set |
| Power supply: | 5 V DC 500 mA |
| Power connection: | Battery/battery pack Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Number of channels: | 1 |
| Frequency range: | 100 - 20000 Hz |
| S/N ratio: | >93 dB |
| Max. SPL: | 97 dB |
| Display type: | OLED display |
| Frequency band: | 2.4 GHz |
| Range: | Range up to 40m with line-of-sight |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 4,4 cm Depth: 1,9 cm Height: 5 cm |
| Weight: | 120 g |
| Transmitter | |
| Capsule type: | Electret |
| Polar pattern: | Omnidirectional |
| Battery pack type: | 1 x lithium ion 3,7 V, 435 mAh, 1,61 Wh |
| Battery pack: | Battery operation up to 7h |
| Connections: | Input: Microphone via 3.5 mm jack (mono) mounting version 2,5 V |
| RF power output: | 10 dBm |
| Weight: | 32 g |
| Receiver | |
| Battery pack type: | 1 x lithium ion 3,7 V, 435 mAh, 1,61 Wh |
| Battery pack: | Battery operation up to 7h |
| Connections: | Output: 3.5 mm jack (mono) mounting version |
| Weight: | 32 g |
| RELACART LM-P01 Lavalier for MIPASSPORT System | |
| Type: | Lavalier microphone |
| Power supply: | 1,5-9 V DC |
| Power connection: | Via 3.5 mm jack (mono) |
| Cable length: | 1,2 m |
| Capsule type: | Electret Size: Ø 8 mm x 18 mm |
| Polar pattern: | Omnidirectional |
| Frequency range: | 50 - 20000 Hz |
| S/N ratio: | >65 dB |
| Sensitivity: | -39 dB |
| Impedance: | 2200 Ohm |
| Switch: | Without |
| Material: | Aluminum |
| Color: | Black |
| Weight: | 20 g |
