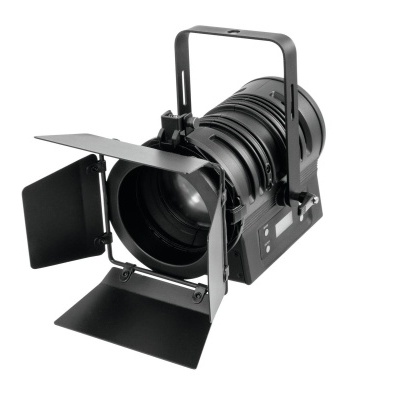

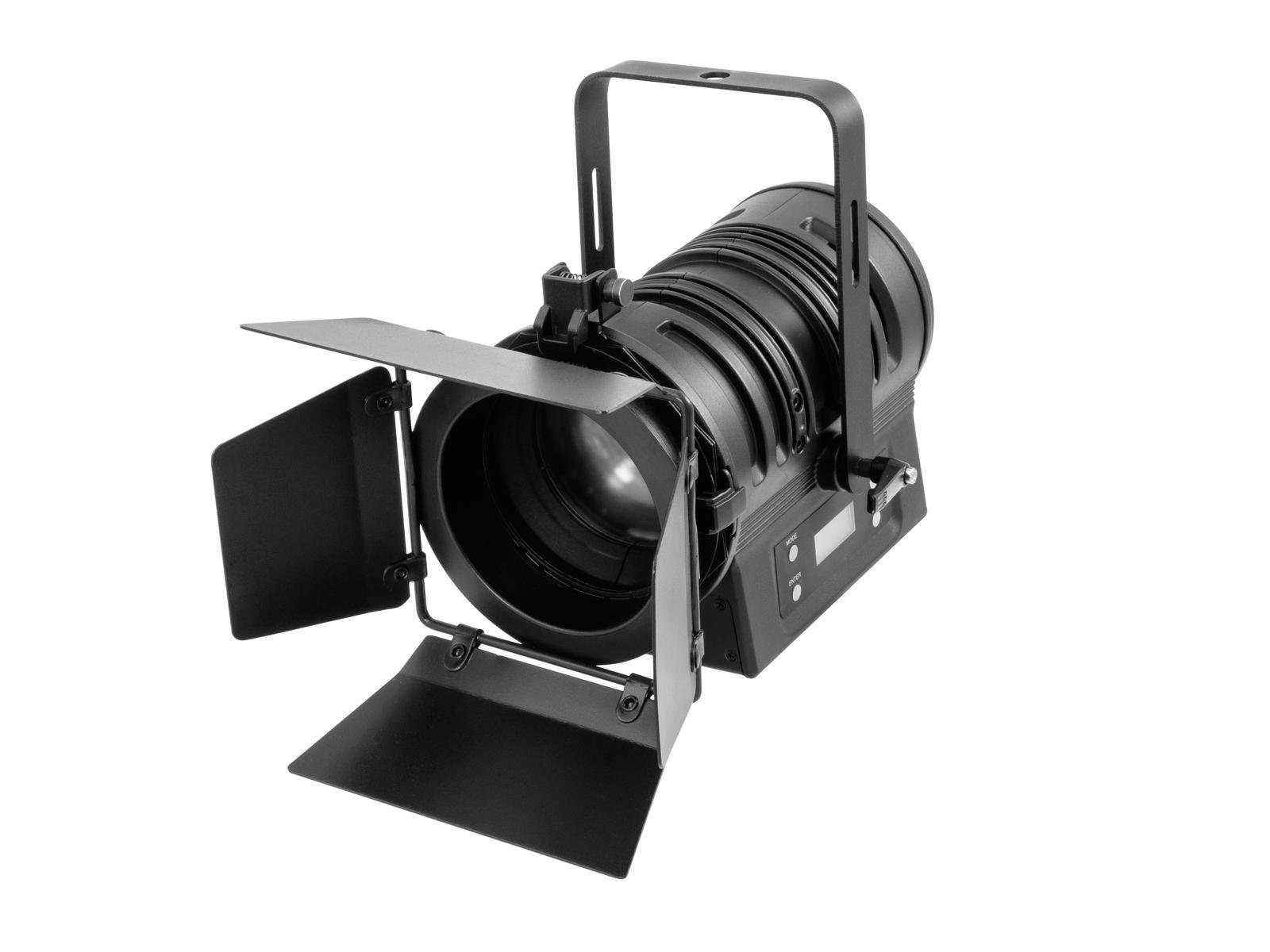

EUROLITE LED THA-40PC Theater-Spot bk
SKU: 41602080
Fanless PC spot (DMX), 57 W LED in warm white, color rendering index (CRI) >90
- 1 powerful LED 57 W COB (chip-on-board) warm white (WW)
- Strobe effect
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX
- Flicker-free
- With a beam angle of 11° - 48°
- Very high color rendering index (CRI)
- With Mounting bracket

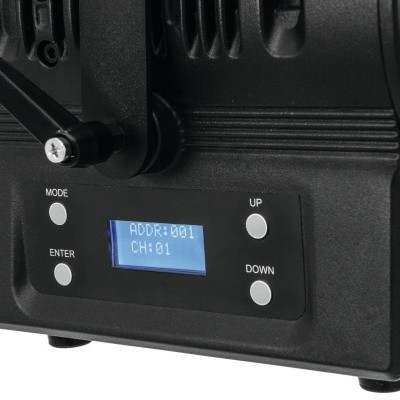

- LCD display
- Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response) adjustable
- Preprogrammed in LED PC-Control 512; Light´J; Light Captain
- Rubber feet
- Silent operation
- For application areas such as: Trade fair and shop fitting; Installation; Stage; theater
- Application possibility: Suspended; on tripod
Package contents
- 1 x spotlight, 1 x barndoor, 1 x filter frame, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T Fuse replaceable |
| LED: | 1 x 57 W COB (chip-on-board) warm white (WW) |
| Color temperature: | 3100K |
| DMX channels: | 1; 2 |

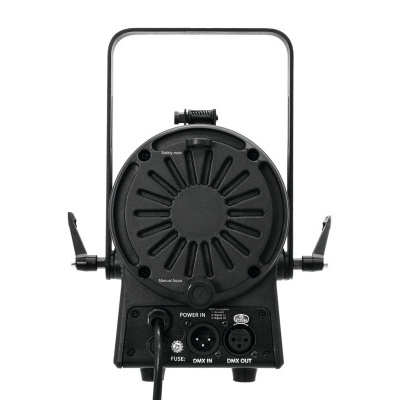

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX |
| Preprogrammed in: | LED PC-Control 512; Light´J; Light Captain |
| Beam angle: | 11° - 48° |
| Beam angle (1/2 peak): | 11 - 37° |
| Beam angle (1/10 peak): | 17 - 48° |
| Color rendering index (CRI): | 91 Ra |
| Illuminance in Lux (lx): | Narrow 3m: 1656 lx, 6m: 424 lx Wide 3m: 348 lx, 6m: 103 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Transport aid: | Rubber feet |
| Material: | Aluminum casting |
| Slot for spot length: | 13,1 cm x 13,1 cm |
| Dimensions: | Length: 27,5 cm Width: 20,5 cm Depth: 25 cm |
| Weight: | 3,85 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 2 x Ø6mm |
| Material: | Metal, 3 mm |
| Barndoor | |
| Material: | Aluminum, 1,5 mm; metal |
| Ring diameter: | Outside: 12,9 mm Inside: 10,9 mm |
| Filter frame | |
| Diameter mounting holes: | 1 x Ø4mm |
| Shape: | Octagonal |
| Material: | Aluminum, 0,8 mm |
| Dimensions: | Width: 13 cm Height: 13 cm Diameter: Ø 10,5 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
