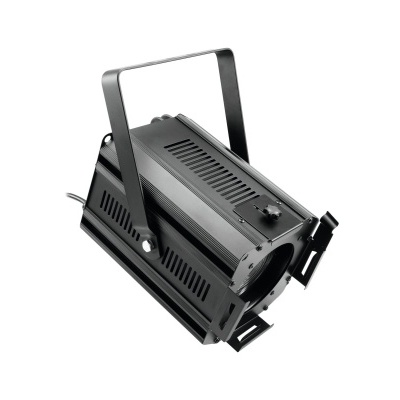

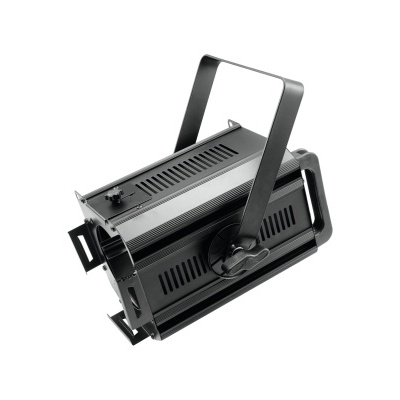

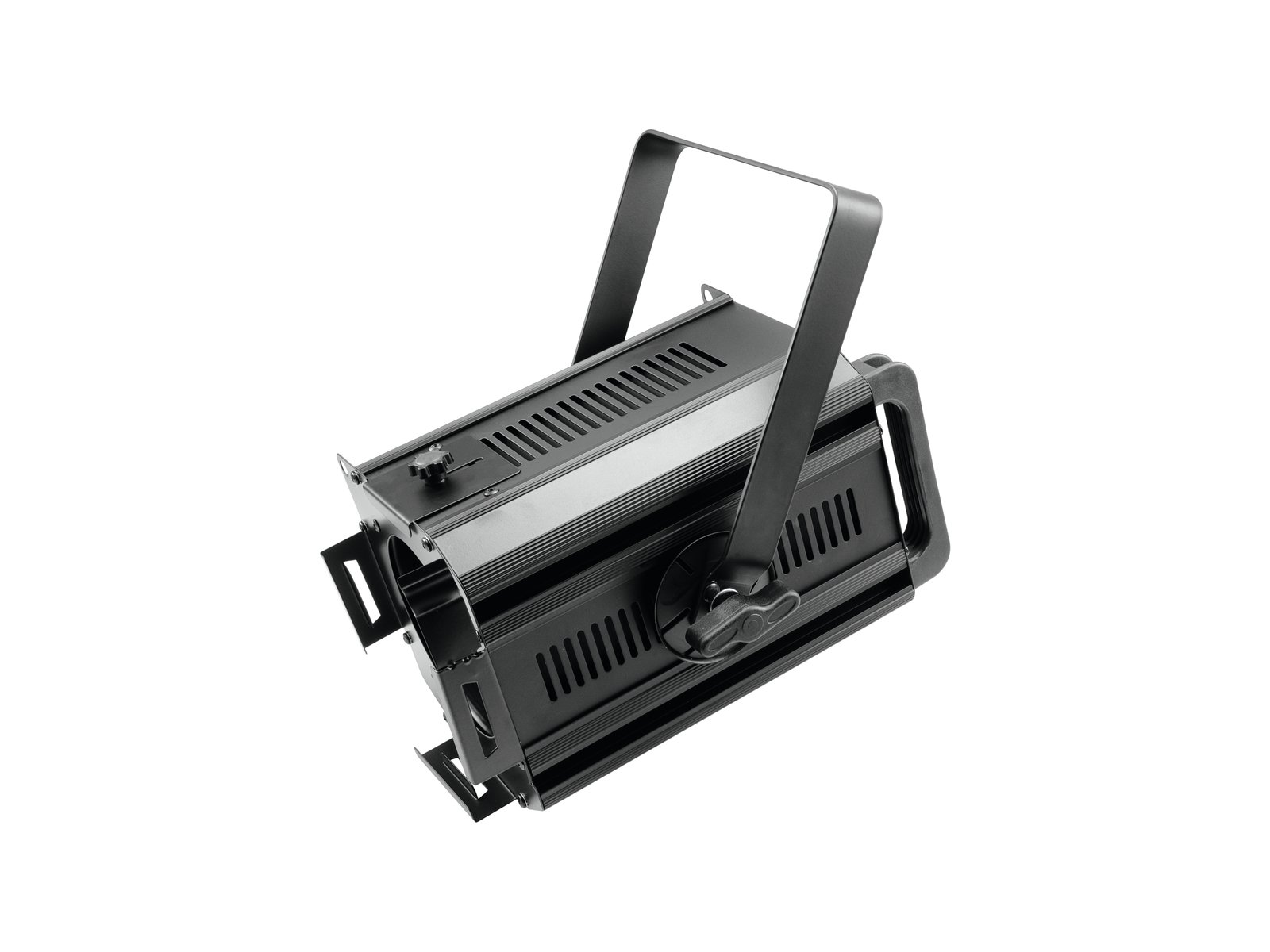

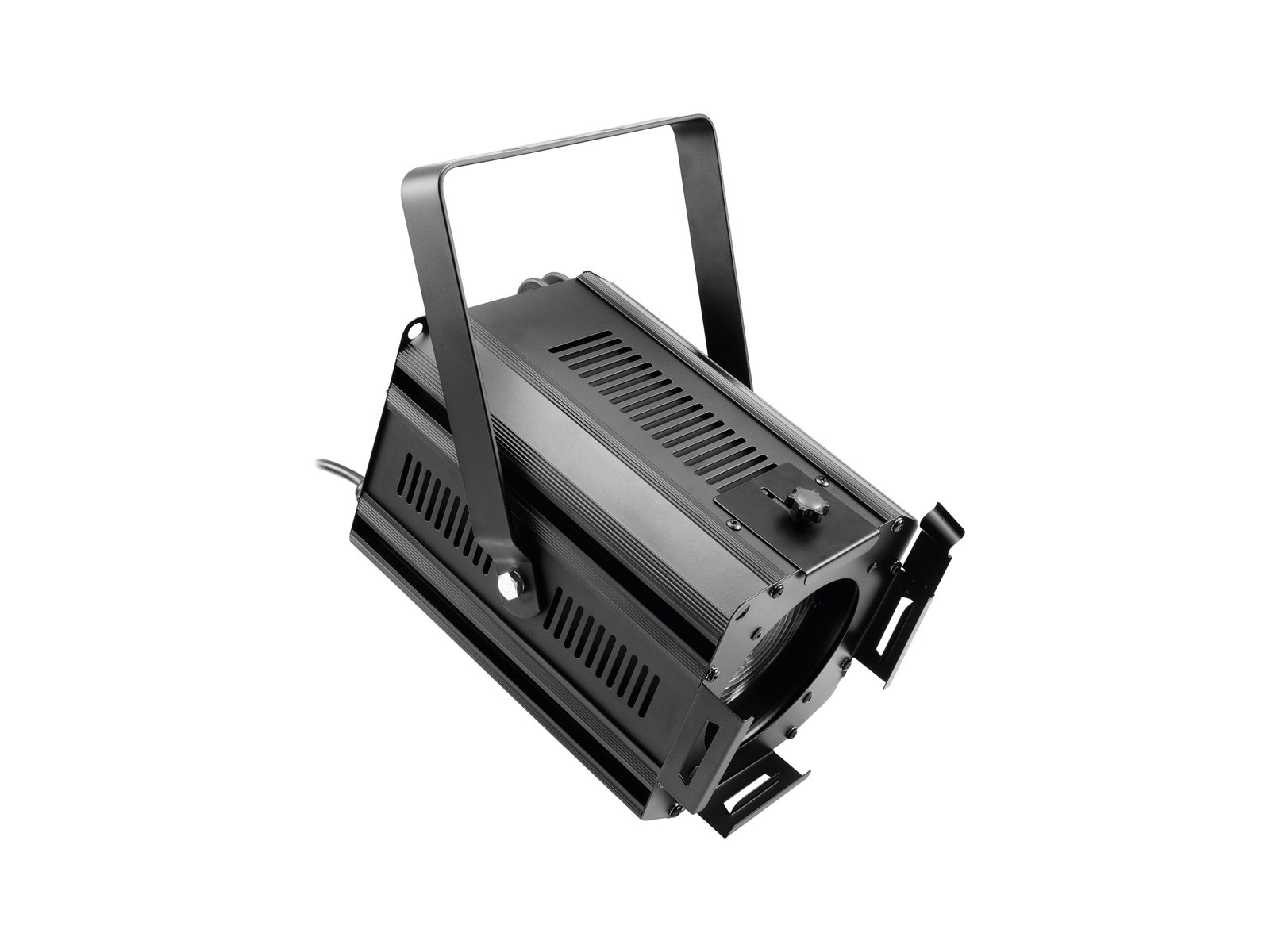

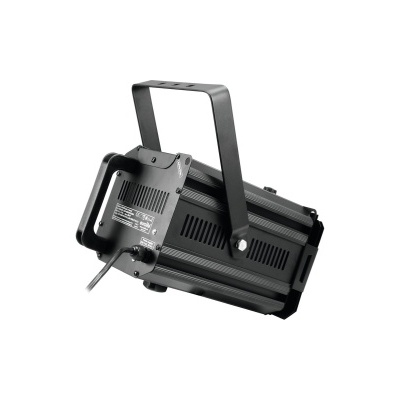

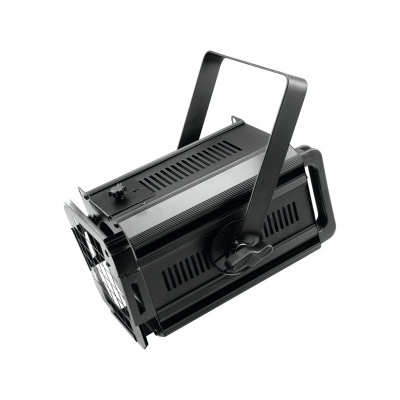

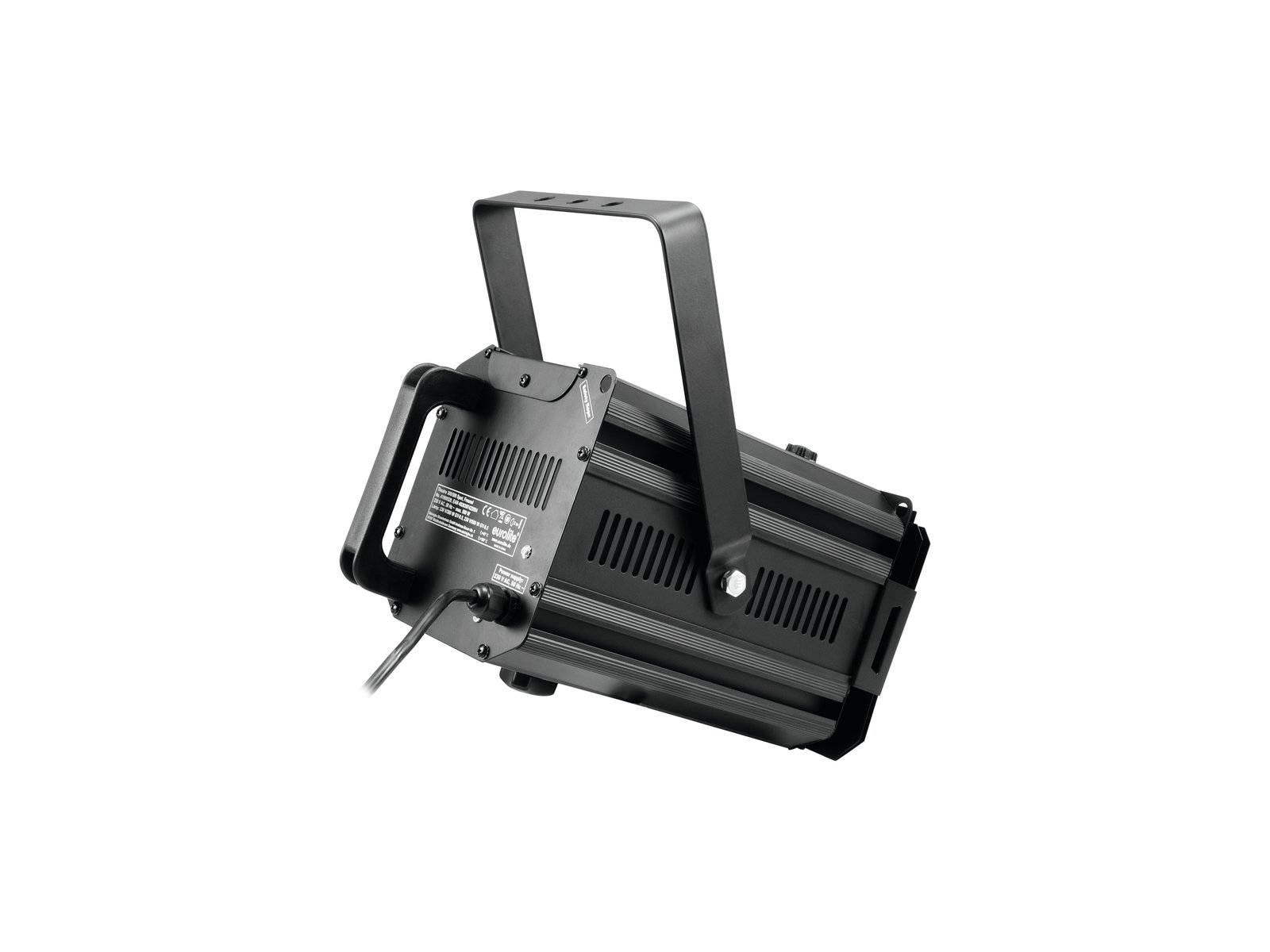

EUROLITE Theatre Spot 300/500 Fresnel bk
SKU: 41900520
Theater spot for halogen lamps with 300 or 500 watts power

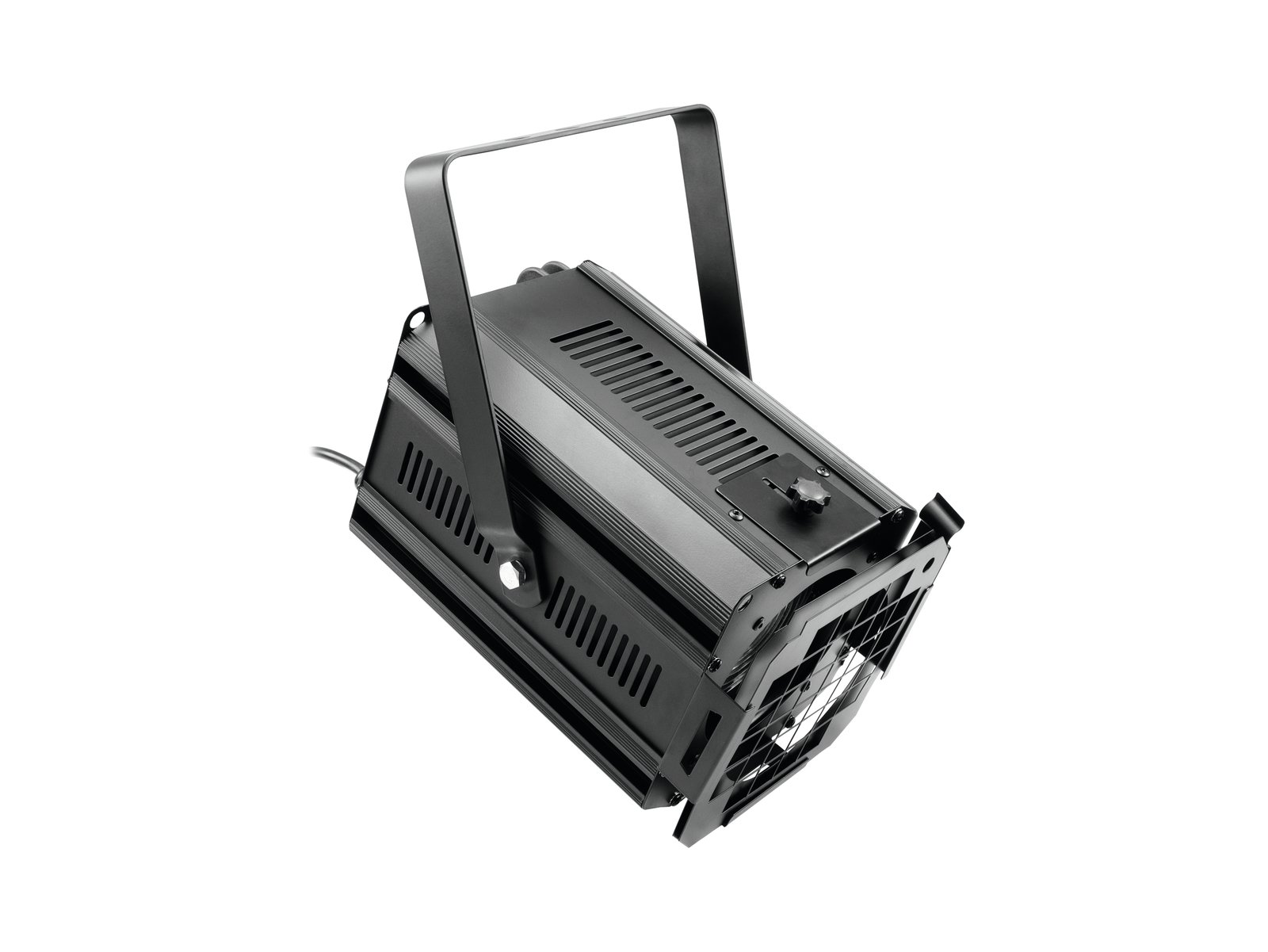

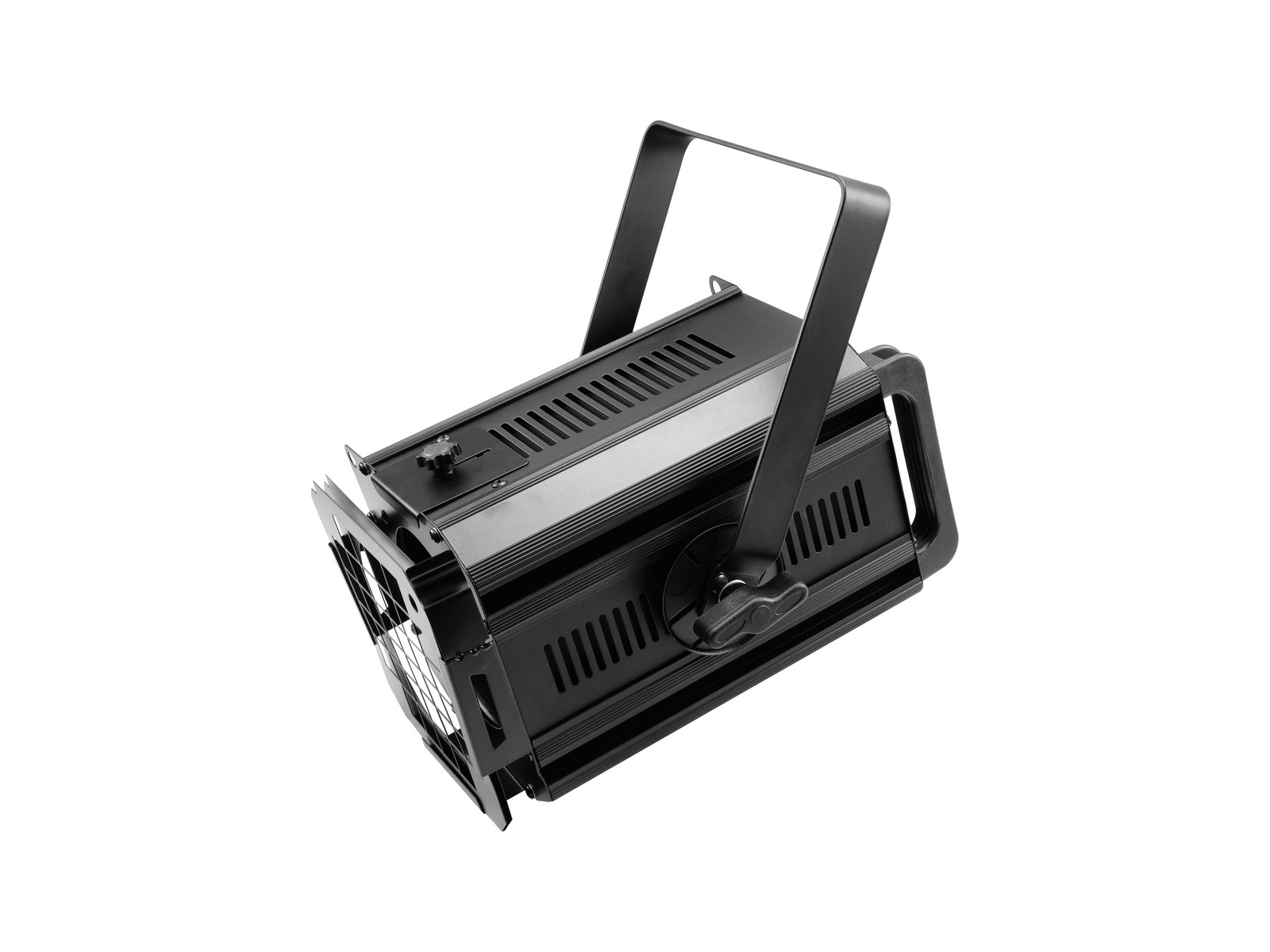

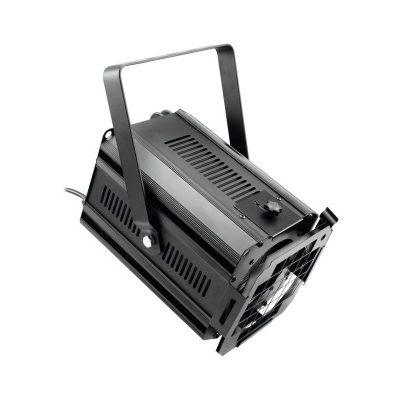

- Professional theatre spot with color filter frame and protective grille
- Impressive light output
- Robust version
- Easy lamp replacement
- Fresnel lens for normal illumination (light beam is of irregular brightness)
- Focus manual
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 5° - 39°
- With Mounting bracket
- Silent operation
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 500 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | Max. 230 V/500 W Lamp envelope GY9.5 |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05SS-F |
| Cable length: | Approx. 0,9 m |
| Base: | GY9.5 |
| Lamp type: | Halogen lamp |
| Equipment: | Focus manual |
| Color generation: | Via color filter frame |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 5° - 39° |
| Beam angle (1/2 peak): | 5 - 20° |
| Beam angle (1/10 peak): | 20 - 39° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Length: 31 cm Width: 23 cm Height: 33 cm |
| Weight: | 3,56 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 4 x Ø12mm |
| Material: | Metal, 3 mm |
| Filter frame | |
| Grid size: | 22 x 22 mm |
| Material: | Metal, 0,5 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
