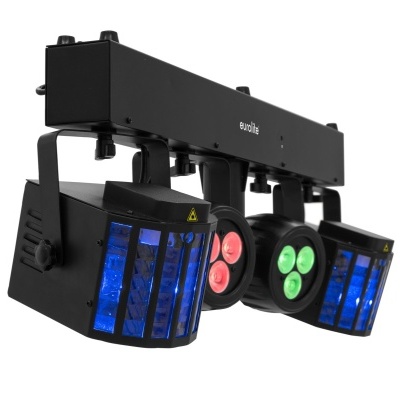

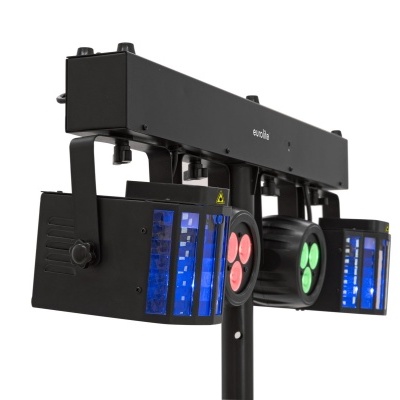

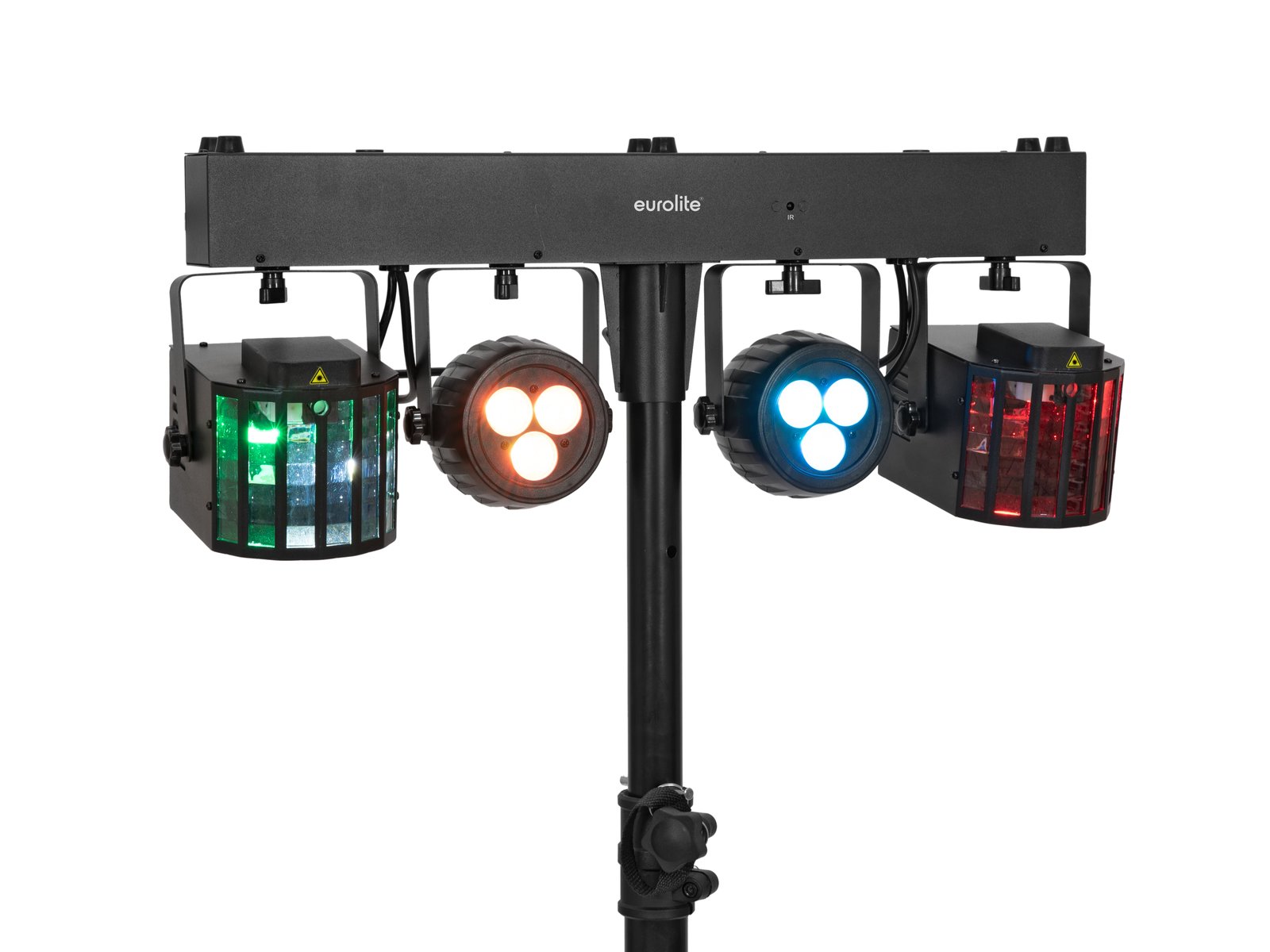

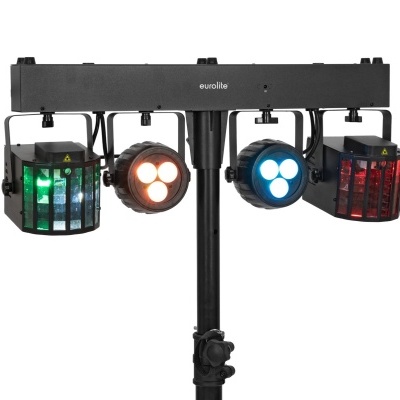

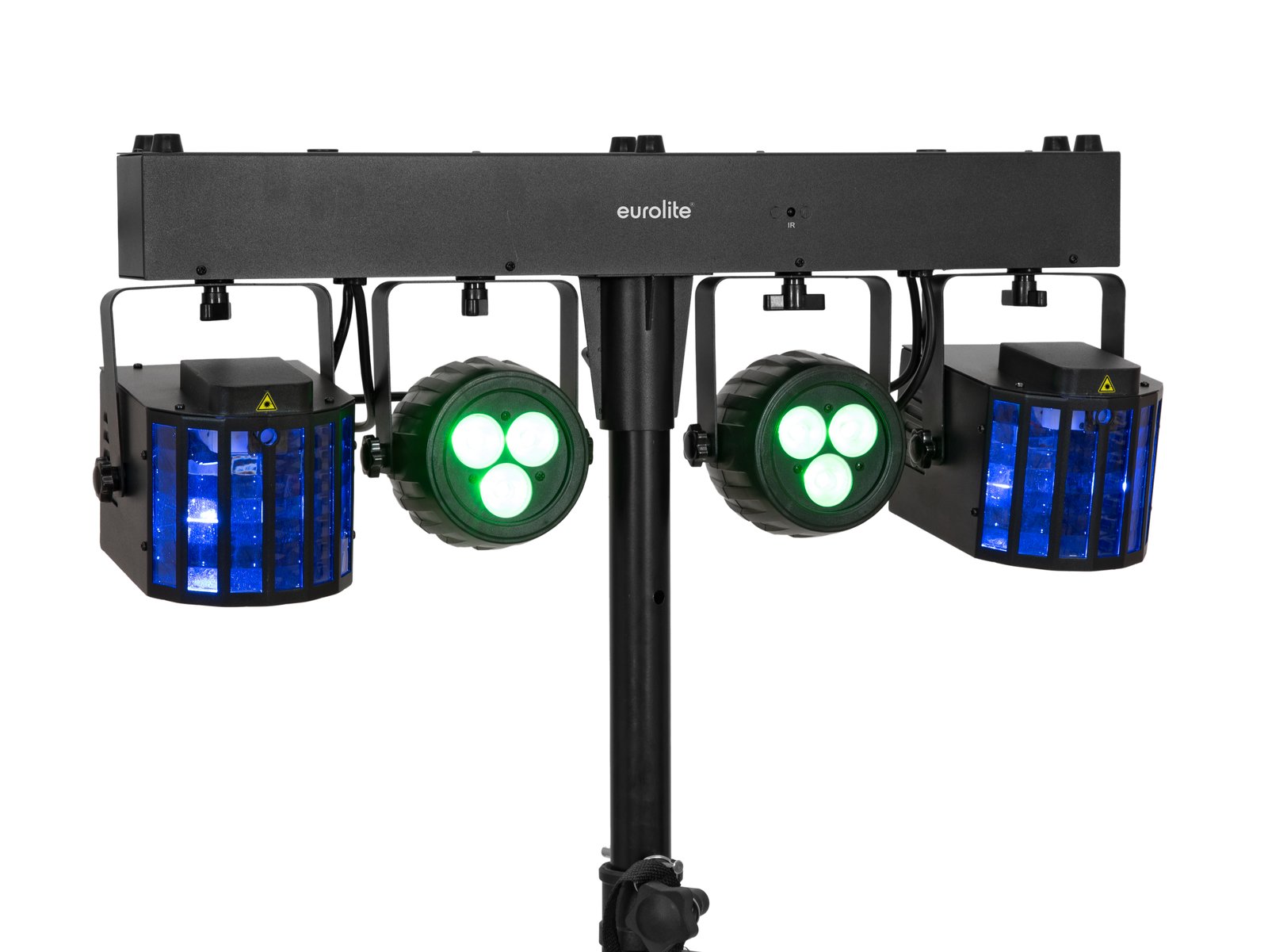

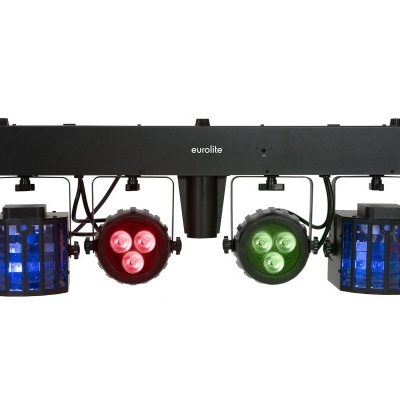

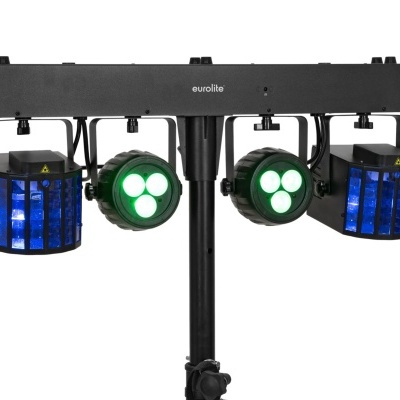

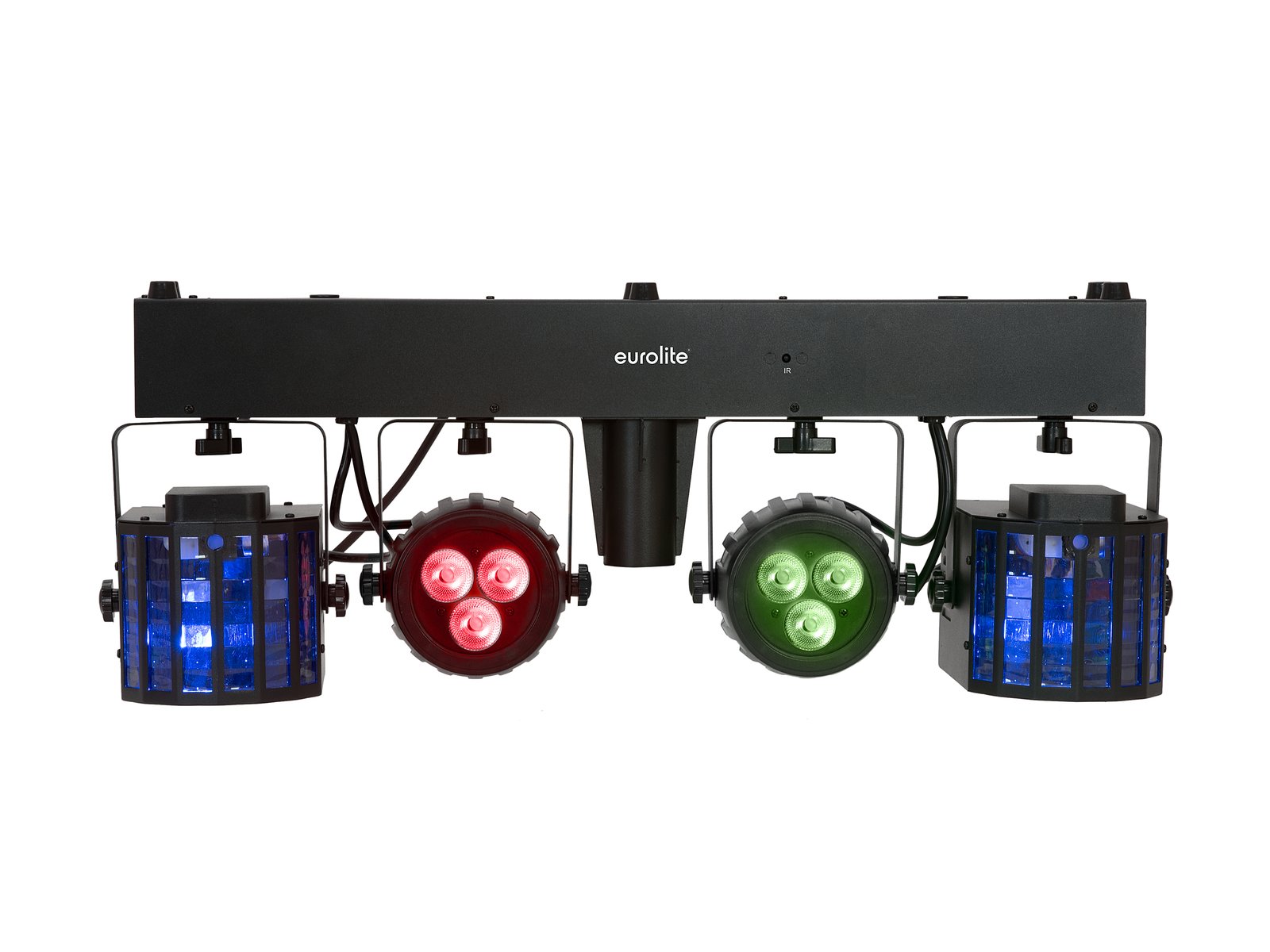

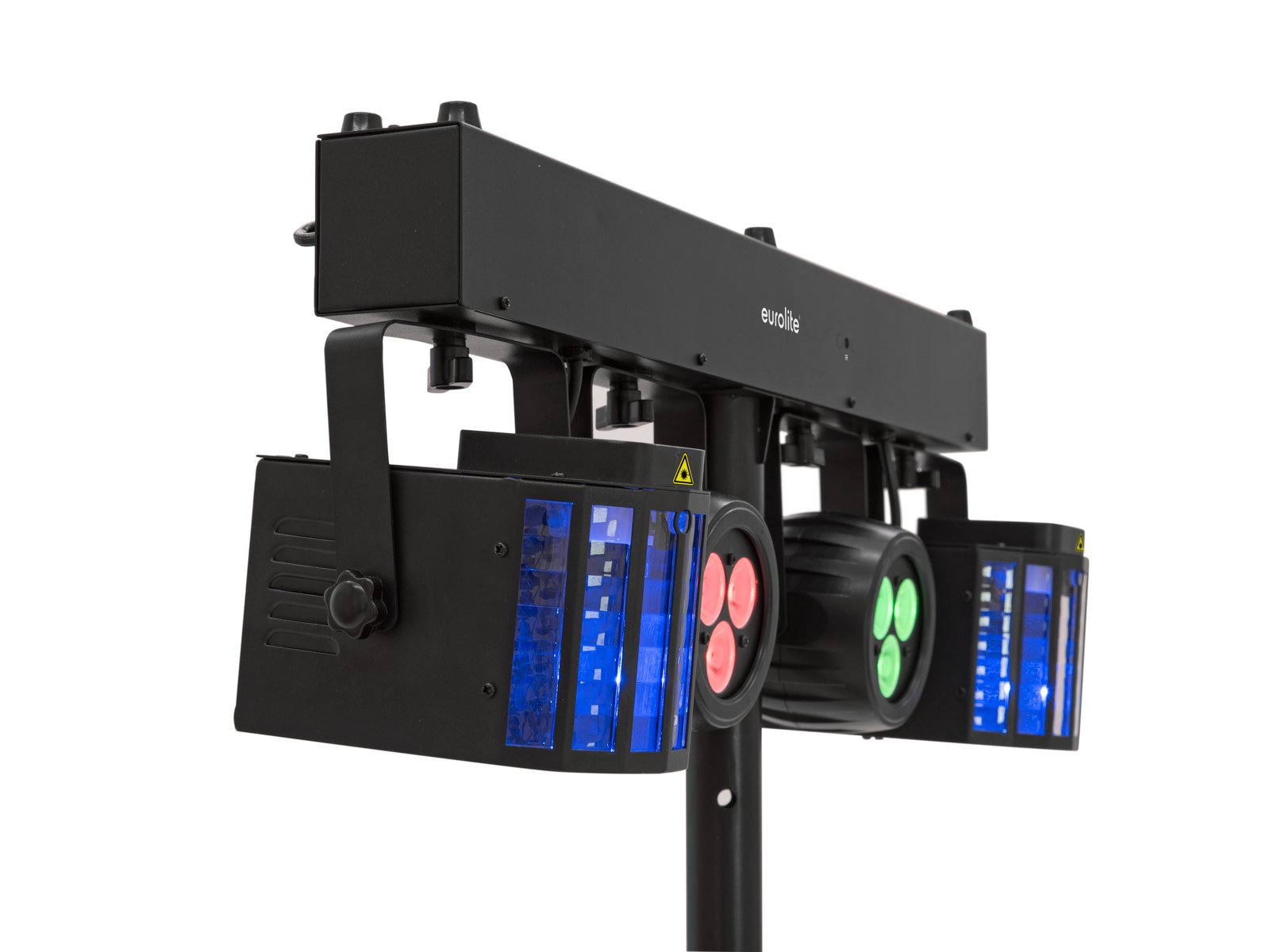

EUROLITE LED KLS-120 Laser FX II Compact Light Set
SKU: 42109650
DMX light effect bar with 2 rotating LED derbies, 2 LED spots and 2 lasers (RG/2M)
- Crossbar with integrated DMX control unit and stand sleeve
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- Direct color selection for 15 preset colors
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- 7 integrated show programs
- Flicker-free
- The device is cooled by passive convection cooling
- 4 digit 7-segment LED display
- Control via DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Mains input and output for power linking up to 8 units
- Application possibility: On tripod; suspended
- For application areas such as: Mobile use; Party room; mobile djs/entertainer; small rental
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- Silent operation
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
spots controlled separately - With a beam angle of 18°
light effect
- 4 powerful LEDs 3 W high-power R/G/B/W
spots controlled separately
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Device fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 3; 13; 25 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 62,5 cm Depth: 15,5 cm Height: 22,9 cm |
| Weight: | 4,60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 14 mW Red (R) 40 mW |
| Spotlight | |
| LED: | 3 x 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 34 |
| Light effect | |
| LED: | 4 x 3 W high-power R/G/B/W |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
