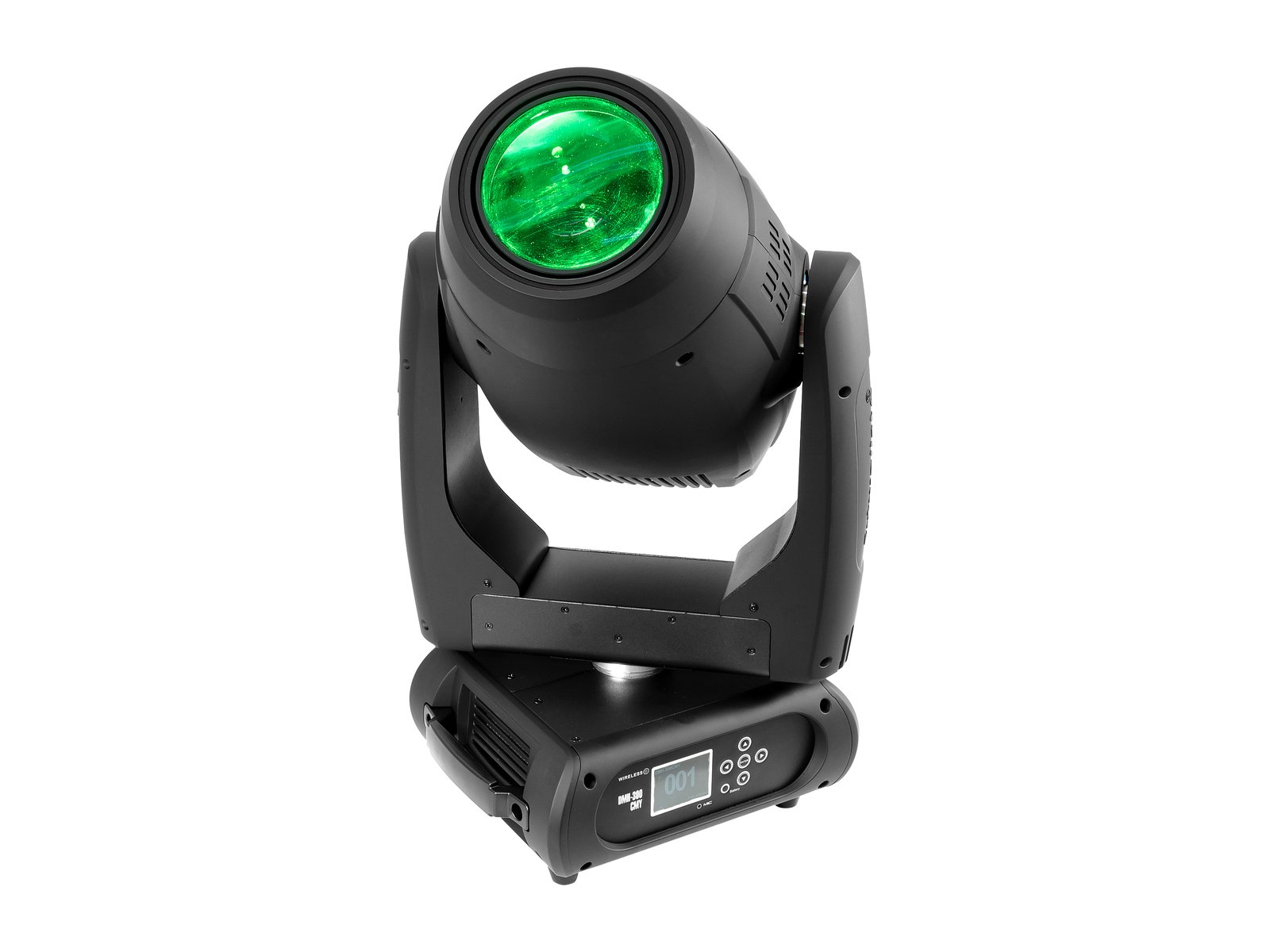

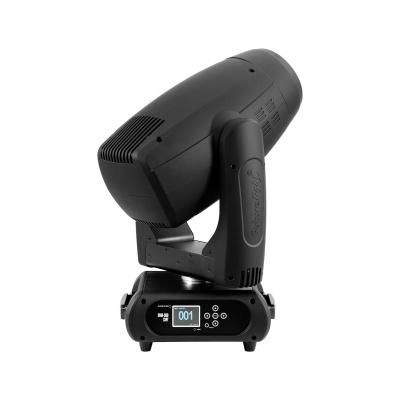

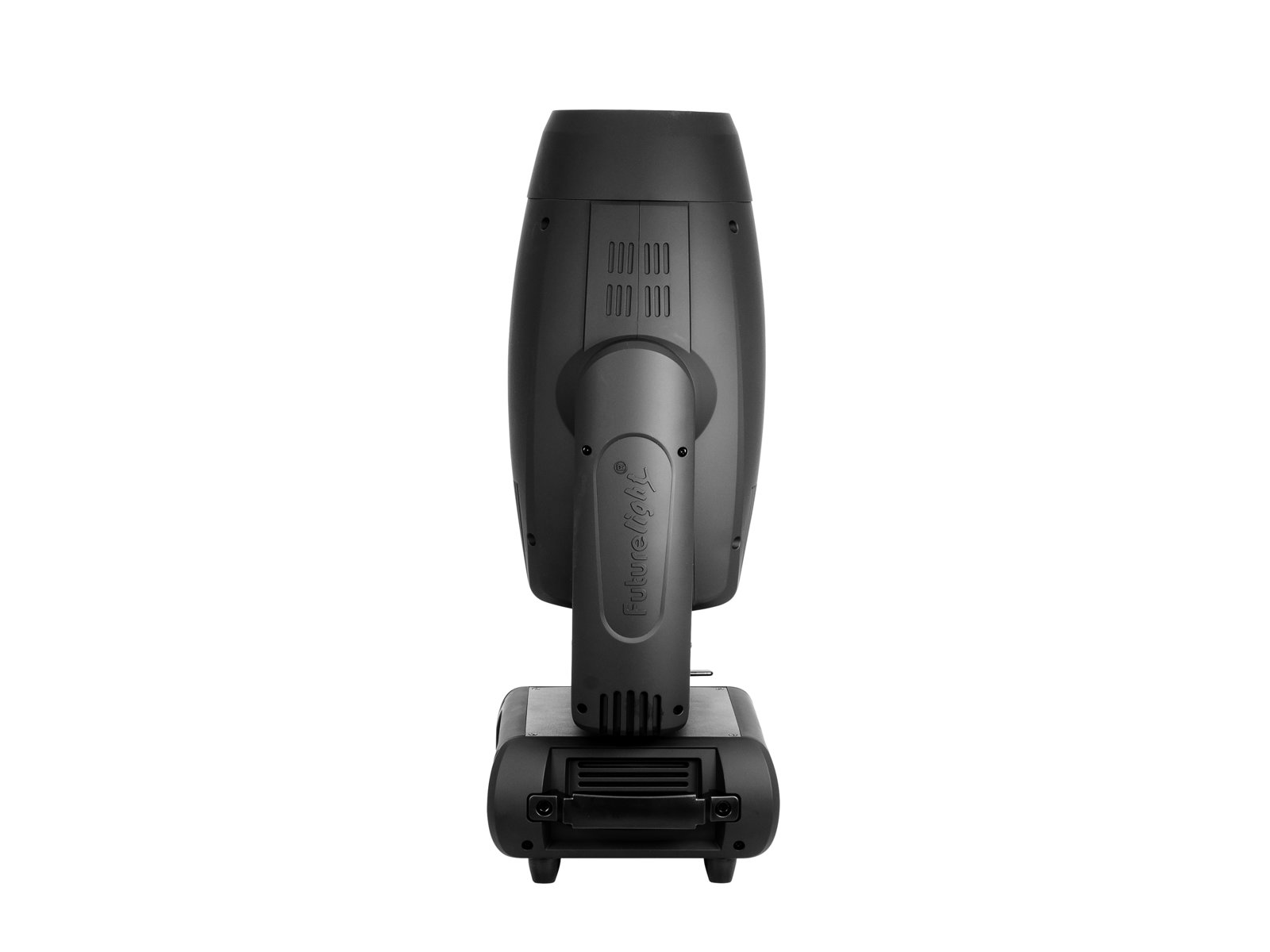

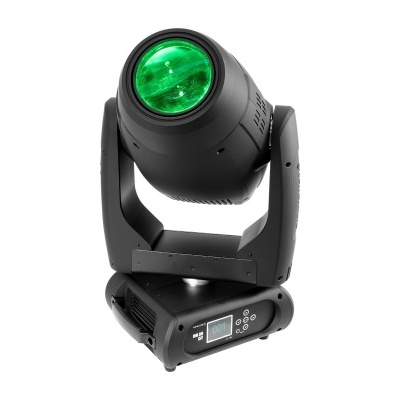

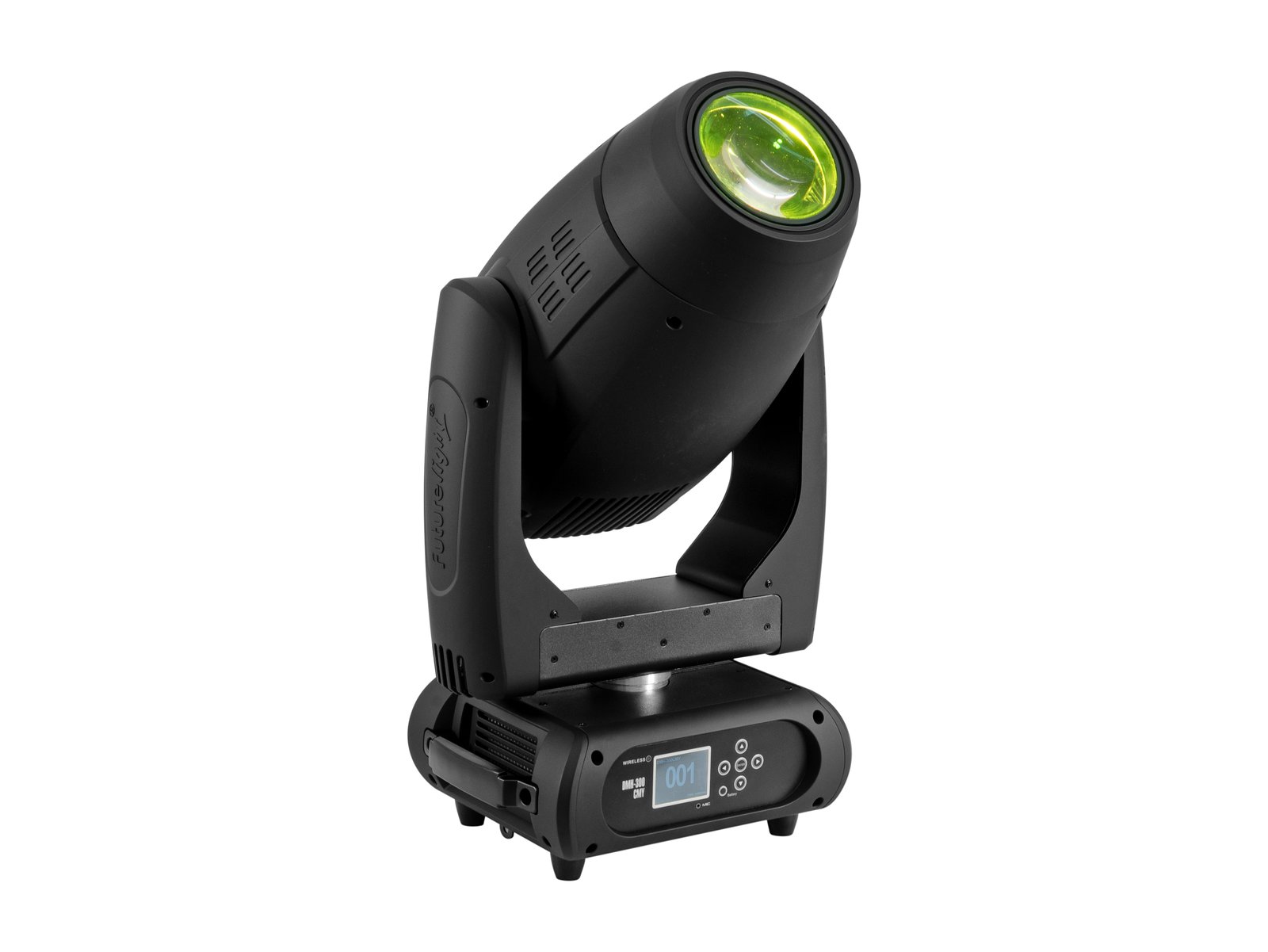

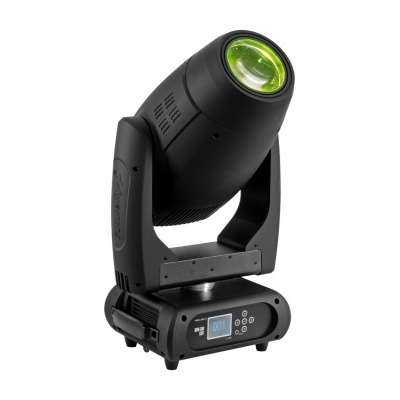

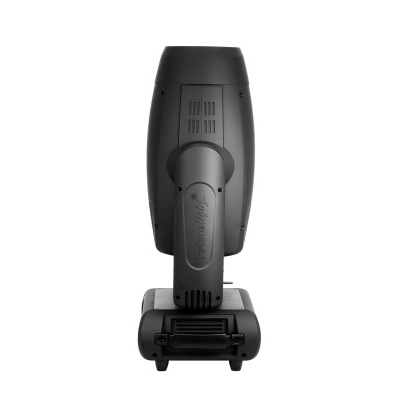

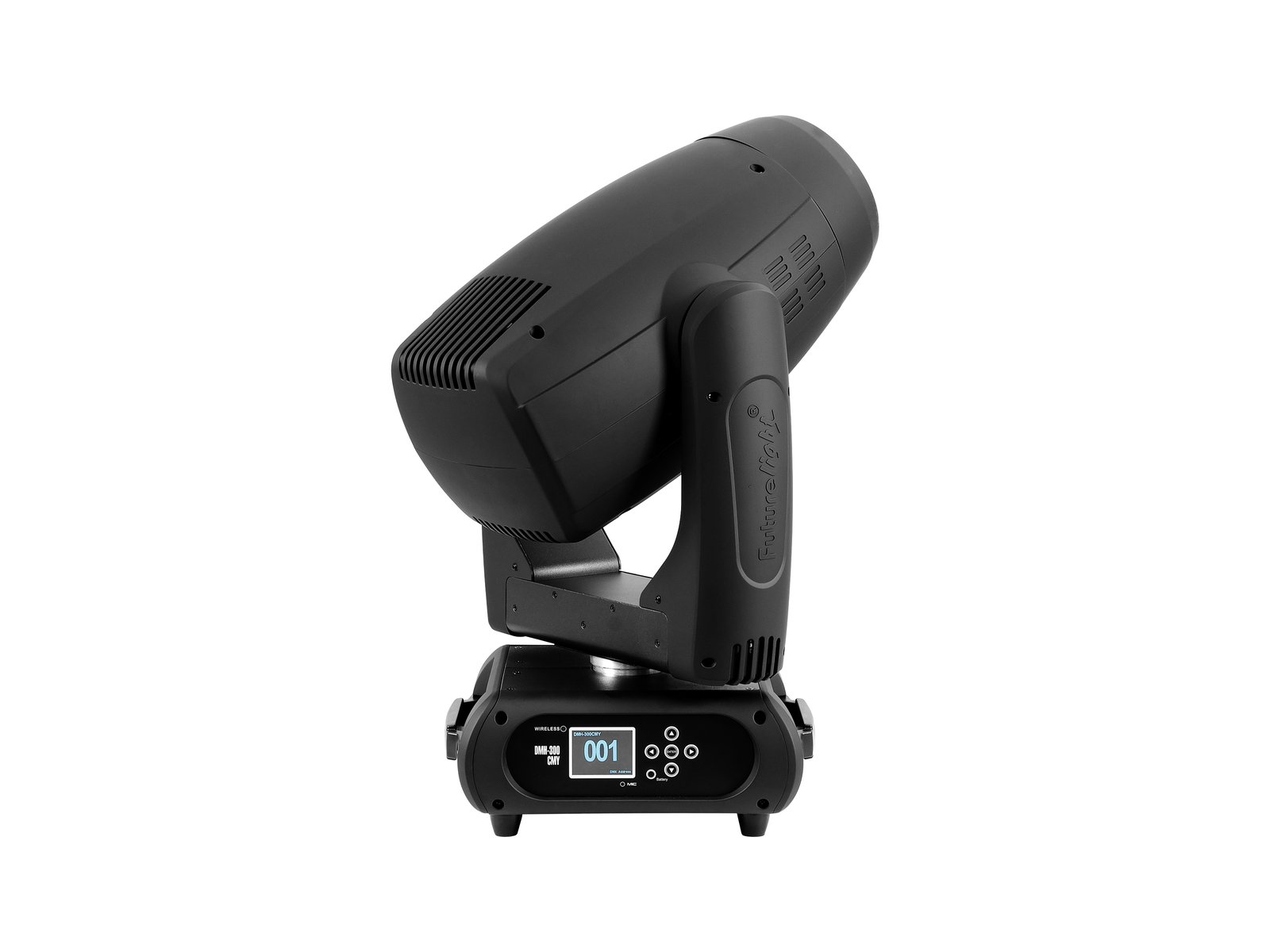

FUTURELIGHT DMH-300 CMY Moving Head
SKU: 51841980
PRO beam/wash moving-head with 270 W COB LED, large zoom and CMY color mixing
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- 1 powerful LED 270 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 265° TILT
- PAN angle switchable between 540° and 630°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold rotating; Zoom motor-driven; Focus motor-driven; frost filter stepless; Iris; Iris stepless
- Gobo effect; beam effect; Strobe effect
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
shake effect - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- The device is cooled by temperature-controlled fan
- Control via stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable
- Flicker-free
- With a beam angle of 8° - 44°
- LCD display
- Dimmer electronic; pulse-width modulation adjustable
- CMY+CTO color mixing for indefinite color variations
- Preprogrammed in Light Captain
- For application areas such as: Wedding/gala/events; Stage; theater; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 1 x xLR cable, 1 x plate
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 340 W |
| IP classification: | IP20 |
| Power connection: | Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 1 x 270 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 265° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540°, 630° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Equipment: | Gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold rotating; Zoom motor-driven; Focus motor-driven; frost filter stepless; Iris; Iris stepless |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 19; 21; 28; 29 |

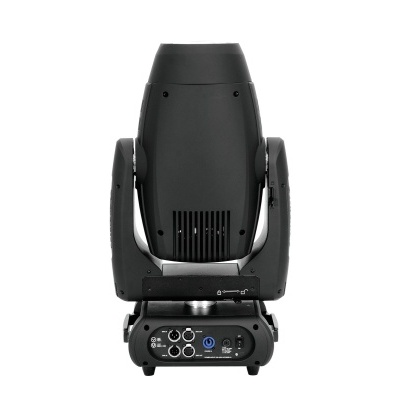

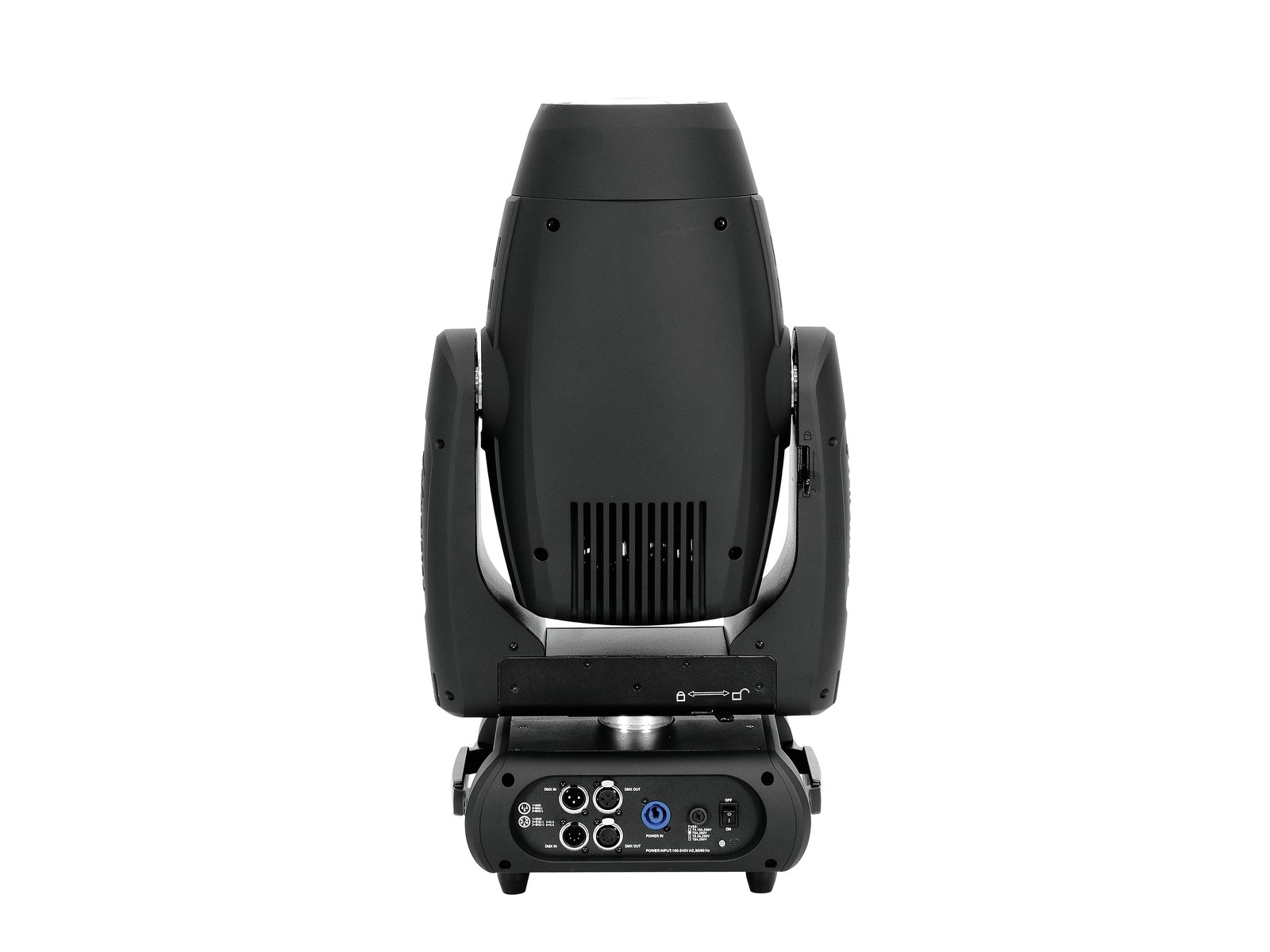

| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable |
| Preprogrammed in: | Light Captain |
| Beam angle: | 8° - 44° |
| Beam angle (1/2 peak): | 8 - 44° |
| Beam angle (1/10 peak): | 8 - 44° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 58069 lx, 6m: 12229 lx Wide cold white (CW) 3m: 2745 lx, 6m: 736 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 44,5 cm Depth: 36,9 cm Height: 53,4 cm |
| Weight: | 25,10 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
