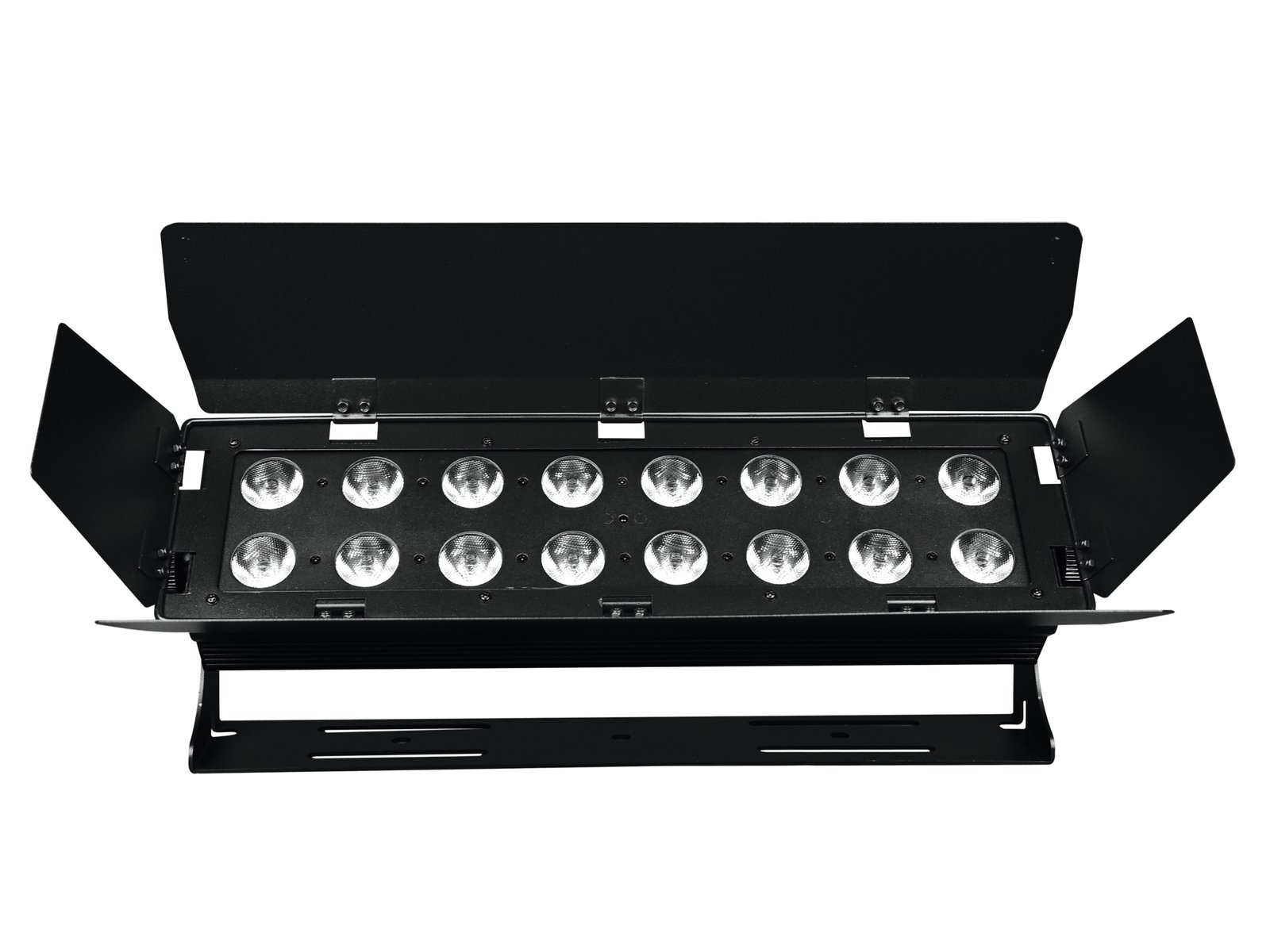

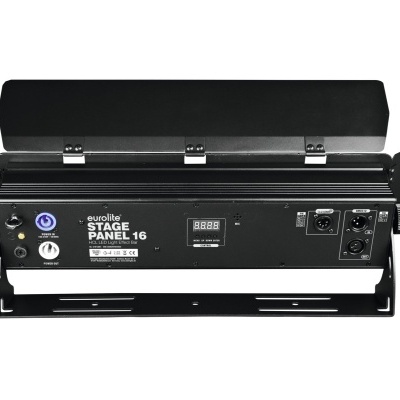

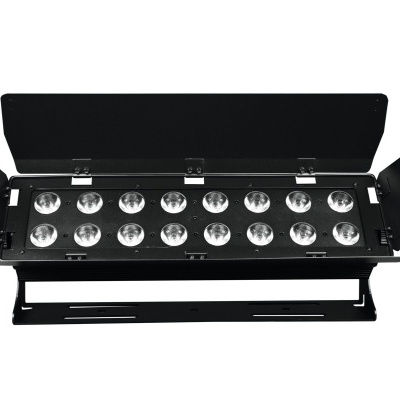

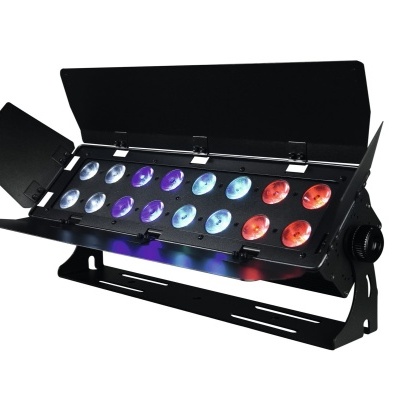

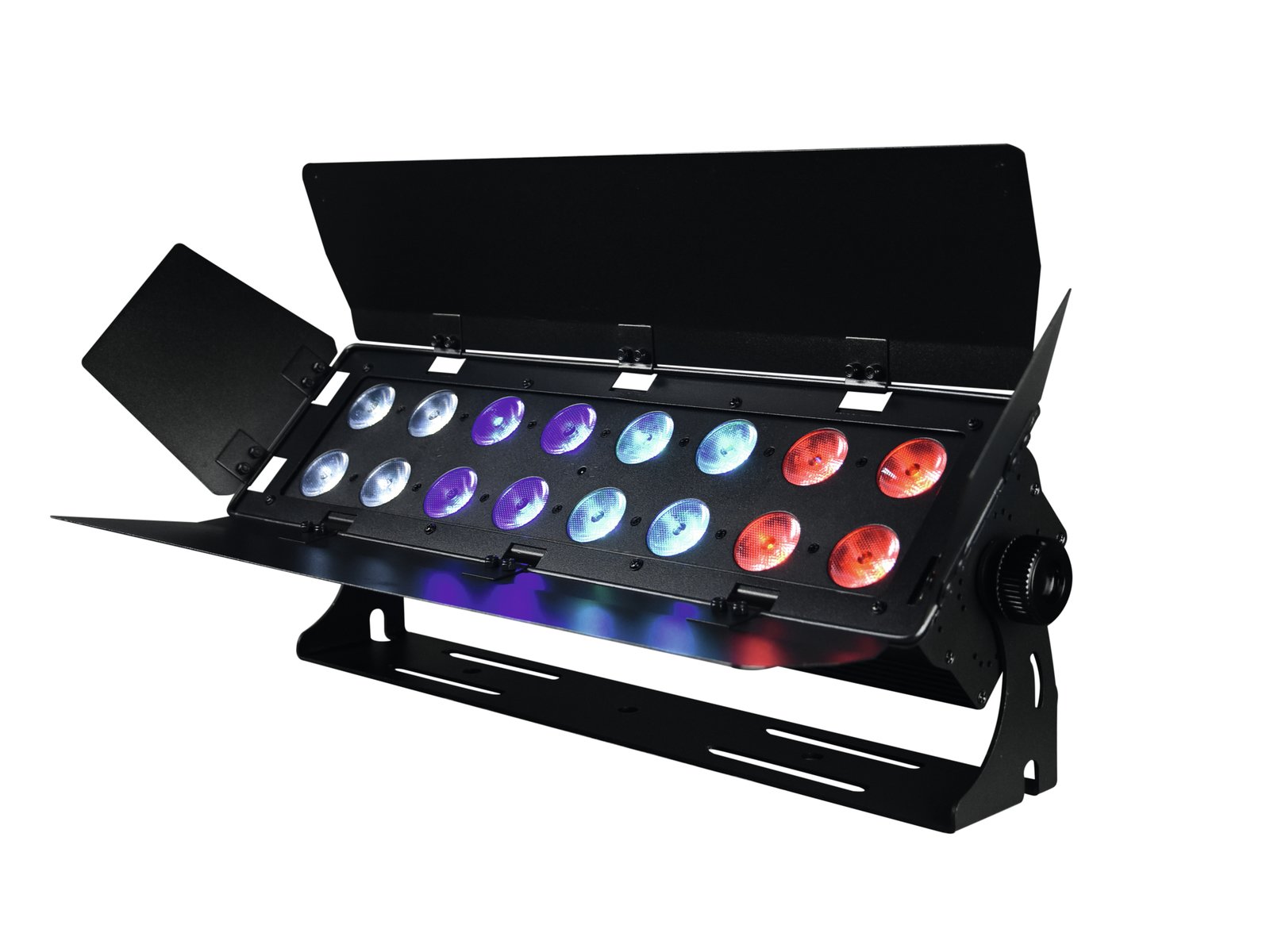

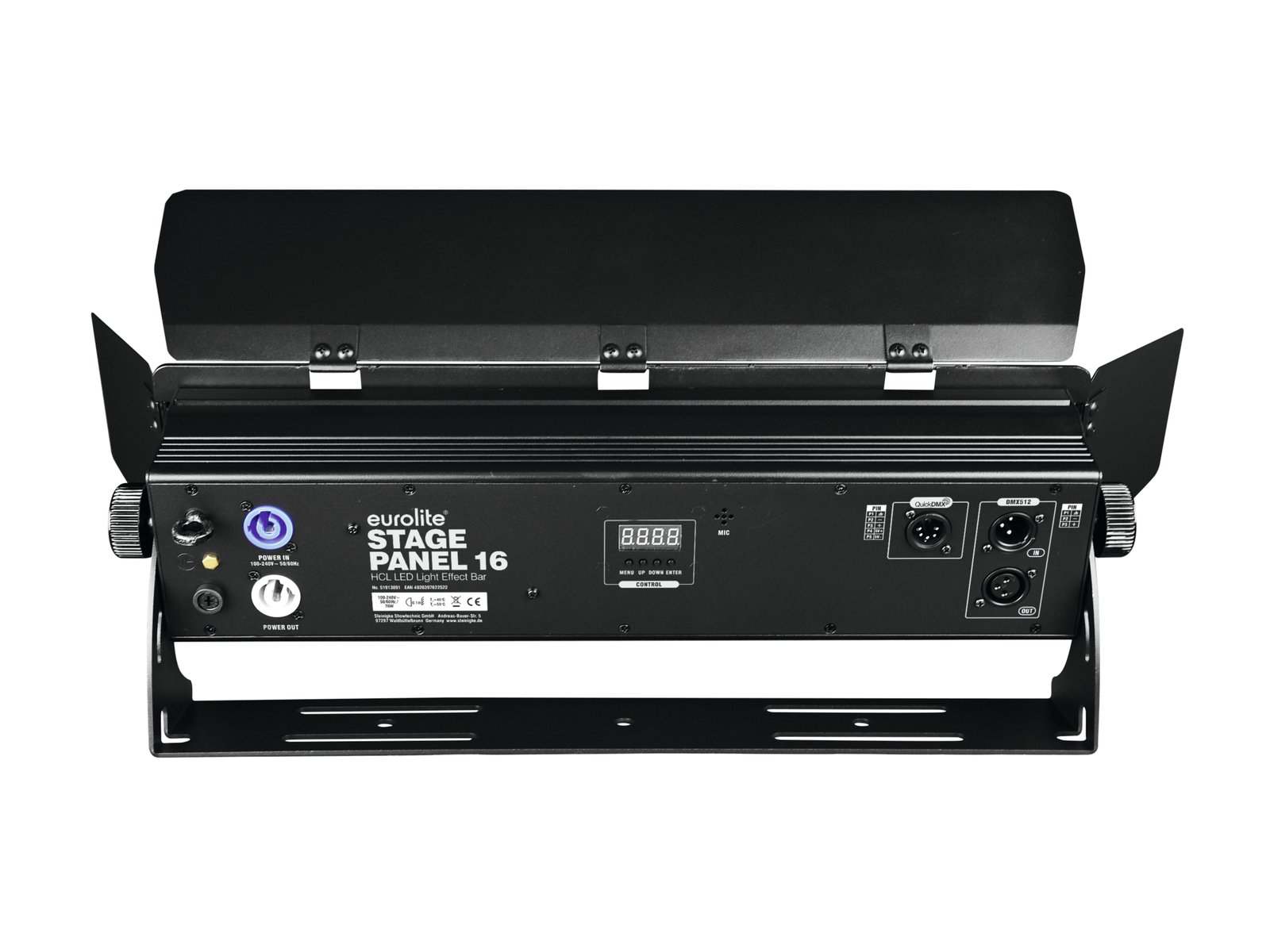

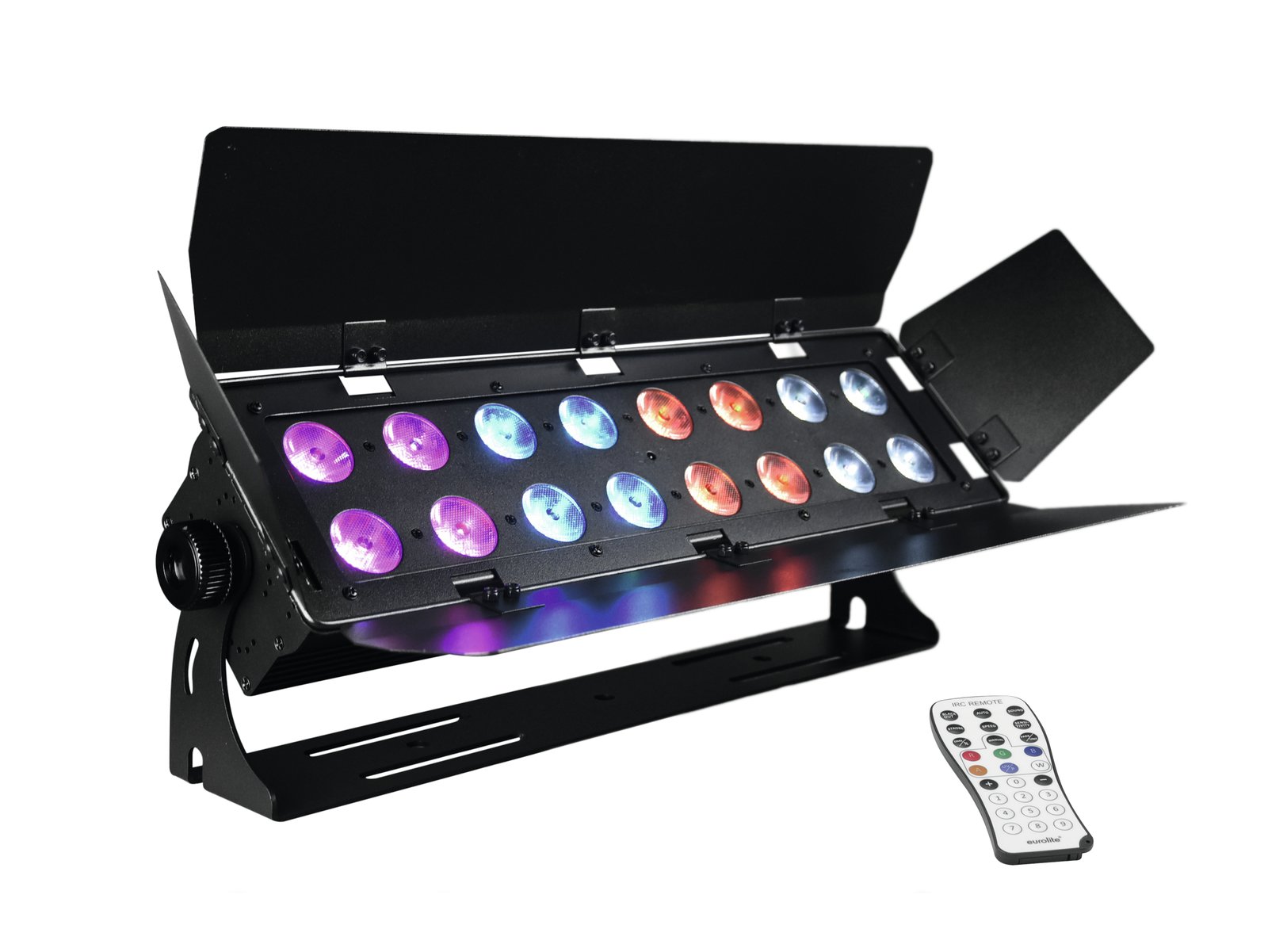

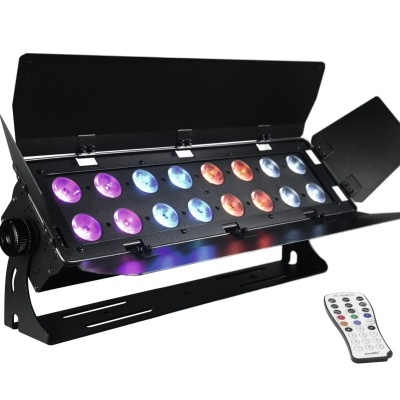

EUROLITE Stage Panel 16 HCL LED
SKU: 51913891
Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 4 segments for dynamic running lights
- 4 barn doors to avoid blinding the audience and for protection during transport
- 16 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 26 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
- Flicker-free
- With a beam angle of 23°
- With Mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; Stage; mobile djs/entertainer; small rental
- Silent operation
- Application possibility: Standing; suspended; on tripod
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x remote control, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 16 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 3; 5; 6; 8; 11; 24; 32 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 23° |
| Beam angle (1/2 peak): | 23° |
| Beam angle (1/10 peak): | 42° |
| Wavelength: | Ultra violet (UV) 400 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Metal, painted; Aluminum casting |
| Dimensions: | Width: 59,1 cm Depth: 19,9 cm Height: 30,3 cm |
| Weight: | 5,35 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 4 x Ø10mm |
| Material: | Metal, 3 mm |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Barndoor | |
| Material: | Metal, 0,8 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
