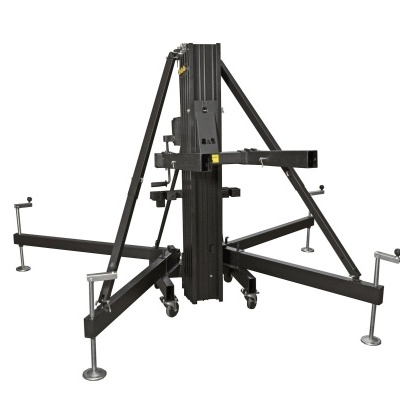

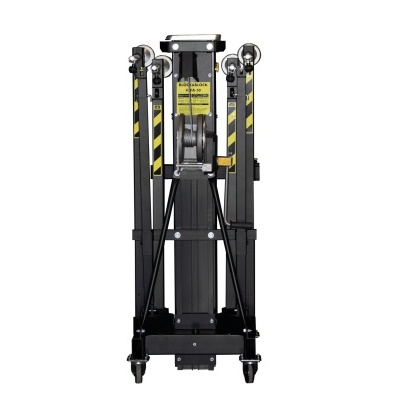

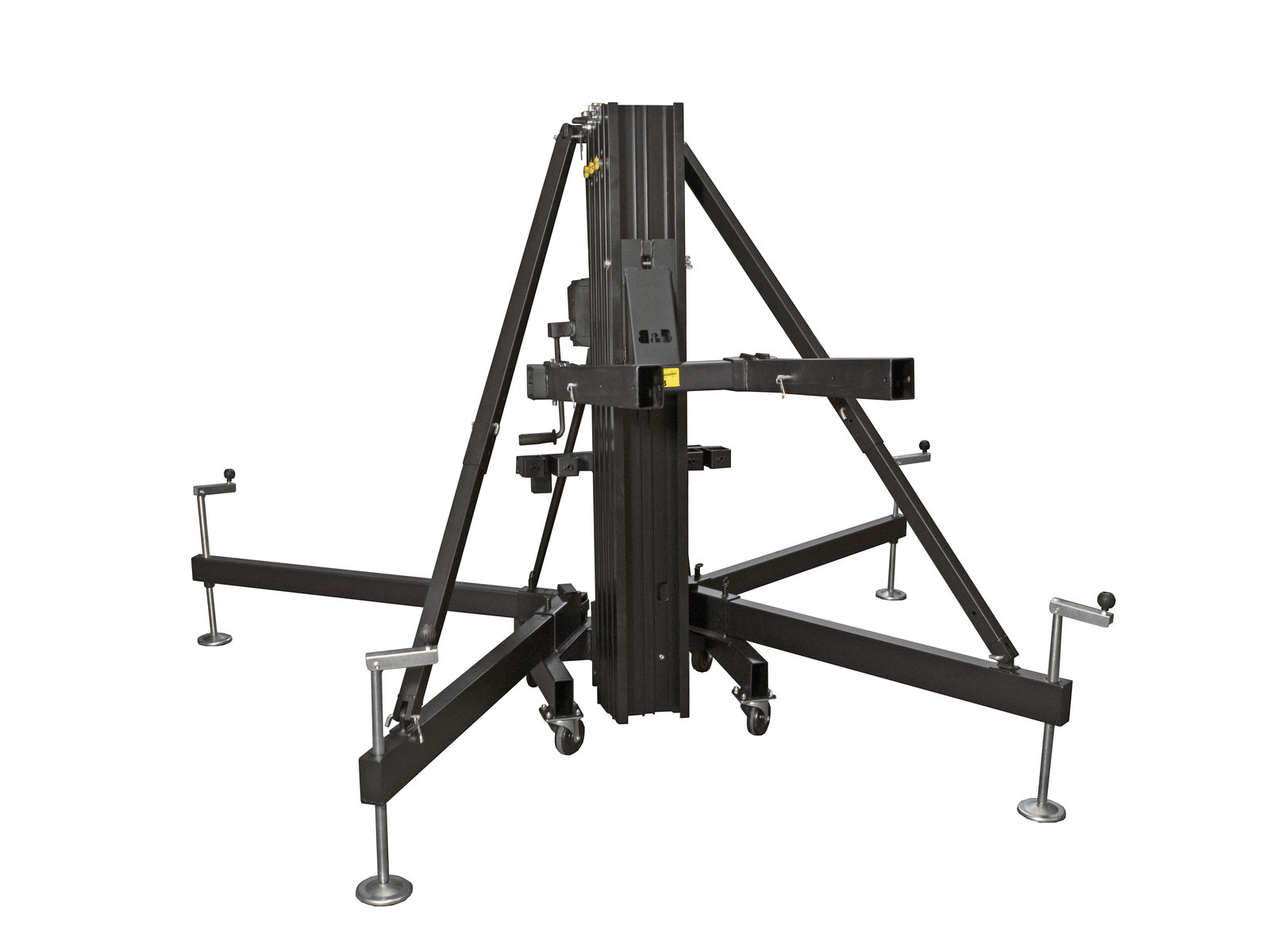

BLOCK AND BLOCK ALFA-50 Truss lifter 550kg 5.1m
BLOCK AND BLOCK ALFA-50 Truss lifter 550kg 5.1m
BLOCK AND BLOCK ALFA-50 Truss lifter 550kg 5.1m

BLOCK AND BLOCK ALFA-50 Truss lifter 550kg 5.1m

SKU: 5900043E

4.462,56 €
23% IVA is added to the price of the product.
Compre este produto e ganhe 4462 Pontos!
Contact

Add to wishlist



High-quality truss lift for loads up to 550 kg, made in EU

  • Four-part telescopic ground support
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO 1201 PLUS winch: maximum load 1350 kg with automatic holding brake
  • Galvanized steel ropes 7x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Complies with DIN EN 13157 and EN 12100 I und II
  • Adjustable height



Maximum carrying capacity: 550 kg
Standard: DIN EN 13157, EN 12100 I und II
Height: Maximum: 510 cm above 4 sections
Minimum: 166 cm
Type (general stands): Truss lifter
Weight: 207,00 kg
Brand BLOCK AND BLOCK
