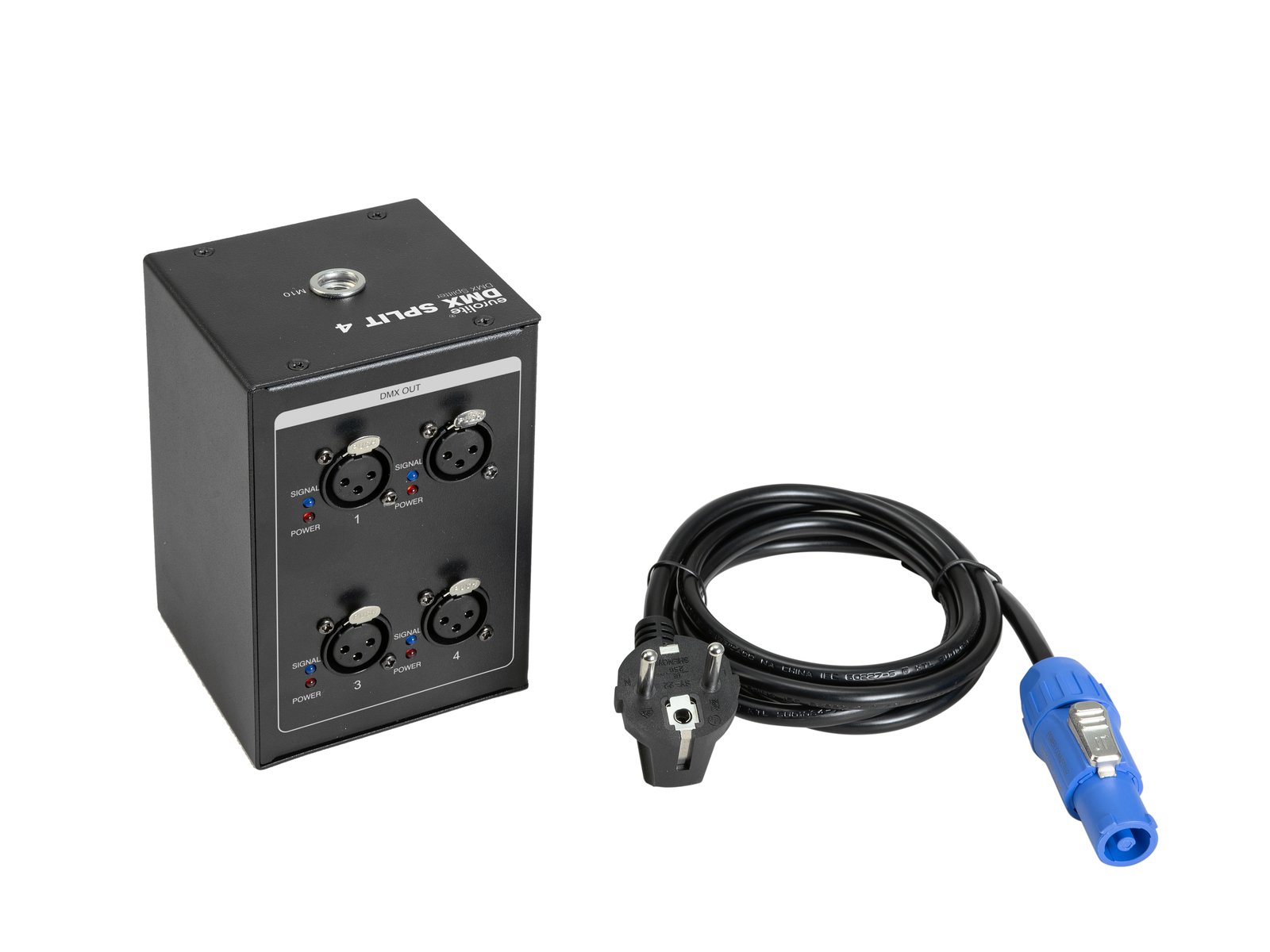

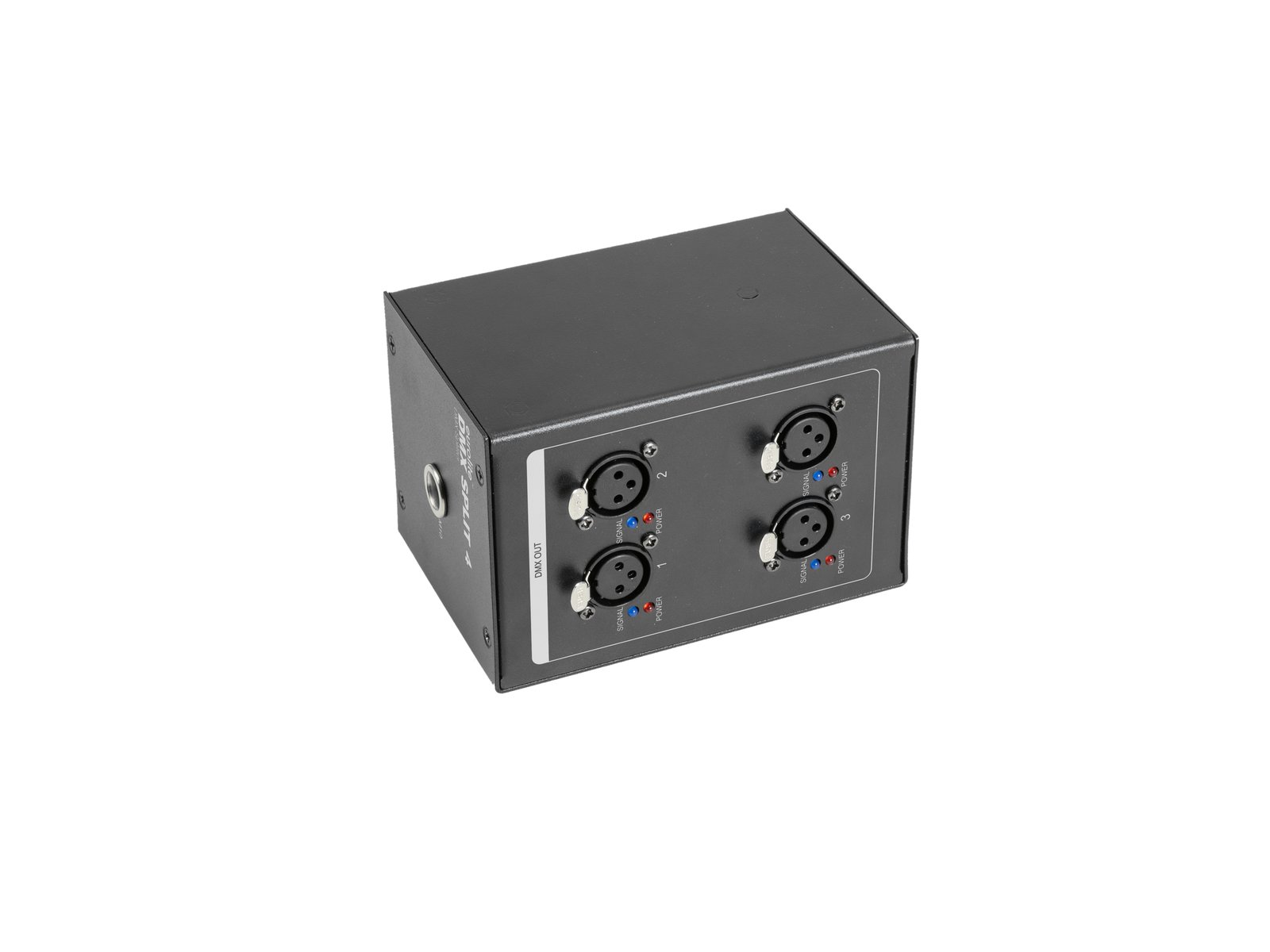

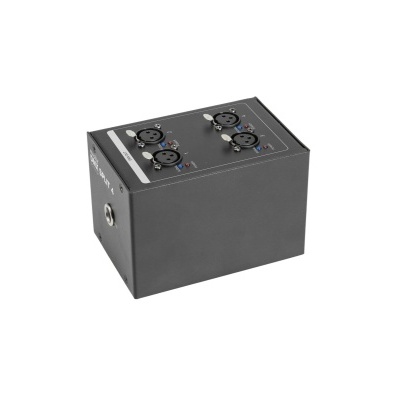

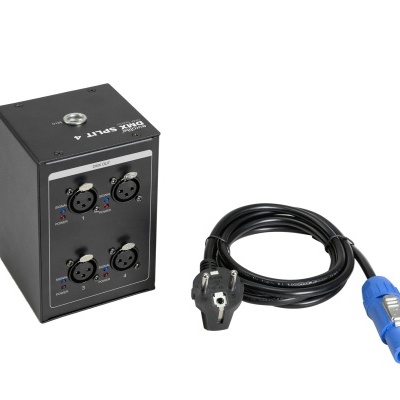

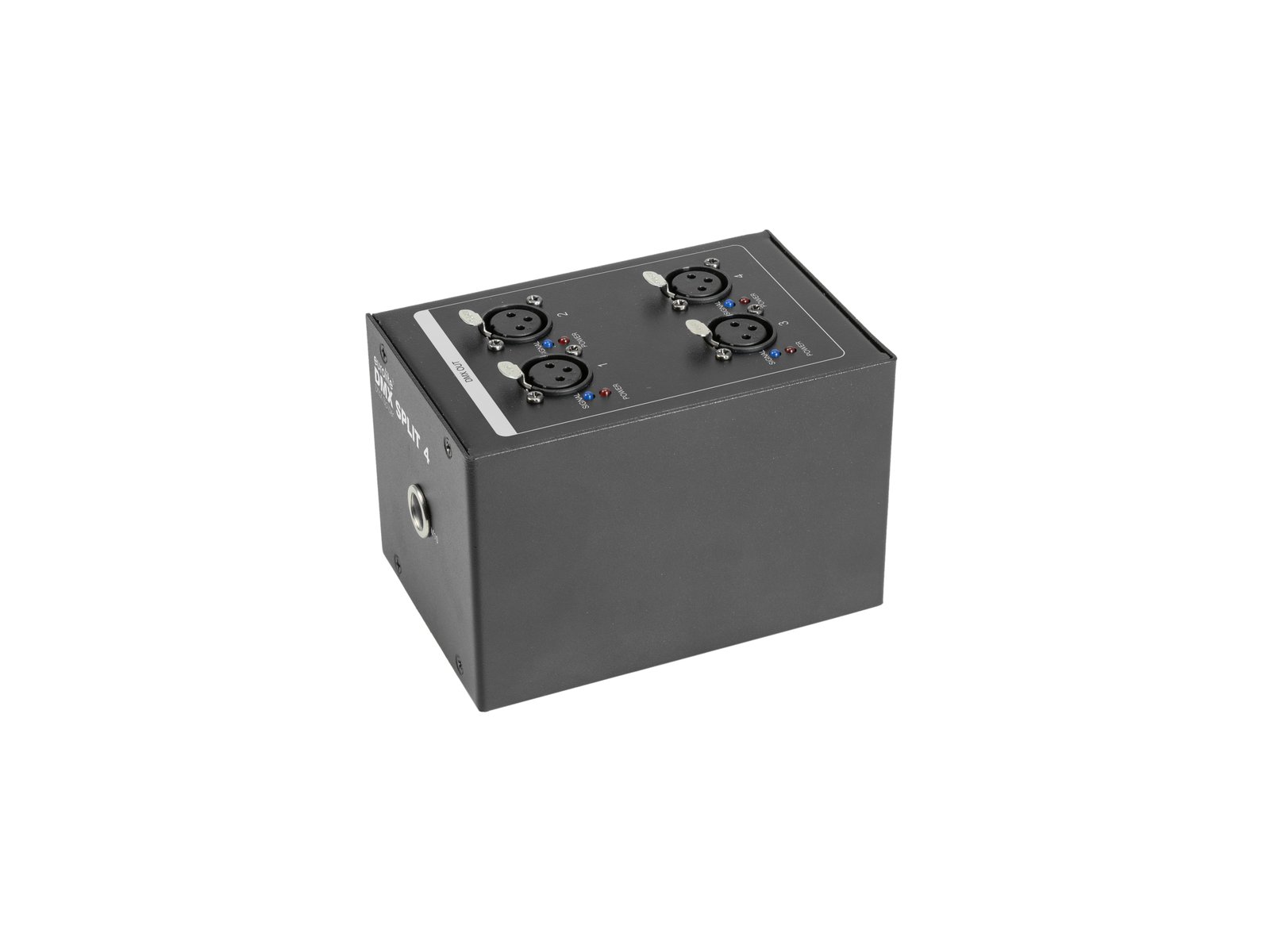

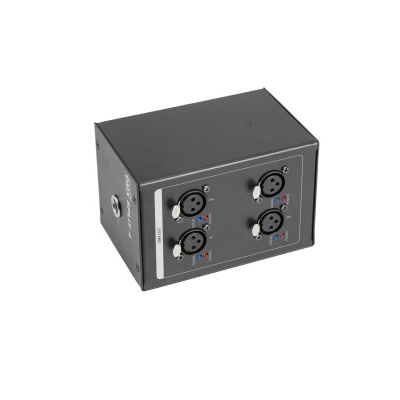

This compact 4-fold splitter is designed for reliable distribution of DMX512 signals in rigs. The unit features 3-pin XLR connectors with status indicators, and a M10 threaded insert for truss attachment. Delivery includes a power cord.
4-fold DMX splitter for truss mounting
Mini splitter with 3-pin XLR terminals
Rugged metal housing
Package contents
1 x device, 1 x power cord, 1 x user manual, 4 x foot
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
1,5 W
Output current:
Max. 10 A

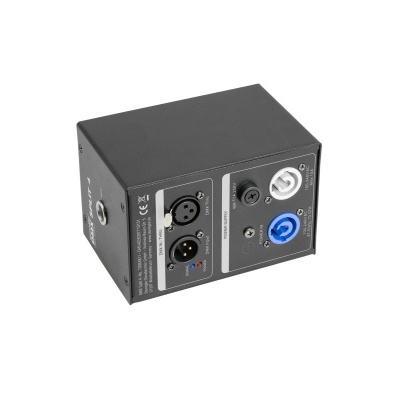

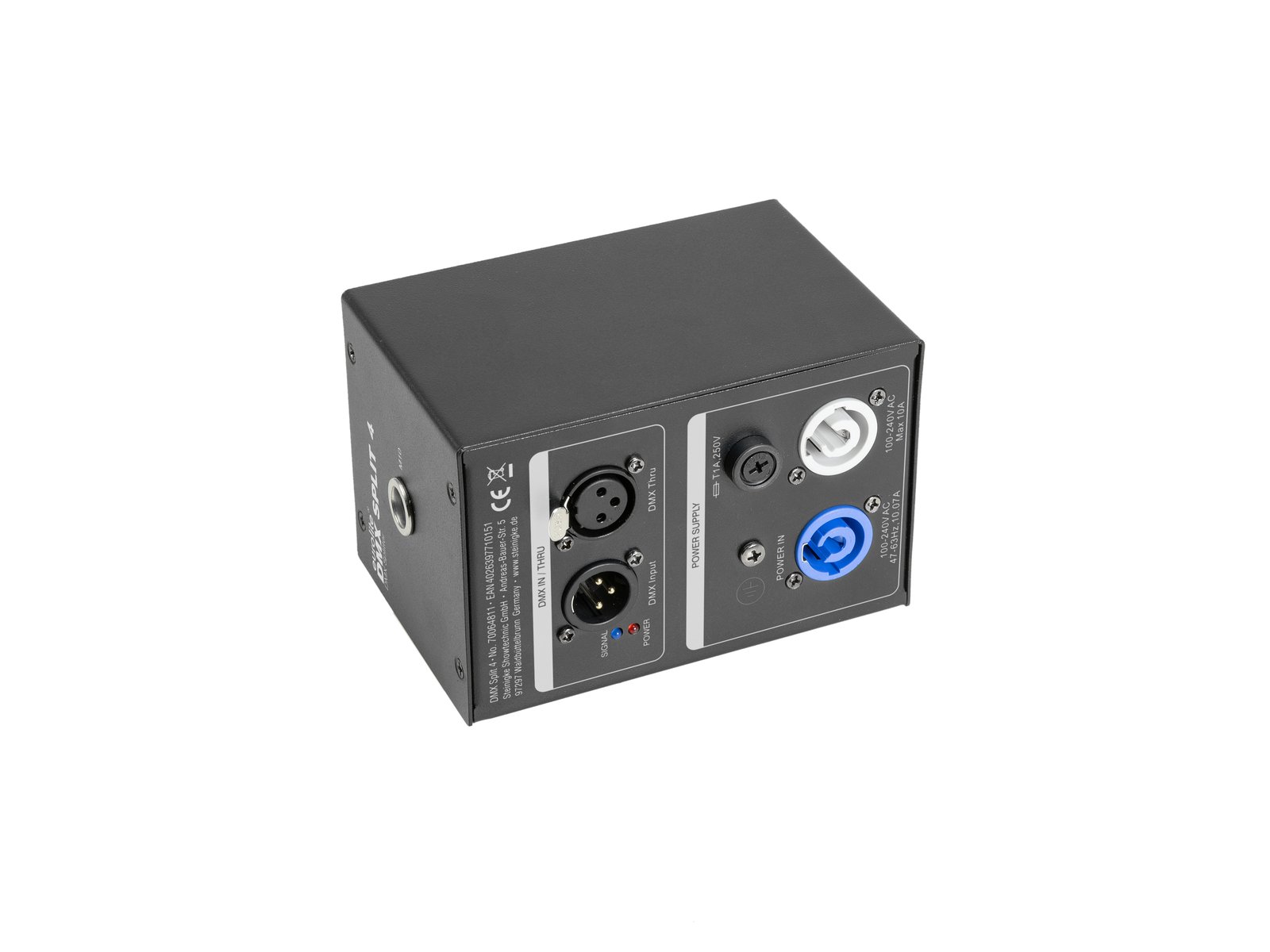

Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
4 x 3-pin XLR (F) mounting version Separate (galvanic) 1 x 3-pin XLR (F) mounting version Bypass
