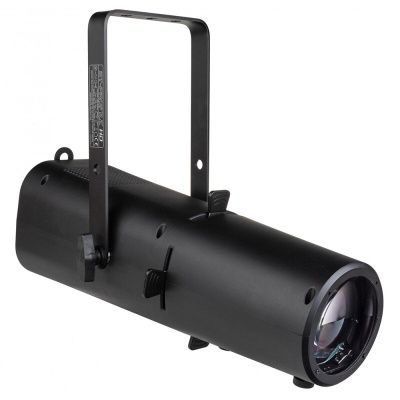

Briteq -PROFILE HD - Very compact, full color LED profile with 4 blades and 25° - 50° zoom

Very compact, full color LED profile with 4 blades and 25° - 50° zoom
Very compact, all-in-one, full color LED profiler with 4-blade shutter to make sharp beam cuts and integrated manual zoom 25°-50°. No more need for separate projectors for white and color, BT-PROFILE HD does it all!

Main features

Perfect white with high CRI > 90Ra and CCT presets
Rich color selection with color presets
Thanks to the CCS Color Calibration System, the color differences between different batches is a problem of the past, while this profile also works perfectly together with our existing BT-THEATRE HD2:
The same CCT presets for white, ranging from 1800 K to 10000 K!
The same 48 calibrated color presets (according to LEE / ROSCO numbering)
Based on a 150 W 5-color RGBAL (red, green, blue, amber, lime) LED-cluster
Very silent operation with low noise cooling fan and different presets (live, studio, …)
DMX-controlled: 6 different channel modes for maximum flexibility
RDM-functionality for easy remote setup: DMX addressing, channel mode, …
Flicker free TV recordings thanks to the adjustable high LED refresh rate!
Four dimmer settings with different behavior e speed
Manual control for dimming, colors, CCT & zoom
OLED-display to navigate easily through the setup menu
In case of DMX failure, you can choose between blackout and freeze mode
Lock function to avoid unwanted altering of the settings
Lightweight but rugged housing
5-pin DMX IN/OUT + powerCON TRUE1 compatible IN/OUT for easy daisy chaining
User benefits

All-in-one profiler: no need for two separate projectors for white and color
High color quality thanks to accurate calibration
Very quiet operation
Flicker-free TV recordings thanks to high LED refresh rate
Areas of use

Theatrical
TV studios
Live performances
Presentations
Permanent installations in museums and art galleries
Technical characteristics

 Power input
 100 - 240 VAC 50/60 Hz
 Power consumption
 170 W
 Color
 black
 Display
 OLED
 Fixation
 optional standard clamp
 IP rating
 indoor
 Modes
 stand-alone fixed, stand-alone auto, manual, DMX, Master/Slave
 Protocol
 DMX, RDM
 Programmable
 yes
 Min. DMX channels
 3
 Max. DMX channels
 18
 Lux
 1098 @ 5 m (beam 25°)
 Lumen
 4088
 Lamp
 LED
 CRI
 90
 Colors
 red, green, blue, amber, lime, RGBAL
 Mix colors
 yes
 Functions
 manual focus, manual zoom
 Min. beam angle
 25°
 Max. beam angle
 50°
 Max. refresh rate
 25 kHz
 Input
 5-pin XLR, powerCON TRUE1 or compatible
 Output
 5-pin XLR, powerCON TRUE1 or compatible
 Dimensions
 22.4 x 19.1 x 56.8 cm
 Weight
 6.5 kg
