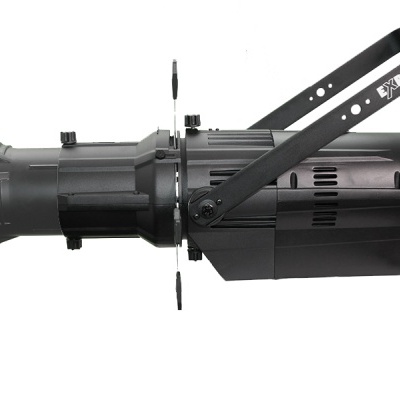

Expolite LED Profile XAL MKII + Shutter attachment, RGBAL

The ProfilLED XAL MKII opens up completely new paths as a color mixing artist for the professional theater sector. True to the motto "Goodbye color filters! Welcome 16-bit color mixing!" the ProfilLED XAL MKII, with a power consumption of only 300W and low heat emission, creates an extremely efficient lighting tool, not just for classic lighting situations. Equipped with an Osram RGBAL LED chip and thanks to HSIC Color Management, it produces perfectly pure white light tones from 2,700 to 8,000K as well as the complete color spectrum, all displayed without color shadows thanks to high-quality optics. In quick practical applications, many pre-installed color macros are available. A stepless adjustment of the color temperature rounds off its usage perfectly. As expected, the ProfilLED XAL MKII features a high-quality shutter system for crystal-clear edges, a gobo slot, various dimming curves, Seetronic in/out, and robust touring-grade brackets with 3/5-pin DMX connectors. A wide range of accessories, as well as the ability to use many existing tubes, make the ProfilLED XAL MKII a solid companion for various applications. In brief: - Spotlight comparable to the 750/1000 watt halogen class - 250-watt RGBAL high-power Osram LED - state-of-the-art color mixing without color shadows - 2,700K to 8,000K - very stable color temperature - CRI>90RA - compatible with standard optics - Light output: 9400lm - Studio mode for nearly silent operation



















Technical data:

Dimension:
702 x 301 x 233 mm
Beam angle:
15° - 50°, depending on the optics
Connection:
Seetronic Power in/out
Control:
DMX512, RDM, XLR 3/5-pol in/out
DMX channels:
5 modes (6/8/10/11/17)
Framing:
4 pieces, can be operated manually
CRI:
>90 Ra
Display:
LCD
Color temperature:
2.700 K - 8.000 K
Housing:
Aluminium
Protection class:
IP20
Weight:
10,30 kg
Cooling:
Live, Studio, Power modes
LED:
1 x 250 W Lumileds RGBAL
Power consumption:
300 Watts
Luminous flux:
9.400 lm
PWM:
600 Hz - 25.000 Hz
Ambient temperature:
0° C - 45° C
