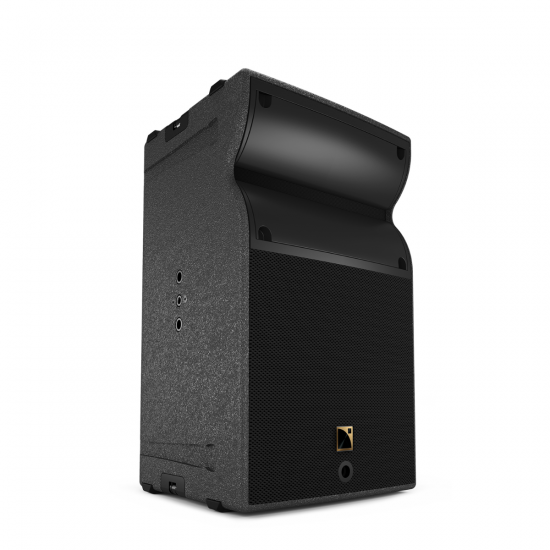

L-Acoustics - A10 Focus - 2-way 10° enclosure
SKU: LA30405F
L-Acoustics - A10 Focus
The new A15 and A10 systems deliver renowned L-Acoustics concert performance and reliability for audiences from 50 to 5,000. Mounted on a pole, stacked on the companion KS21 or flown in vertical or horizontal arrays, the new A Series family combines plug-and-play ease and international market acceptance. This versatile solution, with adjustable directivity, scales with the needs of your company and is your gateway to the L-Acoustics rental network. A Series can take you anywhere you want to go.
2-way 10″ passive enclosure
Narrow coverage for projection up to 35 m (10° enclosure)
Exceptional LF capability (10 dB contour)
High output (140 dB SPL max)
Flexible coverage (Panflex)
Lightweight (22 kg)
Weather resistant (IP55)Plug-and-play simplicity
Description: 2-way passive constant curvature WST 10°, amplified by LA4X / LA8 / LA12X
Usable bandwidth: (-10 dB) 66 Hz - 20 kHz ([A10])
Maximum SPL1: 140 dB ([A10])
Nominal directivity Enclosure: 10° Panflex: 70° / 110° symmetric or 90° asymmetric
Transducers LF: 1 × 10’’ neodymium cone driver HF: 1 × 2.5’’ diaphragm neodymium compression driver
Acoustical load LF: Bass-reflex, L-Vents HF: DOSC waveguide, Panflex
Nominal impedance: 8 Ω
Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling: Flush-fitting two-point rigging system 1 handle, 8 corner stops and 2 ground runners
Safety: DIN580-compatible M8 insert Weight (net): 22 kg / 49 lb
Cabinet: Premium grade Baltic beech and birch plywood
Front: Coated steel grill, Acoustically neutral 3D fabric
Rigging components: High grade steel with anti-corrosion coating
Finish: Dark grey brown Pantone 426 C
IP: IP55
| Brand | L-Acoustics |
|---|
