L-Acoustics - A10 Wide - 2-way 30° enclosure
L-Acoustics - A10 Wide - 2-way 30° enclosure

L-Acoustics - A10 Wide - 2-way 30° enclosure

SKU: LA3040W

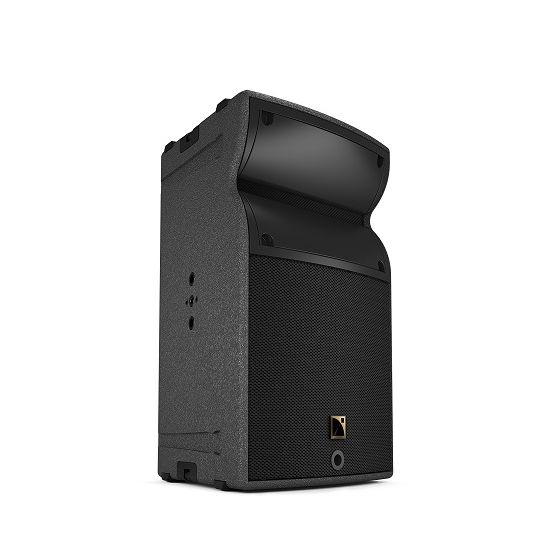

L-Acoustics - A10 Wide
A10 Wide is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A10 family, the passive 10“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance.

The 30° enclosure of A10 Wide enables a compact array to provide expansive coverage while preserving sightlines. Panflex allows users to adapt directivity to the audience geometry and ensure exceptional frequency response stability.

Combinations of A10 Wide and A10 Focus can be flown or stacked to form a vertical line source. A10 Wide can also be used individually as a configurable directivity point source for delays and pole-mounted applications.

A10 Wide deploys radially to offer extensive horizontal coverage with few elements and delivers strong LF resources adapted to live concerts. The companion subwoofer KS21 further reinforces contour and extends bandwidth to 31 Hz for demanding applications.  A10 Wide is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution as fills or delays.

Description:

2-way passive constant curvature WST 30°,
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)

67 Hz - 20 kHz ([A10])
Maximum SPL1

137 dB ([A10])
Nominal directivity

Enclosure: 30°
Panflex: 70° / 110° symmetric or 90° asymmetric
Transducers

LF: 1 × 10’’ neodymium cone driver
HF: 1 × 2.5’’ diaphragm neodymium compression driver
Acoustical load

LF: Bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance

8 Ω
Connectors

IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling

Flush-fitting two-point rigging system
1 handle, 8 corner stops and 2 ground runners
Safety 1

DIN580-compatible M8 insert
Weight (net)

20 kg / 44 lb
Cabinet

Premium grade Baltic beech and birch plywood
Front

Coated steel grill
Acoustically neutral 3D fabric
Rigging components

High grade steel with anti-corrosion coating
Finish

Dark grey brown Pantone 426 C
IP

IP55

Brand L-Acoustics
