L-Acoustics - LC16D
SKU: LA002301

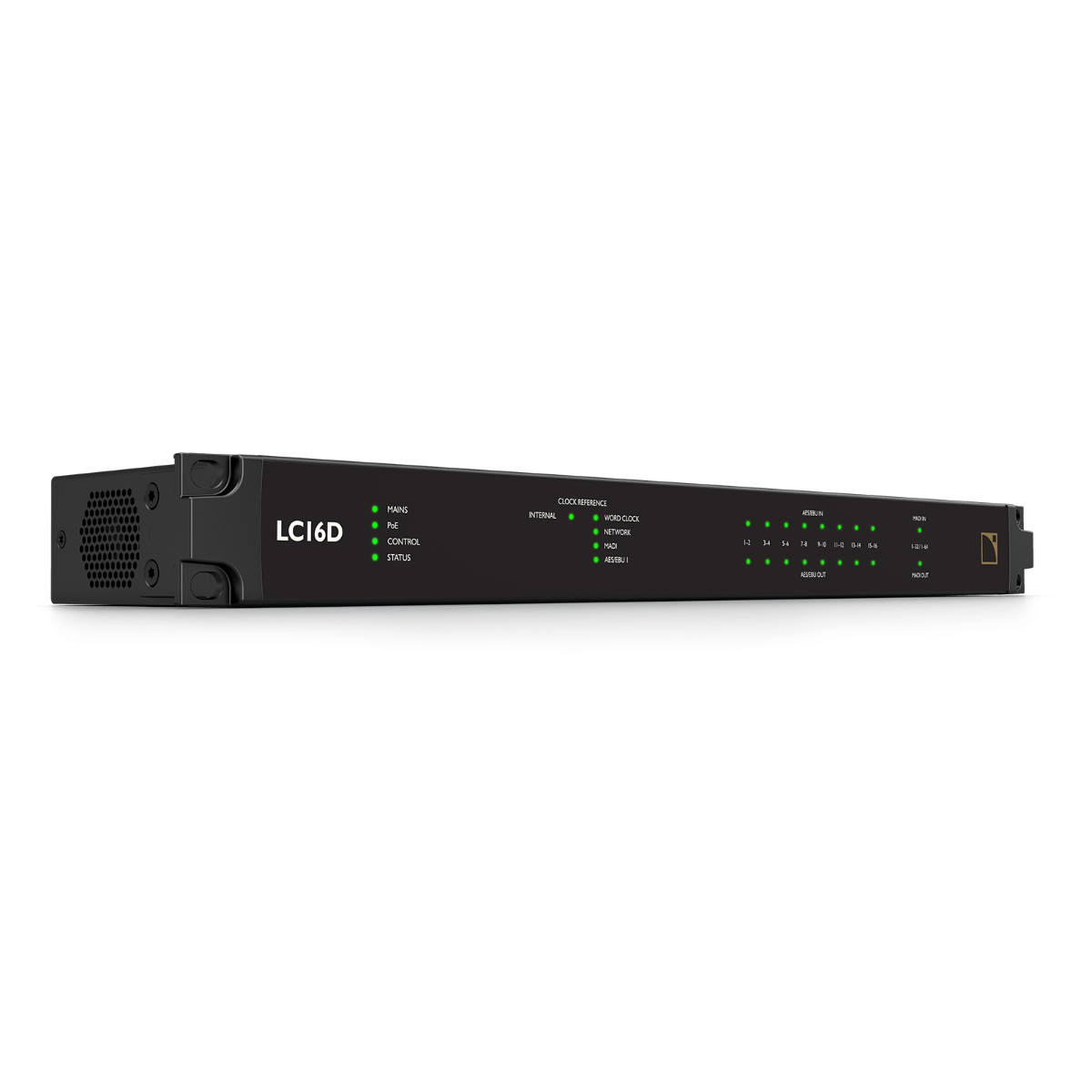

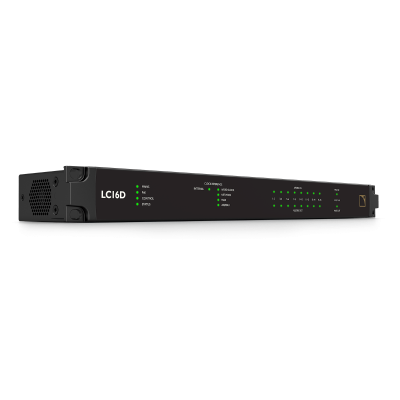

L-Acoustics - LC16D - Network audio converter
A multichannel digital audio converter bridging AES/EBU and MADI digital formats bidirectionally with a redundant Milan-AVB network. 16 AES/EBU inputs, with asynchronous sample rate converters, and 16 AES/EBU outputs are connected through DB25 connectors. 64 MADI inputs and outputs are available when the sampling rate is set to 48kHz and 32 when set to 96 kHz. MADI is connected via two BNC connectors. The 80 input sources and 80 output destinations can be dynamically mapped to and from the Milan-AVB network using 16 streams of up to 8 channels. The clock reference is selectable from any one of six sources, the selected clock source is distributed to all outputs. BNC connectors are provided for Word clock input and output. Two Ethernet connections are provided for audio, remote control, and monitoring. A combination of the internal PSU and the dual, PoE-supporting, Ethernet ports provide power redundancy. Remote control and monitoring are accomplished via an embedded web interface accessible from any device with a web browser, with 10 user configuration memory locations available. A 10-point terminal block connector provides configurable GPIOs and 12V DC output. Housed in a compact and rugged 1RU chassis, heat is dissipated by a low noise temperature-controlled fan.
Overview
16 AES/EBU input channels with ASRCs
16 AES/EBU output channels
64@48 kHz or 32@96 kHz input channels of MADI
64@48 kHz or 32@96 kHz output channels of MADI
16 streams of up to 8 channels of Milan-AVB inputs
16 streams of up to 8 channels of Milan-AVB output
Milan-AVB seamless redundancy
Embedded web interface for control and monitoring
Dynamic channel mapping
Internal universal power supply unit
2 PoE ports
Power redundancy
Flexible clock reference selection
10 user configuration memories

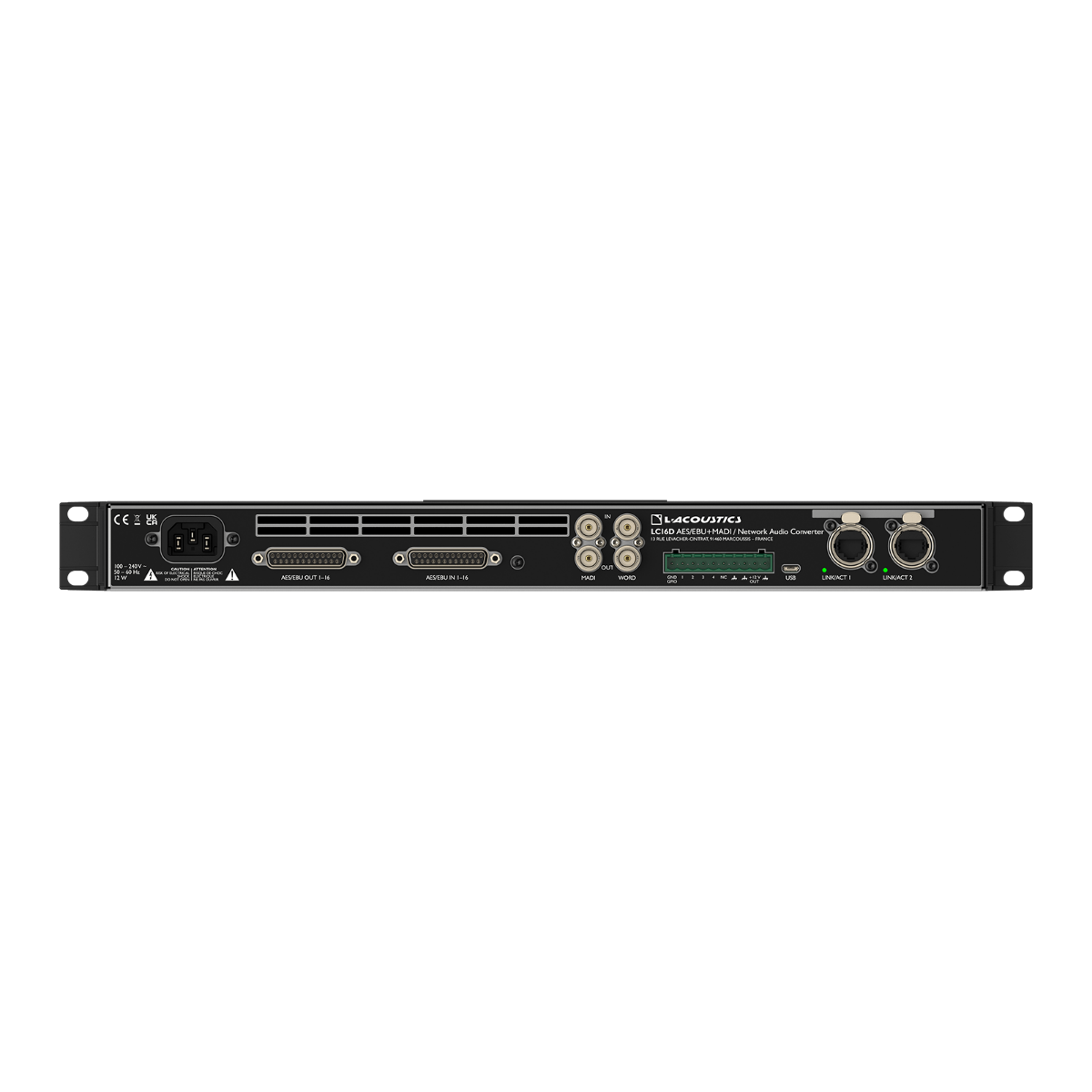

Connections on the rear side
AES/EBU input/output: 2 x DB25 (AES59 pinout standard)
MADI input/output: 2 x BNC
Milan-AVB audio, control, PoE: 2 x 1Gb/s Ethernet connectors
Word clock input/output: 2 x BNC
GPIO interface: 10-point terminal block connector with 4 x configurable GPIO, power supply 12 V
Mains input: 1 IEC C13 V-Lock compatible with on/off switchPower supply: 100 V AC - 240 V AC (± 10%), 50 Hz - 60 Hz

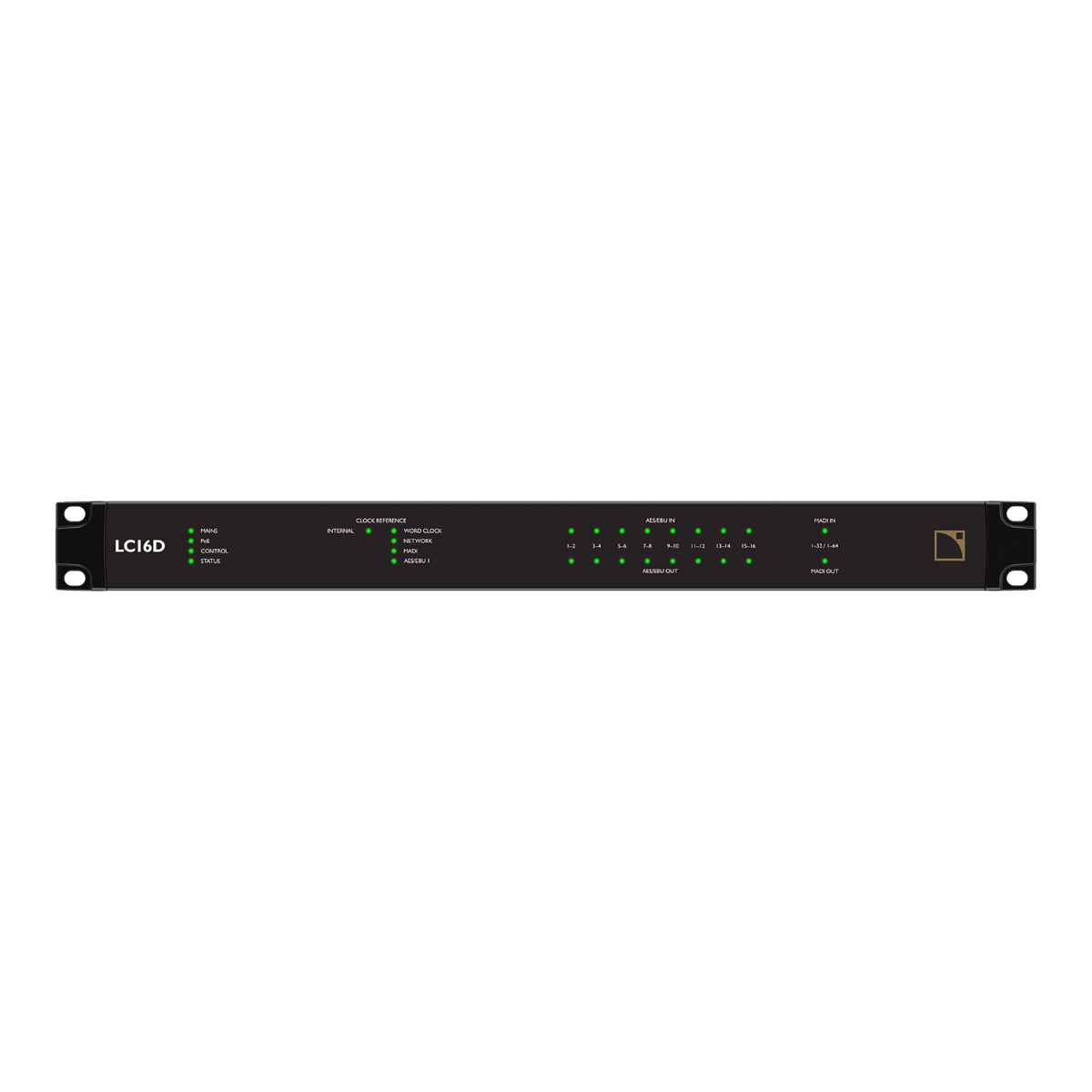

Operation / Display
Control: Embedded web interface
Connection status LEDs: 1 x Mains, 1 x PoE, 1 x control, 1 x Status
Clock Reference LEDs: Internal, Word clock, Network, MADI, AES/EBU 1
AES/EBU input LEDs: 8 x Status, signal, and clip
AES/EBU output LEDs: 8 x Status, signal, and clip
MADI input LED: 1 x Status, signal, and clip
MADI output LED: 1 x Status, signal, and clip
Working and operating conditions
Room temperature: between -5 °C and +50 °C
Cooling: Low noise temperature-controlled fan
Physical data
Dimensions (W, H, D): 483 mm, 44.45 mm, 9 mm / 19 in, 1.75 in, 5.35 in
Rack mounting: 1U
Weight (net): 2 kg / 4.41 lb
IP: IP3x
Finish: Black
Third-party management solutions
HTTP API
Inputs
8 x AES/EBU In with independent ASRCs (16 channels)
64 (48 kHz) or 32 (96 kHz) x MADI In
16 x Milan-AVB streams as listener (up to 8 channels each)
Outputs
8 x AES/EBU Out (16 channels)
64 (48 kHz) or 32 (96 kHz) x MADI Out
16 x Milan-AVB streams as talker (up to 8 channels each)
Milan-AVB input
Milan-certified
Supported standard: Milan-AVB (IEEE 1722, IEEE 1722.1)
Number of input/output streams: 16 / 16
Supported channels per stream: 1 to 8
Supported stream formats: Milan Base Format (IEEE 1722.1 AAF PCM32)
Supported sample rates: 48 kHz or 96 kHz.
Maximum network latency: 2 ms
AES/EBU inputs
Standard: AES/EBU (AES3) or S/PDIF (IEC 60958 Type II)
Supported sample rates: 44.1 - 192kHz
Supported word widths: 16 to 24 bit
ASRC: One per input pair (can be disabled individually)
AES/EBU outputs
Standard: AES/EBU (AES3) or S/PDIF (IEC 60958 Type II).
Supported sampling rates: 48kHz or 96kHz.
MADI
Number of input channels: 64@48kHz or 32@96kHz
Number of output channels: 64@48kHz or 32@96kHz
Audio clock sources
Clock reference sources: Internal, Word clock, Milan-AVB, MADI, AES/EBU input 1.
Supported operating frequencies: 48kHz or 96kHz.
Connectors
AES/EBU input/output: 2 x DB25 (AES59, annex C 8-way pinout)
MADI input/output: 2 x BNC (75 Ω terminated)
Word clock input/output: 2 x BNC (75 Ω terminated)
Milan-AVB/control/PoE: 2 x 1Gb/s etherCONTM
GPIO: 1 x 10-pin terminal block
Mains power: 1 x IEC C13 V-LockTM compatible socket
| Brand | L-Acoustics |
|---|
