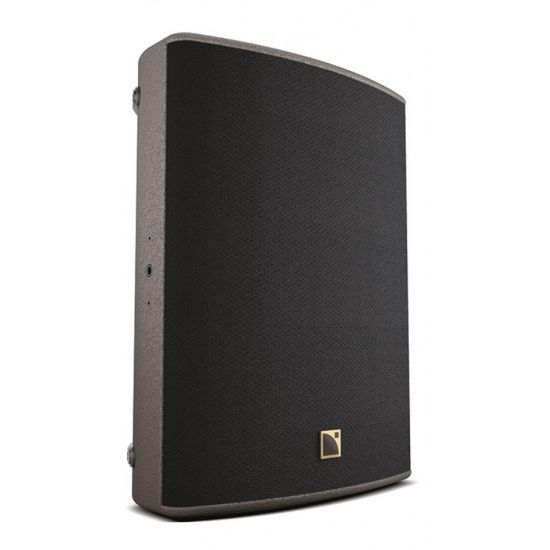

The X15 HiQ features a 3’’ diaphragm compression driver coaxially-loaded by a 15’’ low frequency transducer in a bass-reflex enclosure with laminar vents.

The coaxial transducer arrangement and its ellipsoid waveguide produces a 40° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. As a result, X15 HiQ boasts an exceptional immunity to feedback in stage monitoring situations.

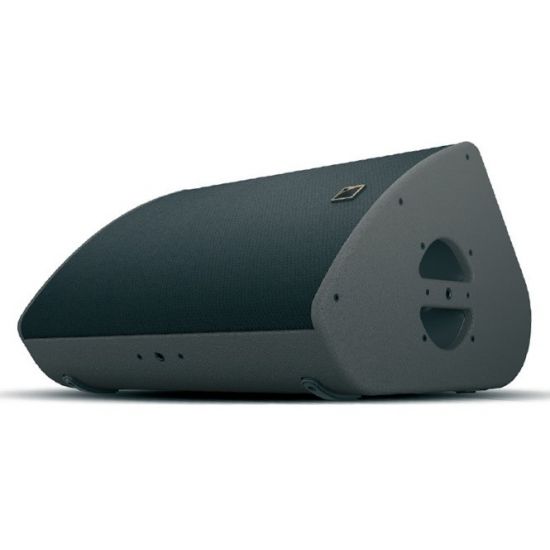

The X15 HiQ provides a stage monitoring angle setting of 35° with regard to vertical or 55° thanks to its built-in risers. With a cabinet combining the properties of birch and beech plywood, X15 HiQ low weight and elegance makes for an easy integration into the set. Ergonomic handles for a solid grip and efficient handling. For special narrow fill applications, the X15 HiQ can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.

The amplified controllers ensure the advanced crossover functions, time alignment, linearization and L-Drive protection of the transducers.

Description: Active 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
Usable bandwidth (-10 dB): 55 Hz - 20 kHz ([X15] preset)
Maximum SPL: 138 DB([X15] preset)
Nominal directivity: Vertical: 60°
Horizontal: 40°
Monitoring angle: 35° without risers
55° with risers
Transducers: LF: 1 x 15" neodymium, bass-reflex, laminar vents
HF: 1 x 3" neodymium compression driver, ellipsoid waveguide
Nominal impedance: LF: 8 Ω
HF: 8 Ω
Connectors: IN: SpeakON®
LINK: SpeakON®
Rigging and handling: 2 x handles
DIN580-compatible M8 threaded insert
4 x M10 threaded inserts
2 x 35 mm pole sockets
Weight (net): 21 kg / 46.2 lbs
Cabinet: First grade Baltic birch and beech plywood
Finish: Dark grey brown Pantone® 426C
Custom RAL® code on special order
IP: IP43
