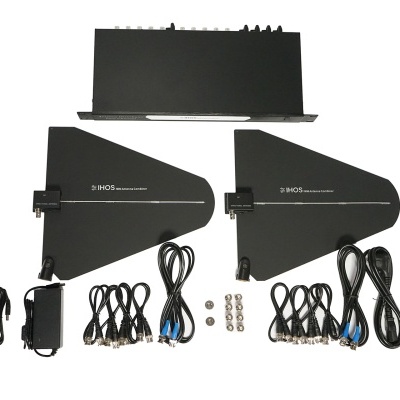

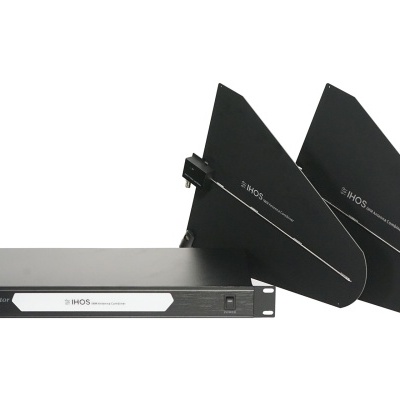

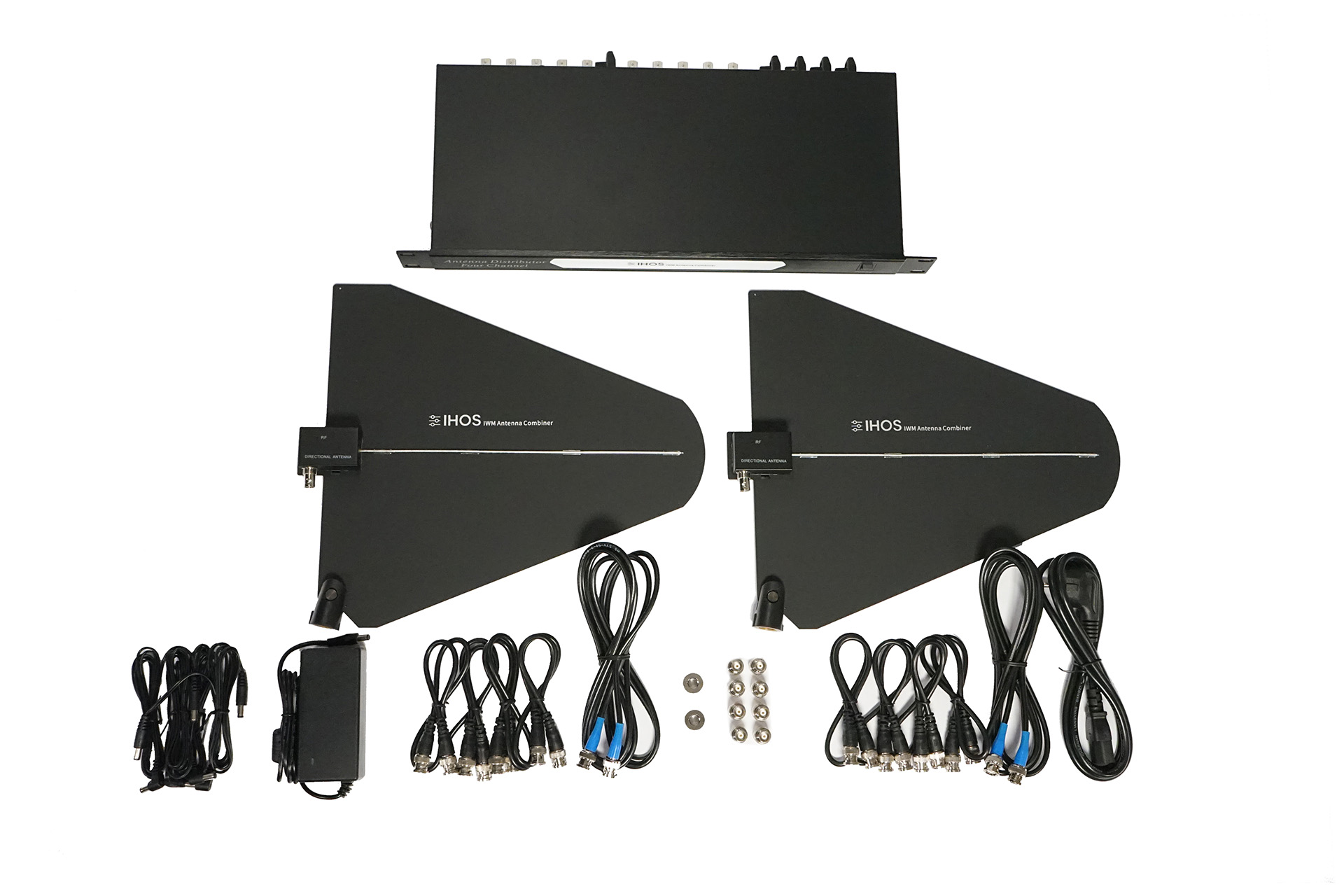

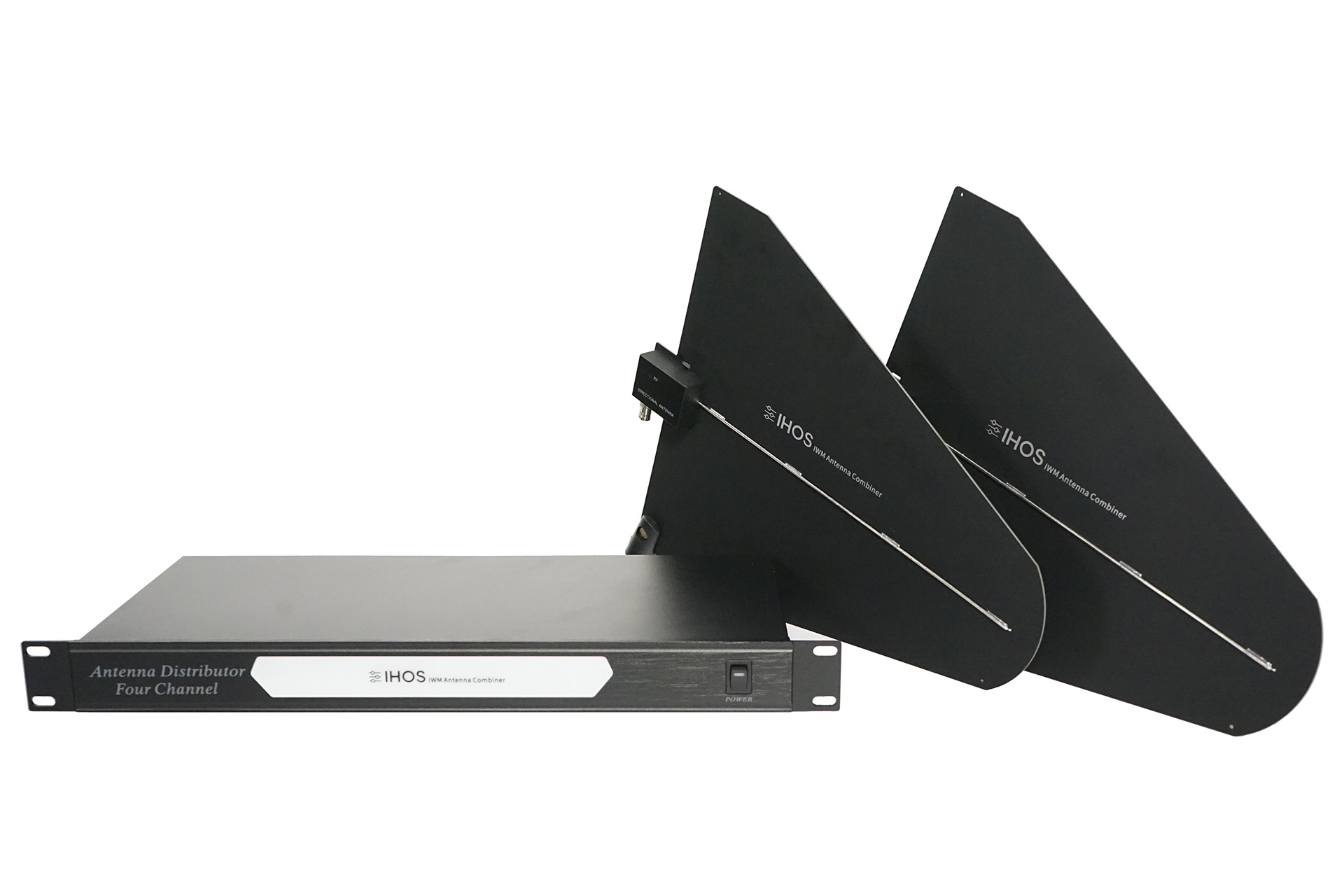

IWM Antenna Combiner

Wireless microphones 4 channel Antenna distributor device, operating frequency 500Mhz-999Mhz, LPDA antennas, maximun 10dB gain, working voltage 8VDC,

Technical Specifications
Directional antenna:

Antenna type: Log periodic dipole array (LPDA).
The working frequency band: 500 MHz - 1 GHz.
Operating voltage: 8V DC.
Gain: 6dB typical, 10dB maximum.
Impedance: 50Ω.
VSWR: ≤1.7:1
Direction: Oval 180º.
Direction polarity: vertical.
11 wave guides segments.
Fixed right angle BNC jack connection terminal.

Weight: 310 gr.
Dimensions: 348 x 325 x 25 mm.
Antenna structure: glass, copper, copper film coating.

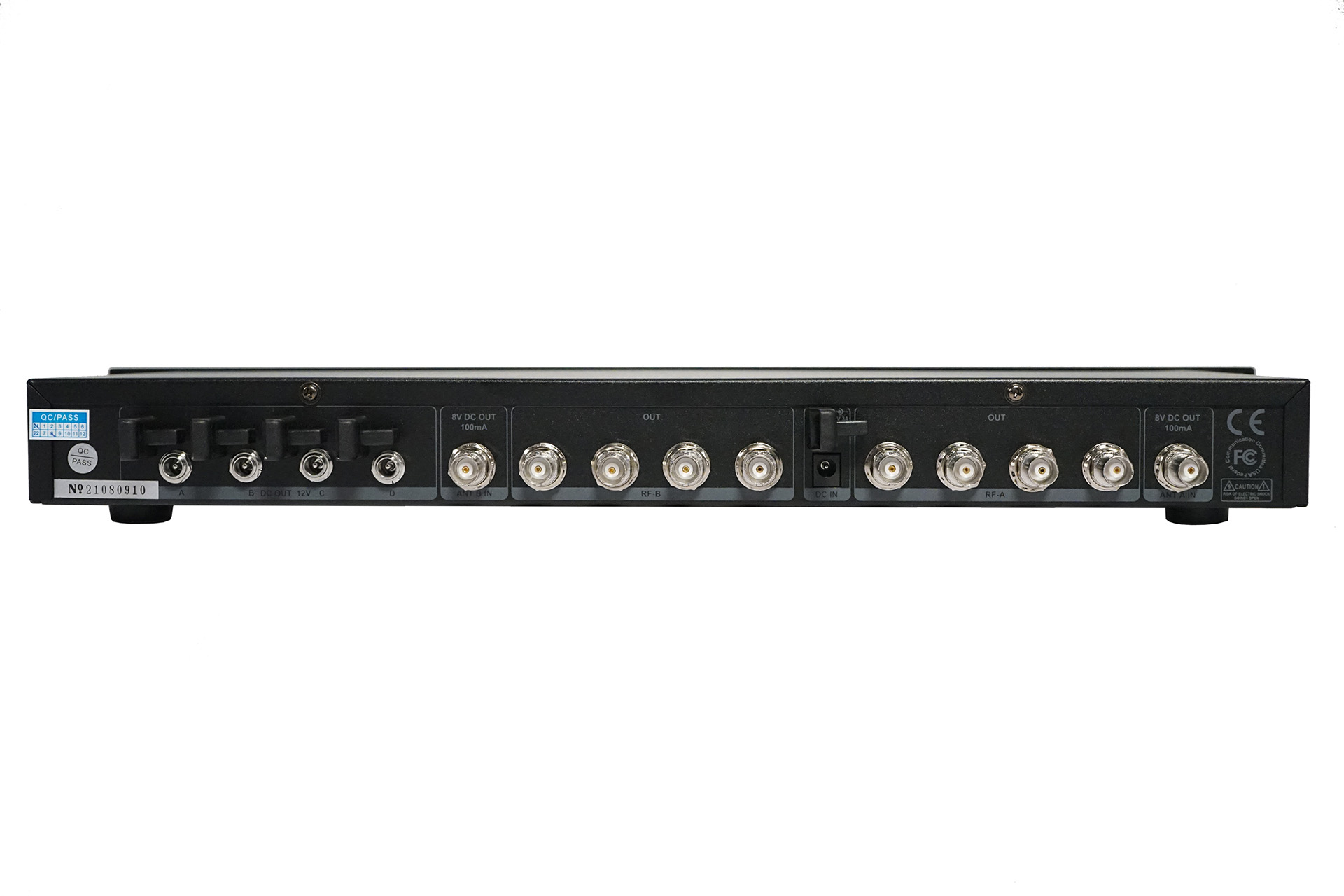

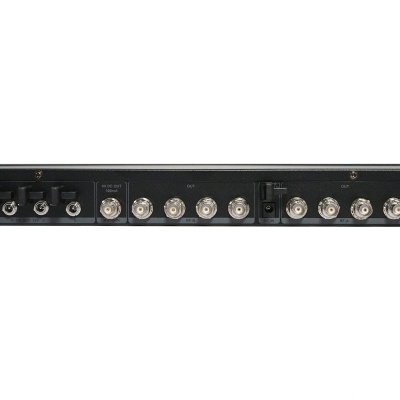

Antenna distribution amplifier:

Antenna distributor: One divided to two / one devided to four.
The working frequency band: 500 MHz - 1 GHz.
Gain: 6 - 10 dB.
Operation voltage: DC 12V 2A / DC 12V 3A.
Maximum power output (external power supply): DC 12V 800 mA.
