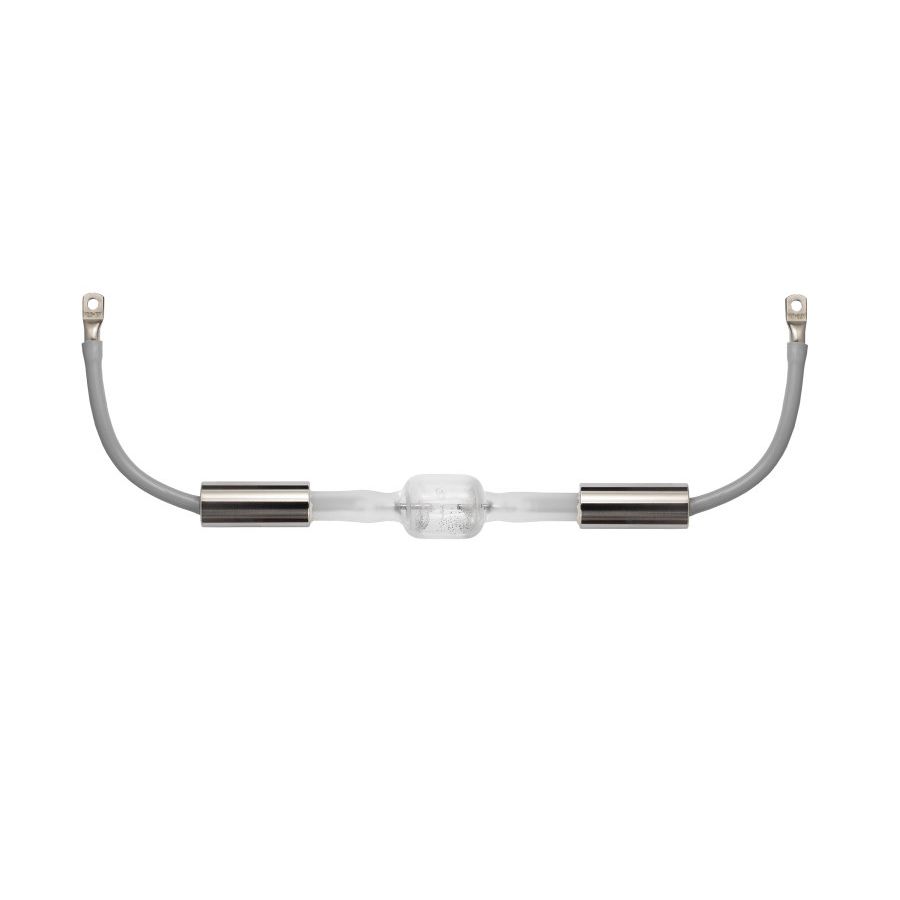

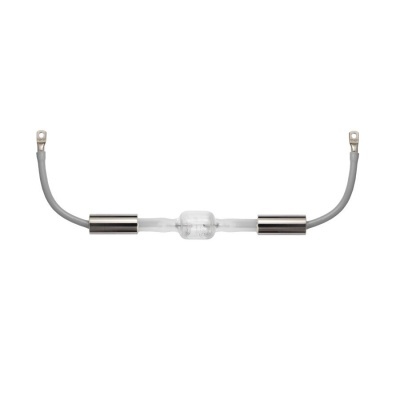

Osram - HTI 4000W/DE VS1
SKU: OHTI40000
Osram - HTI - 4000W
Product family benefits
High luminance
High luminous efficacy and efficiency
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, HTI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Electrical data
Nominal wattage: 4000.00 W
Nominal voltage: 105 V
Lamp voltage: 115 V
Nominal current: 38.0 A
Photometrical data
Nominal luminous flux: 360000 lm
Luminance: 35000 cd/cm²
Color temperature: 6300 K
Color rendering index Ra: 90
Dimensions & weight
Diameter: 40.0 mm
Length: 270.0 mm
Light center length (LCL): 140.0 mm
Lifespan
Lifespan: 500 h
Additional product data
Base (standard designation): S25.5
Capabilities
Burning position: Other
| Brand | Osram |
|---|
