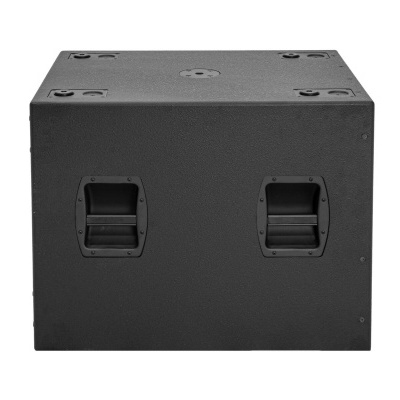

PSSO KX-181A Subwoofer, active, DSP

Active 18" PA bassreflex subwoofer, 1400 W RMS

Active PA subwoofer for touring applications and permanent installations
Versatile setup options with the KX top speakers and specially tuned presets
Endfire and cardioid array configurations possible
Digital signal processor
DSP presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
The device is cooled by temperature-controlled fan

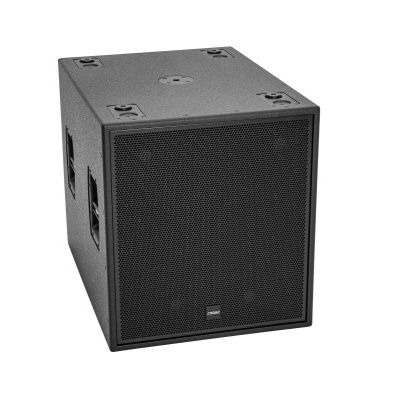

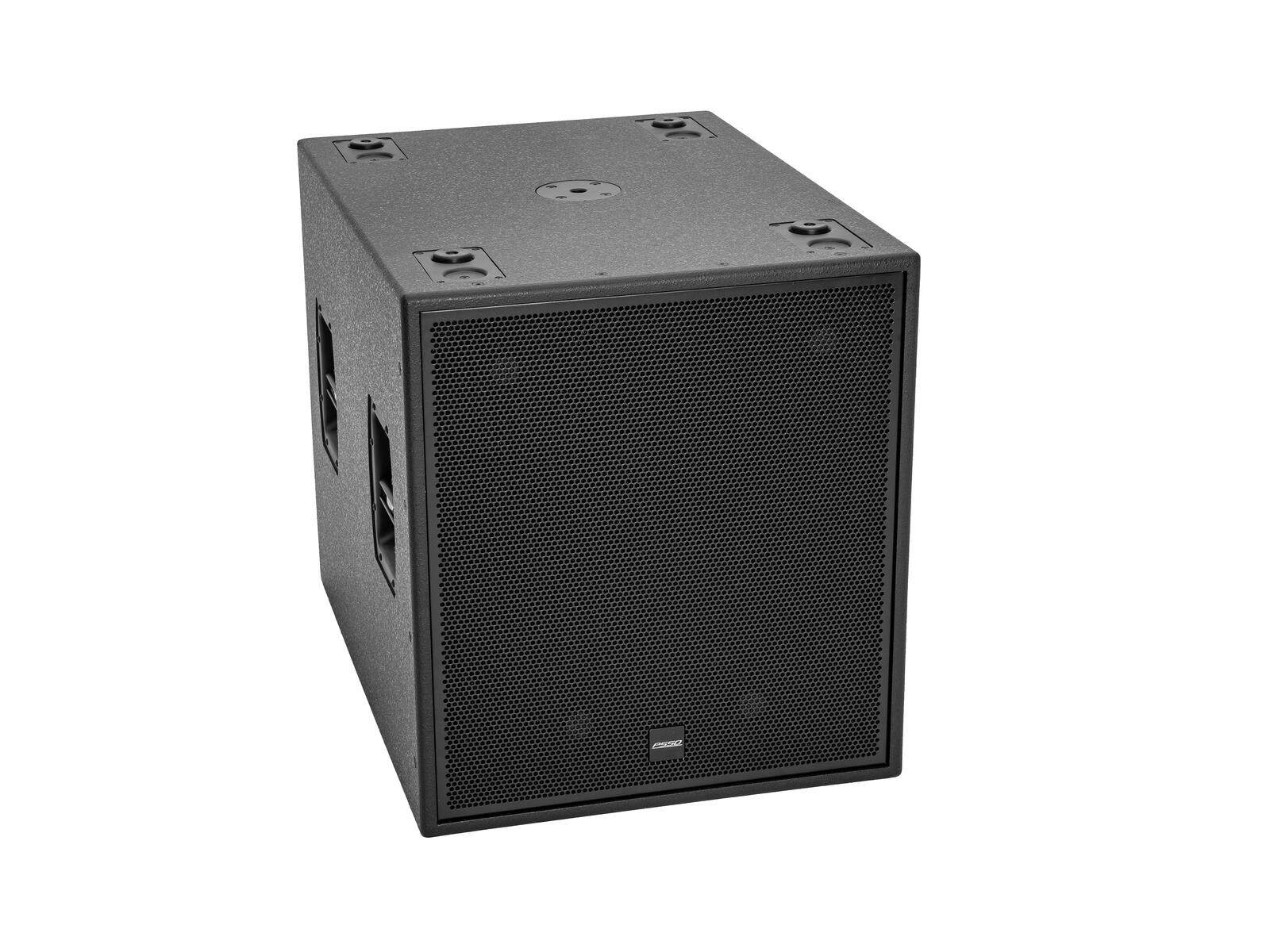

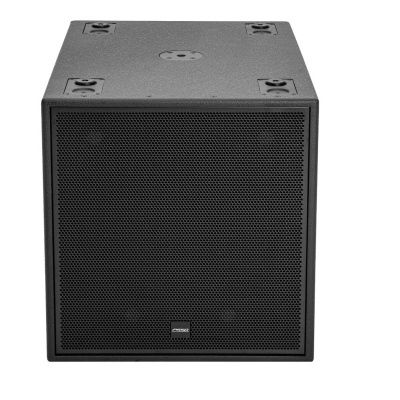

Black metal grille with acoustic foam
4 Rugged carrying handles
Mains input and output for power linking up to 4 units
Package contents

1 x bass, 1 x power cord, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
1800 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Device fuse:
5 x 20 mm, F 8 A fuse replaceable
Power:
1400W RMS
Peak: 2800W
Frequency range:
30 - 400 Hz
Max. SPL:
134 dB
DSP:
Digital signal processor
DSP presets:
80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
Cooling:
1 x temperature-controlled fan
Attachment system:

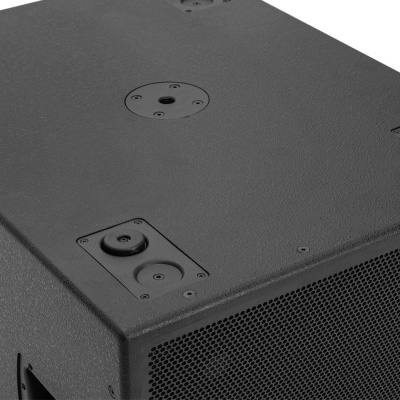

M20 thread
Circuitry:
Class D
Control elements:

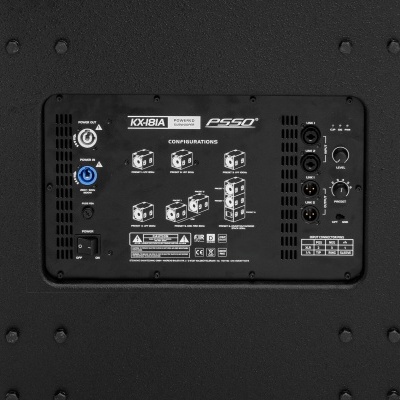

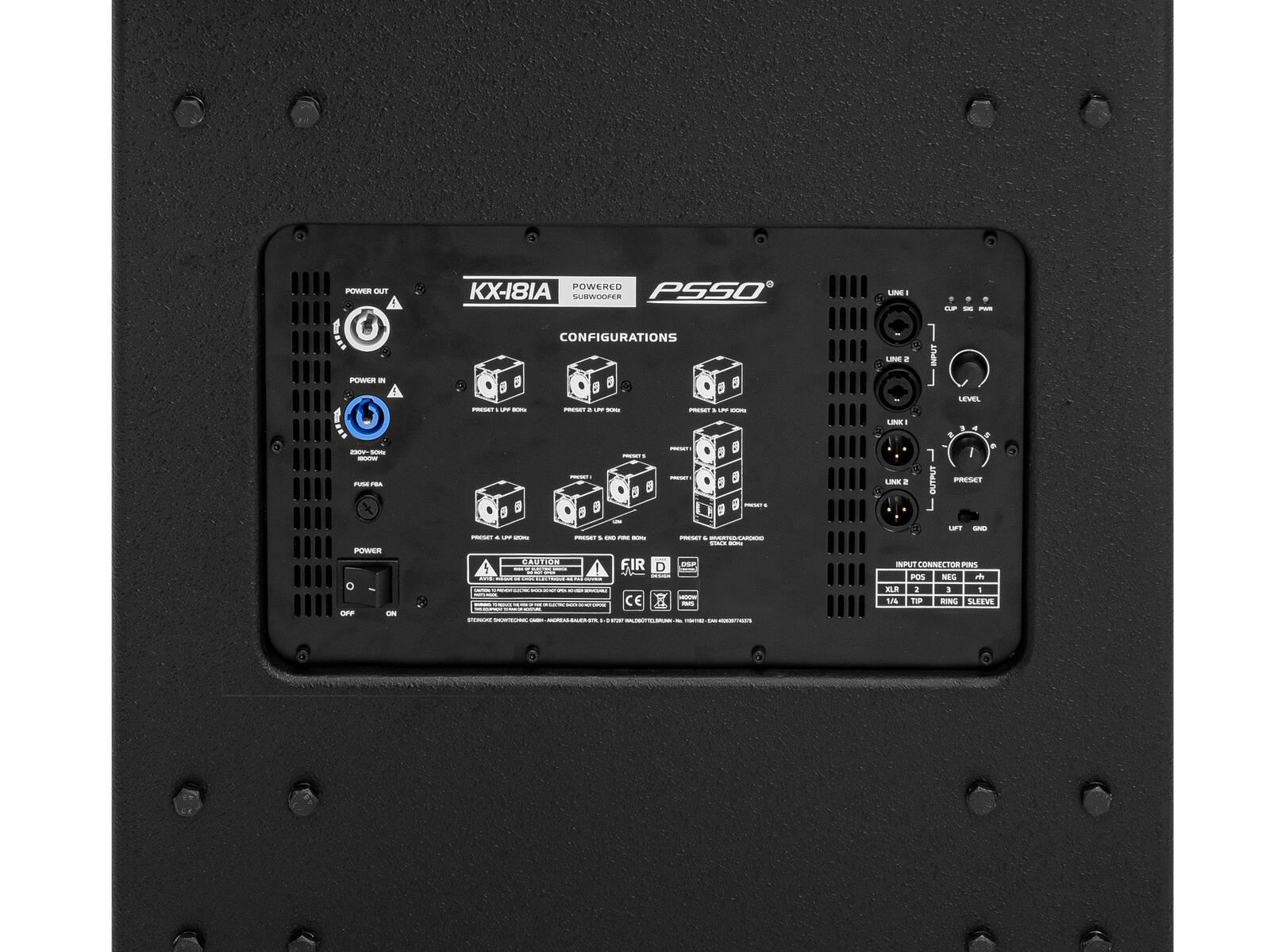

Power switch, groundlift selector, level control, DSP preset switch
Controls:
Overheat; short-circuit; DC voltage; limiter
Status LED:
Power, signal, clip

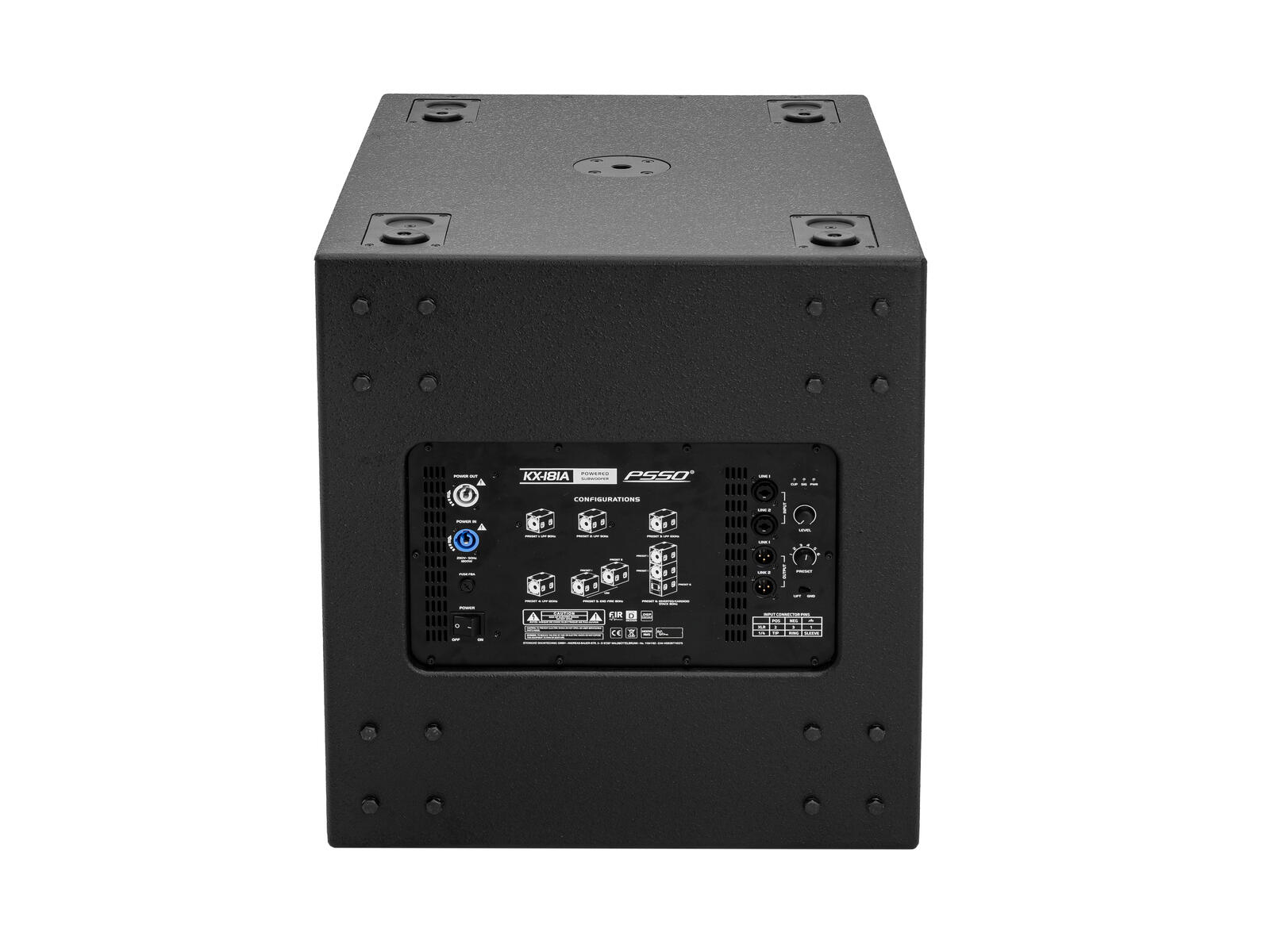

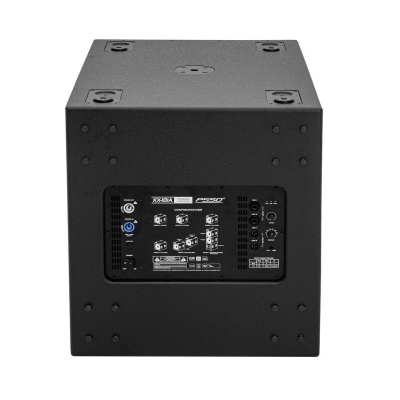

Connections:
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 2 x 3-pin XLR (M) mounting version
Speaker:

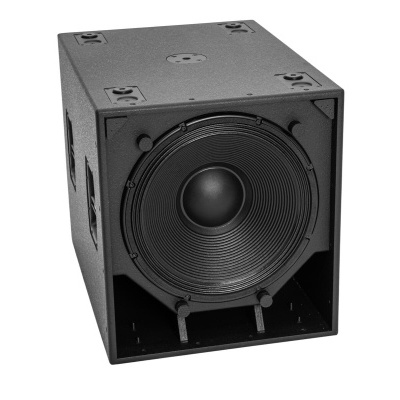

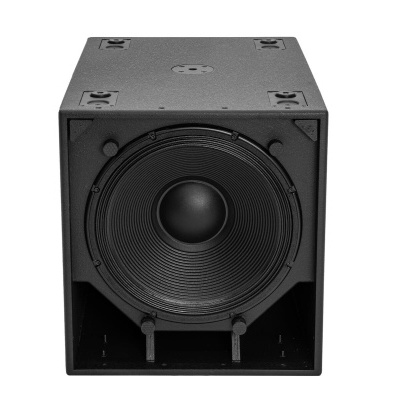

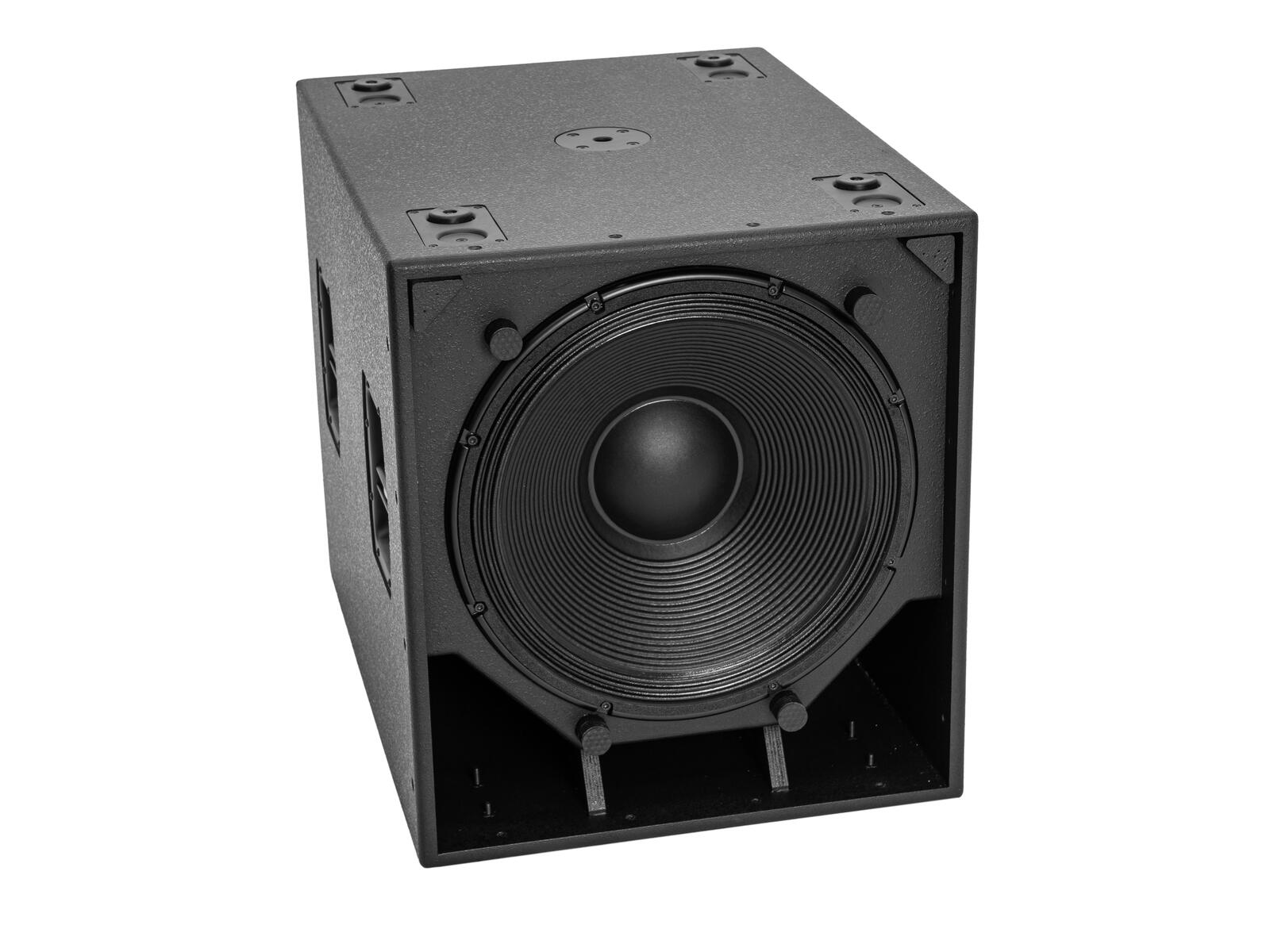

1 x woofer 18" with ferrit magnet
Basket material: aluminum
Conematerial: cardboard/paper
Voice coil woofer in/out wound 4"
Type of speaker:
Subwoofer
Type of construction:
Vented
Carrying handle:
4 pc/pcs
Material:
Baltic birch plywood, 18 mm
Color:
Black, matte
Dimensions:
Width: 56 cm
Depth: 76 cm
Height: 62,8 cm
Weight:
53,25 kg
