Shure - AD2/K9N - G56 (470-636 MHz)

Shure - AD2/K9N - G56 (470-636 MHz)

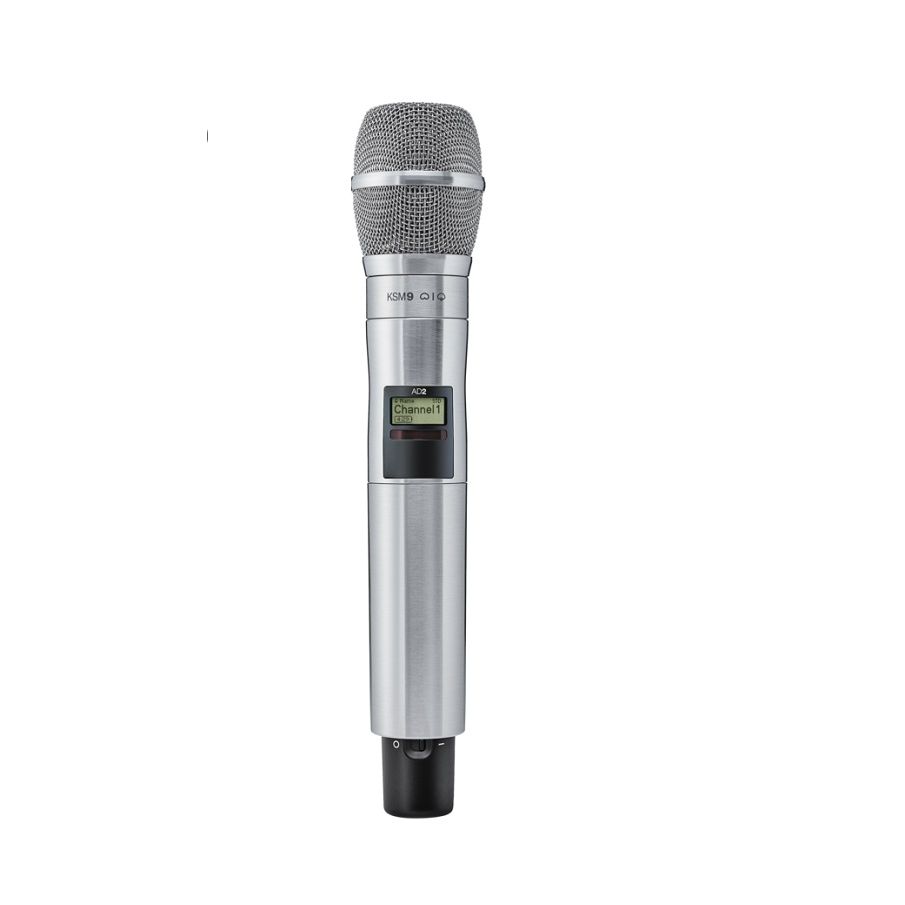

The AD2/KSM9 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD2/KSM9 puts professional-quality wireless digital audio within reach.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

Encryption-enabled, secure transmission
Frequency and power lockout
Rugged metal construction in black or nickel finish
External contacts for docked charging
AA or SB900A Li-ion rechargeable batteries
Backlit LCD with easy-to-navigate menu and controls
Low-profile, lockable power switch<
Available cartridges: KSM8, KSM9HS, Beta® 87A/87C, Beta® 58, SM58®, VP68

Mic Offset Range –12 to 21 dB (in 3 dB steps)
Battery Type Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime
@ 10 mW : Shure SB900A: up to 9 hours
Alkaline: 8 hours: See Battery Runtime Chart
Dimensions: 256 mm × 51 mm (10.1 in. × 2.0 in.) L × D
Weight: 340 g (12.0 oz.), without batteries
Housing Cast: aluminum
Audio Input

Configuration: Unbalanced
Maximum Input Level
1 kHz at 1% THD   145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF Input

Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Axient Digital Proprietary
Power 2 mW, 10 mW, 35 mW
See Frequency Range and Ouput Power table, varies by region
